Blending Degrader demo

author: Shuang Liang

This notebook demonstrate the use of rail.creation.degradation.unrec_bl_model, which uses Friends of Friends to finds sources close to each other and merge them into unrecognized blends

Note: If you’re planning to run this in a notebook, you may want to use interactive mode instead. See Blending_Degrader.ipynb in the interactive_examples/creation_examples/ folder for a version of this notebook in interactive mode.

from rail.creation.degraders.unrec_bl_model import UnrecBlModel

from rail.core.data import PqHandle
from rail.core.stage import RailStage

import tables_io
import matplotlib.pyplot as plt
import pandas as pd, numpy as np

Create a random catalog with ugrizy+YJHF bands as the the true input

data = np.random.normal(24, 3, size = (1000,13))
data[:, 0] = np.random.uniform(low=0, high=0.03, size=1000)
data[:, 1] = np.random.uniform(low=0, high=0.03, size=1000)
data[:, 2] = np.random.uniform(low=0, high=2, size=1000)

data_df = pd.DataFrame(data=data,    # values
            columns=['ra', 'dec', 'z_true', 'u', 'g', 'r', 'i', 'z', 'y', 'Y', 'J', 'H', 'F'])
data_truth = data_df

#data_df.to_parquet('bl_test.pq')

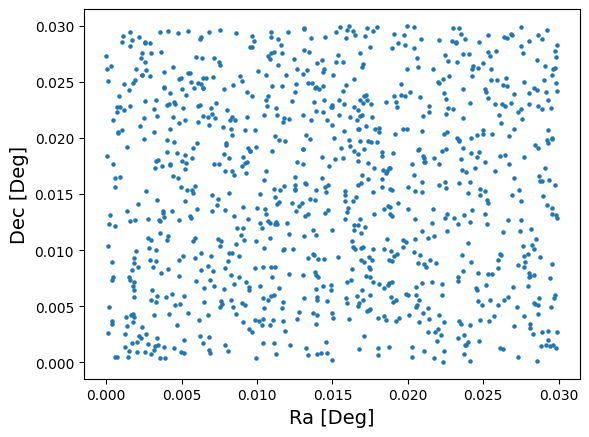

plt.scatter(data_truth['ra'], data_truth['dec'], s=5)
plt.xlabel("Ra [Deg]", fontsize=14)
plt.ylabel("Dec [Deg]", fontsize=14)
plt.show()

The blending model

## model configuration; linking length is in arcsecs

lsst_zp_dict = {'u':12.65, 'g':14.69, 'r':14.56, 'i': 14.38, 'z':13.99, 'y': 13.02}
blModel = UnrecBlModel.make_stage(name='unrec_bl_model', ra_label='ra', dec_label='dec', linking_lengths=1.0, \
                                  bands='ugrizy', zp_dict=lsst_zp_dict,
                                  ref_band = 'i', redshift_col = 'z_true')
blModel.get_config_dict()

{'output_mode': 'default',
 'seed': 12345,
 'ra_label': 'ra',
 'dec_label': 'dec',
 'linking_lengths': 1.0,
 'bands': ['u', 'g', 'r', 'i', 'z', 'y'],
 'zp_dict': {'u': 12.65,
  'g': 14.69,
  'r': 14.56,
  'i': 14.38,
  'z': 13.99,
  'y': 13.02},
 'ref_band': 'i',
 'redshift_col': 'z_true',
 'match_size': False,
 'match_shape': False,
 'obj_size': 'obj_size',
 'a': 'semi_major',
 'b': 'semi_minor',
 'theta': 'orientation',
 'name': 'unrec_bl_model',
 'config': None}

# run the model

outputs = blModel(data_truth)

samples_w_bl = outputs['output'].data
component_ind = outputs['compInd'].data

Inserting handle into data store.  input: None, unrec_bl_model

Inserting handle into data store.  output_unrec_bl_model: inprogress_output_unrec_bl_model.pq, unrec_bl_model
Inserting handle into data store.  compInd_unrec_bl_model: inprogress_compInd_unrec_bl_model.pq, unrec_bl_model

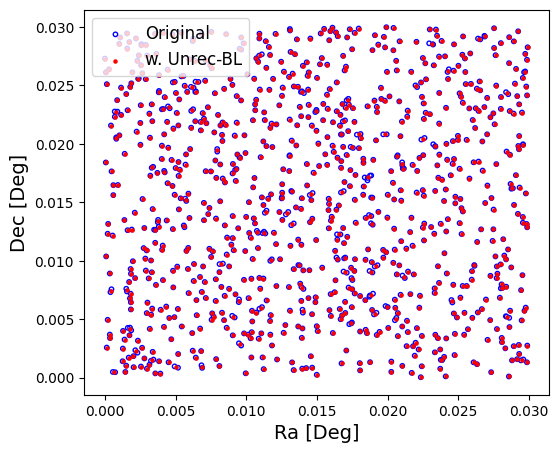

fig, ax = plt.subplots(figsize=(6, 5), dpi=100)

ax.scatter(data_truth['ra'],   data_truth['dec'],   s=10, facecolors='none', edgecolors='b', label='Original')
ax.scatter(samples_w_bl['ra'], samples_w_bl['dec'], s=5, c='r', label='w. Unrec-BL')

ax.legend(loc=2, fontsize=12)
ax.set_xlabel("Ra [Deg]", fontsize=14)
ax.set_ylabel("Dec [Deg]", fontsize=14)

plt.show()

b = 'i'

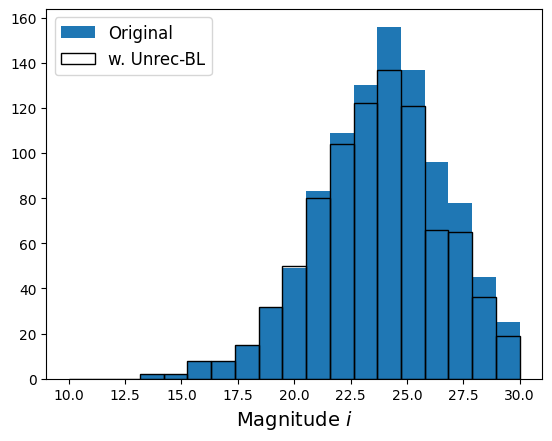

plt.hist(data_truth[b], bins=np.linspace(10, 30, 20), label='Original')
plt.hist(samples_w_bl[b], bins=np.linspace(10, 30, 20),  fill=False, label='w. Unrec-BL')

plt.xlabel(fr'Magnitude ${b}$', fontsize=14)
plt.legend(fontsize=12)
plt.show()

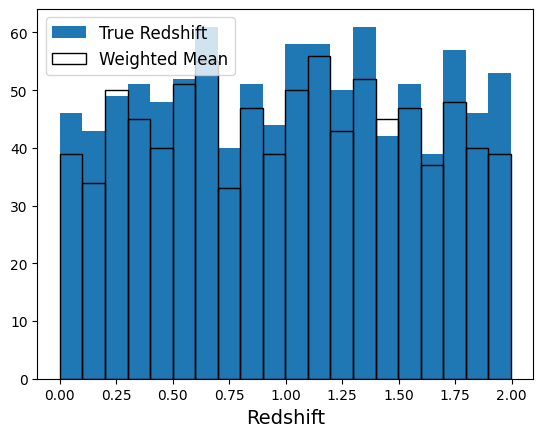

plt.hist(data_truth['z_true'], bins=20, label='True Redshift')
plt.hist(samples_w_bl['z_weighted'], bins=20,  fill=False, label='Weighted Mean')

plt.xlabel(fr'Redshift', fontsize=14)
plt.legend(fontsize=12)
plt.show()

Study one BL case

## find a source with more than 1 truth component

group_size = 1
while group_size==1:

    rand_ind = np.random.randint(len(samples_w_bl))
    this_bl = samples_w_bl.iloc[rand_ind]
    group_id = this_bl['group_id']

    mask = (component_ind['group_id'] == group_id)
    FoF_group = component_ind[mask]
    group_size = len(FoF_group)

truth_comp = data_truth.iloc[FoF_group.index]

print('Truth RA / Blended RA:')
print(truth_comp['ra'].to_numpy(), '/', this_bl['ra'])
print("")

print('Truth DEC / Blended DEC:')
print(truth_comp['dec'].to_numpy(), '/', this_bl['dec'])
print("")

for b in 'ugrizy':
    print(f'Truth mag {b} / Blended mag {b}:')
    print(truth_comp[b].to_numpy(), '/', this_bl[b])
    print("")

Truth RA / Blended RA:
[0.00357412 0.00348535] / 0.003529734983230458

Truth DEC / Blended DEC:
[0.01264202 0.01266107] / 0.012651547249423124

Truth mag u / Blended mag u:
[28.10142205 23.57702231] / 23.560325990224207

Truth mag g / Blended mag g:
[24.24114653 20.36388096] / 20.333766078825235

Truth mag r / Blended mag r:
[28.49662201 27.58977635] / 27.19857594436904

Truth mag i / Blended mag i:
[24.43269344 22.59963414] / 22.41549254868804

Truth mag z / Blended mag z:
[26.02245461 25.6402048 ] / 25.06201878468314

Truth mag y / Blended mag y:
[22.25834012 28.63517167] / 22.255289545709527

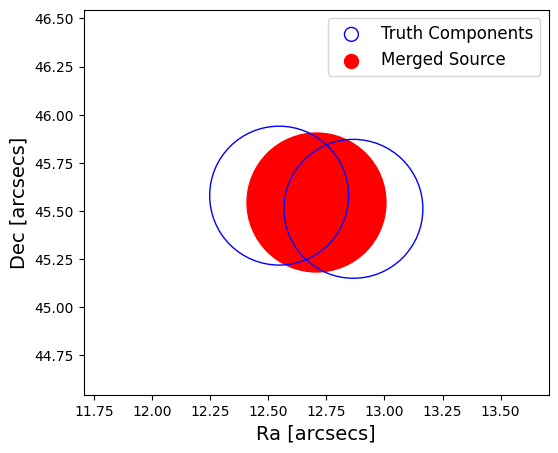

fig, ax = plt.subplots(figsize=(6, 5), dpi=100)

ax.scatter(this_bl['ra']*3600, this_bl['dec']*3600, s=1e4, c='r')
ax.scatter(truth_comp['ra']*3600, truth_comp['dec']*3600, s=1e4, facecolors='none', edgecolors='b')

ax.scatter([], [], s=1e2, facecolors='none', edgecolors='b', label='Truth Components')
ax.scatter([], [], s=1e2, c='r', label='Merged Source')

fig_size = 1   ## in arcsecs
ax.set_xlim(this_bl['ra']*3600-fig_size, this_bl['ra']*3600+fig_size)
ax.set_ylim(this_bl['dec']*3600-fig_size, this_bl['dec']*3600+fig_size)

ax.legend(fontsize=12)
ax.set_xlabel("Ra [arcsecs]", fontsize=14)
ax.set_ylabel("Dec [arcsecs]", fontsize=14)

plt.show()
