Blending Degrader demo

Author: Shuang Liang

Last run successfully: Feb 9, 2026

This notebook demonstrate the use of rail.creation.degradation.unrec_bl_model, which uses Friends of Friends to finds sources close to each other and merge them into unrecognized blends

Note: If you’re interested in running this in pipeline mode, see 06_Blending_Degrader.ipynb in the pipeline_examples/creation_examples/ folder.

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from rail.interactive.creation.degraders import unrec_bl_model

Install FSPS with the following commands:
pip uninstall fsps
git clone --recursive https://github.com/dfm/python-fsps.git
cd python-fsps
python -m pip install .
export SPS_HOME=$(pwd)/src/fsps/libfsps

LEPHAREDIR is being set to the default cache directory which is being created at:
/home/runner/.cache/lephare/data
More than 1Gb may be written there.
LEPHAREWORK is being set to the default cache directory:
/home/runner/.cache/lephare/work

A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.

If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.

Traceback (most recent call last):  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 196, in _run_module_as_main
    return _run_code(code, main_globals, None,
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 86, in _run_code
    exec(code, run_globals)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel_launcher.py", line 18, in <module>
    app.launch_new_instance()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/traitlets/config/application.py", line 1082, in launch_instance
    app.start()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelapp.py", line 758, in start
    self.io_loop.start()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/tornado/platform/asyncio.py", line 211, in start
    self.asyncio_loop.run_forever()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 603, in run_forever
    self._run_once()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 1909, in _run_once
    handle._run()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/events.py", line 80, in _run
    self._context.run(self._callback, *self._args)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/utils.py", line 71, in preserve_context
    return await f(*args, **kwargs)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 621, in shell_main
    await self.dispatch_shell(msg, subshell_id=subshell_id)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 478, in dispatch_shell
    await result
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 372, in execute_request
    await super().execute_request(stream, ident, parent)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 834, in execute_request
    reply_content = await reply_content
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 464, in do_execute
    res = shell.run_cell(
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/zmqshell.py", line 663, in run_cell
    return super().run_cell(*args, **kwargs)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3077, in run_cell
    result = self._run_cell(
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3132, in _run_cell
    result = runner(coro)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/async_helpers.py", line 128, in _pseudo_sync_runner
    coro.send(None)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3336, in run_cell_async
    has_raised = await self.run_ast_nodes(code_ast.body, cell_name,
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3519, in run_ast_nodes
    if await self.run_code(code, result, async_=asy):
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3579, in run_code
    exec(code_obj, self.user_global_ns, self.user_ns)
  File "/tmp/ipykernel_3944/561744479.py", line 4, in <module>
    from rail.interactive.creation.degraders import unrec_bl_model
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/__init__.py", line 3, in <module>
    from . import calib, creation, estimation, evaluation, tools
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/calib/__init__.py", line 3, in <module>
    from rail.utils.interactive.initialize_utils import _initialize_interactive_module
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/initialize_utils.py", line 17, in <module>
    from rail.utils.interactive.base_utils import (
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/base_utils.py", line 10, in <module>
    rail.stages.import_and_attach_all(silent=True)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/stages/__init__.py", line 74, in import_and_attach_all
    RailEnv.import_all_packages(silent=silent)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/core/introspection.py", line 541, in import_all_packages
    _imported_module = importlib.import_module(pkg)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/importlib/__init__.py", line 126, in import_module
    return _bootstrap._gcd_import(name[level:], package, level)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/som/__init__.py", line 1, in <module>
    from rail.creation.degraders.specz_som import *
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/creation/degraders/specz_som.py", line 15, in <module>
    from somoclu import Somoclu
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/__init__.py", line 11, in <module>
    from .train import Somoclu
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/train.py", line 25, in <module>
    from .somoclu_wrap import train as wrap_train
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/somoclu_wrap.py", line 11, in <module>
    import _somoclu_wrap

---------------------------------------------------------------------------

ImportError                               Traceback (most recent call last)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/numpy/core/_multiarray_umath.py:44, in __getattr__(attr_name)
     39     # Also print the message (with traceback).  This is because old versions
     40     # of NumPy unfortunately set up the import to replace (and hide) the
     41     # error.  The traceback shouldn't be needed, but e.g. pytest plugins
     42     # seem to swallow it and we should be failing anyway...
     43     sys.stderr.write(msg + tb_msg)
---> 44     raise ImportError(msg)
     46 ret = getattr(_multiarray_umath, attr_name, None)
     47 if ret is None:


ImportError:
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.

If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.

Warning: the binary library cannot be imported. You cannot train maps, but you can load and analyze ones that you have already saved.
The problem occurs because either compilation failed when you installed Somoclu or a path is missing from the dependencies when you are trying to import it. Please refer to the documentation to see your options.

Create a random catalog with ugrizy+YJHF bands as the the true input

data = np.random.normal(24, 3, size=(1000, 13))
data[:, 0] = np.random.uniform(low=0, high=0.03, size=1000)
data[:, 1] = np.random.uniform(low=0, high=0.03, size=1000)
data[:, 2] = np.random.uniform(low=0, high=2, size=1000)

data_truth = pd.DataFrame(
    data=data,  # values
    columns=["ra", "dec", "z_true", "u", "g", "r", "i", "z", "y", "Y", "J", "H", "F"],
)

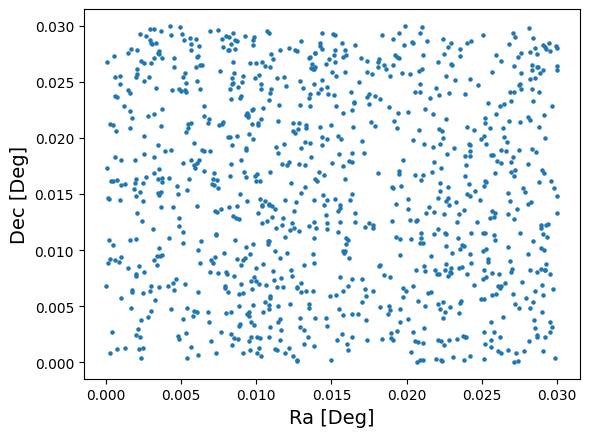

plt.scatter(data_truth["ra"], data_truth["dec"], s=5)
plt.xlabel("Ra [Deg]", fontsize=14)
plt.ylabel("Dec [Deg]", fontsize=14)
plt.show()

The blending model

## model configuration; linking length is in arcsecs
lsst_zp_dict = {"u": 12.65, "g": 14.69, "r": 14.56, "i": 14.38, "z": 13.99, "y": 13.02}

outputs = unrec_bl_model.unrec_bl_model(
    sample=data_truth,
    ra_label="ra",
    dec_label="dec",
    linking_lengths=1.0,
    bands="ugrizy",
    zp_dict=lsst_zp_dict,
    ref_band="i",
    redshift_col="z_true",
)

Inserting handle into data store.  input: None, UnrecBlModel

Inserting handle into data store.  output: inprogress_output.pq, UnrecBlModel
Inserting handle into data store.  compInd: inprogress_compInd.pq, UnrecBlModel

samples_w_bl = outputs["output"]
component_ind = outputs["compInd"]

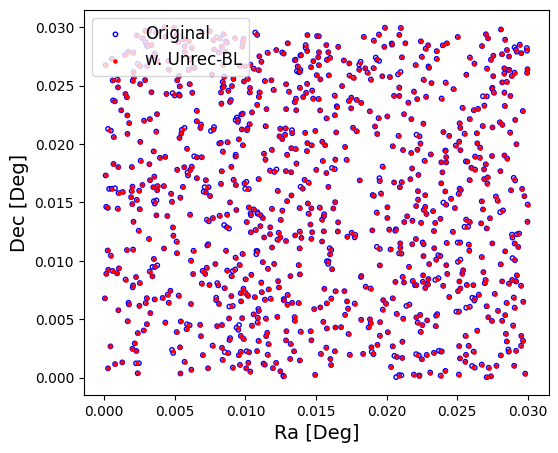

fig, ax = plt.subplots(figsize=(6, 5), dpi=100)

ax.scatter(
    data_truth["ra"],
    data_truth["dec"],
    s=10,
    facecolors="none",
    edgecolors="b",
    label="Original",
)
ax.scatter(samples_w_bl["ra"], samples_w_bl["dec"], s=5, c="r", label="w. Unrec-BL")

ax.legend(loc=2, fontsize=12)
ax.set_xlabel("Ra [Deg]", fontsize=14)
ax.set_ylabel("Dec [Deg]", fontsize=14)

plt.show()

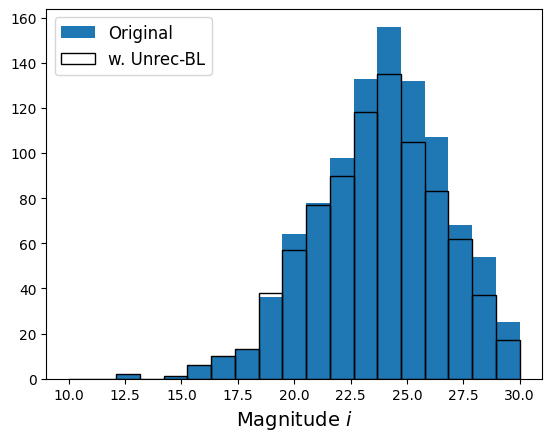

b = "i"
plt.hist(data_truth[b], bins=np.linspace(10, 30, 20), label="Original")
plt.hist(samples_w_bl[b], bins=np.linspace(10, 30, 20), fill=False, label="w. Unrec-BL")

plt.xlabel(rf"Magnitude ${b}$", fontsize=14)
plt.legend(fontsize=12)
plt.show()

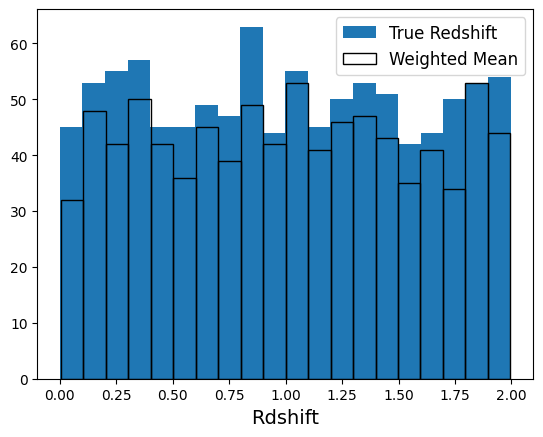

plt.hist(data_truth["z_true"], bins=20, label="True Redshift")
plt.hist(samples_w_bl["z_weighted"], bins=20, fill=False, label="Weighted Mean")

plt.xlabel(rf"Rdshift", fontsize=14)
plt.legend(fontsize=12)
plt.show()

Study one BL case

## find a source with more than 1 truth component

group_size = 1
while group_size == 1:

    rand_ind = np.random.randint(len(samples_w_bl))
    this_bl = samples_w_bl.iloc[rand_ind]
    group_id = this_bl["group_id"]

    mask = component_ind["group_id"] == group_id
    FoF_group = component_ind[mask]
    group_size = len(FoF_group)

truth_comp = data_truth.iloc[FoF_group.index]

print("Truth RA / Blended RA:")
print(truth_comp["ra"].to_numpy(), "/", this_bl["ra"])
print("")

print("Truth DEC / Blended DEC:")
print(truth_comp["dec"].to_numpy(), "/", this_bl["dec"])
print("")

for b in "ugrizy":
    print(f"Truth mag {b} / Blended mag {b}:")
    print(truth_comp[b].to_numpy(), "/", this_bl[b])
    print("")

Truth RA / Blended RA:
[0.02055759 0.0207356 ] / 0.020646595970373504

Truth DEC / Blended DEC:
[0.00186854 0.0017674 ] / 0.001817973771607988

Truth mag u / Blended mag u:
[30.58348211 25.00291662] / 24.99657457522477

Truth mag g / Blended mag g:
[22.17324087 27.68289005] / 22.166472090686657

Truth mag r / Blended mag r:
[27.06636648 22.44669642] / 22.431392881303196

Truth mag i / Blended mag i:
[25.81536091 16.12683861] / 16.126693967557916

Truth mag z / Blended mag z:
[25.8537866  25.48192996] / 24.89944073092105

Truth mag y / Blended mag y:
[21.91278071 26.17006343] / 21.89147271573876

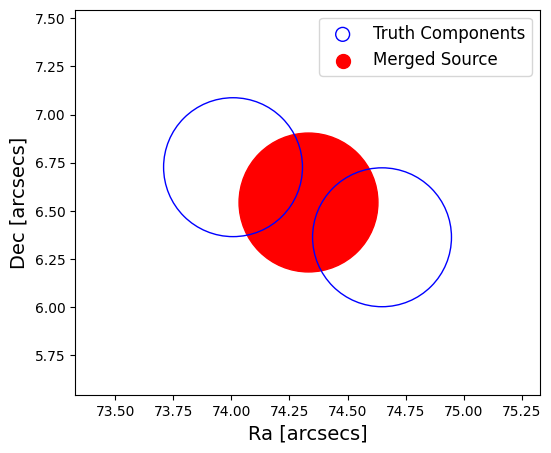

fig, ax = plt.subplots(figsize=(6, 5), dpi=100)

ax.scatter(this_bl["ra"] * 3600, this_bl["dec"] * 3600, s=1e4, c="r")
ax.scatter(
    truth_comp["ra"] * 3600,
    truth_comp["dec"] * 3600,
    s=1e4,
    facecolors="none",
    edgecolors="b",
)

ax.scatter([], [], s=1e2, facecolors="none", edgecolors="b", label="Truth Components")
ax.scatter([], [], s=1e2, c="r", label="Merged Source")

fig_size = 1  ## in arcsecs
ax.set_xlim(this_bl["ra"] * 3600 - fig_size, this_bl["ra"] * 3600 + fig_size)
ax.set_ylim(this_bl["dec"] * 3600 - fig_size, this_bl["dec"] * 3600 + fig_size)

ax.legend(fontsize=12)
ax.set_xlabel("Ra [arcsecs]", fontsize=14)
ax.set_ylabel("Dec [arcsecs]", fontsize=14)

plt.show()
