GridSelection Degrader to Emulate HSC Training Samples
last run successfully: Feb 9, 2026
The GridSelection degrader can be used to model the spectroscopic success rates in training sets based on real data. Given a 2-dimensional grid of spec-z success ratio as a function of two variables (often magnitude or color), the degrader will draw the appropriate fraction of samples from the input data and return a sample with incompleteness modeled. An additional redshift cut can also be applied, where all redshifts above the cutoff are also removed from the sample.
ratio_file: the name
of the file containing the 2-dimensional grid of spec-z success -
random_seed: random seed to feed to numpy for reproducibility -
settings_file: path to the pickled file containing settings that
define the 2-dimensional grid. There is a mechanism to make cuts
either on a single column from the input data, or a difference
(i.e. either a magnitude or a color as a difference of two
magnitudes). The parameters in the settings file are: - x_band_1:
column name for the x-axis variable from ratios grid.x_band_2: [optional] column name for the second x-axis variable.
If x_band_2 is set to ’’ then it is assumed that the x-axis is
parameterized in terms of x_band_1. If x_band_2 is not ’’ then the
x-axis is compared against (x_band_1 - x_band_2) -y_band_1 and
y_band_2: analagous to x_band_1 and x_band_2 but for the
y-axis - x_limits and y_limits: 2-element lists with the
minimum and maximum values for the grid, e.g. [13, 26] if the limits
in the x-axis are between magnitudes of 13 and 26.In this quick notebook we’ll create a grid of mock galaxies on the same
grid on which the HyperSuprimeCam Survey (HSC) spectroscopic success has
been parameterized by Irene Moskowitz (and available in the rail_base
repository at rail_base/src/rail/examples_data/creation_data/), and

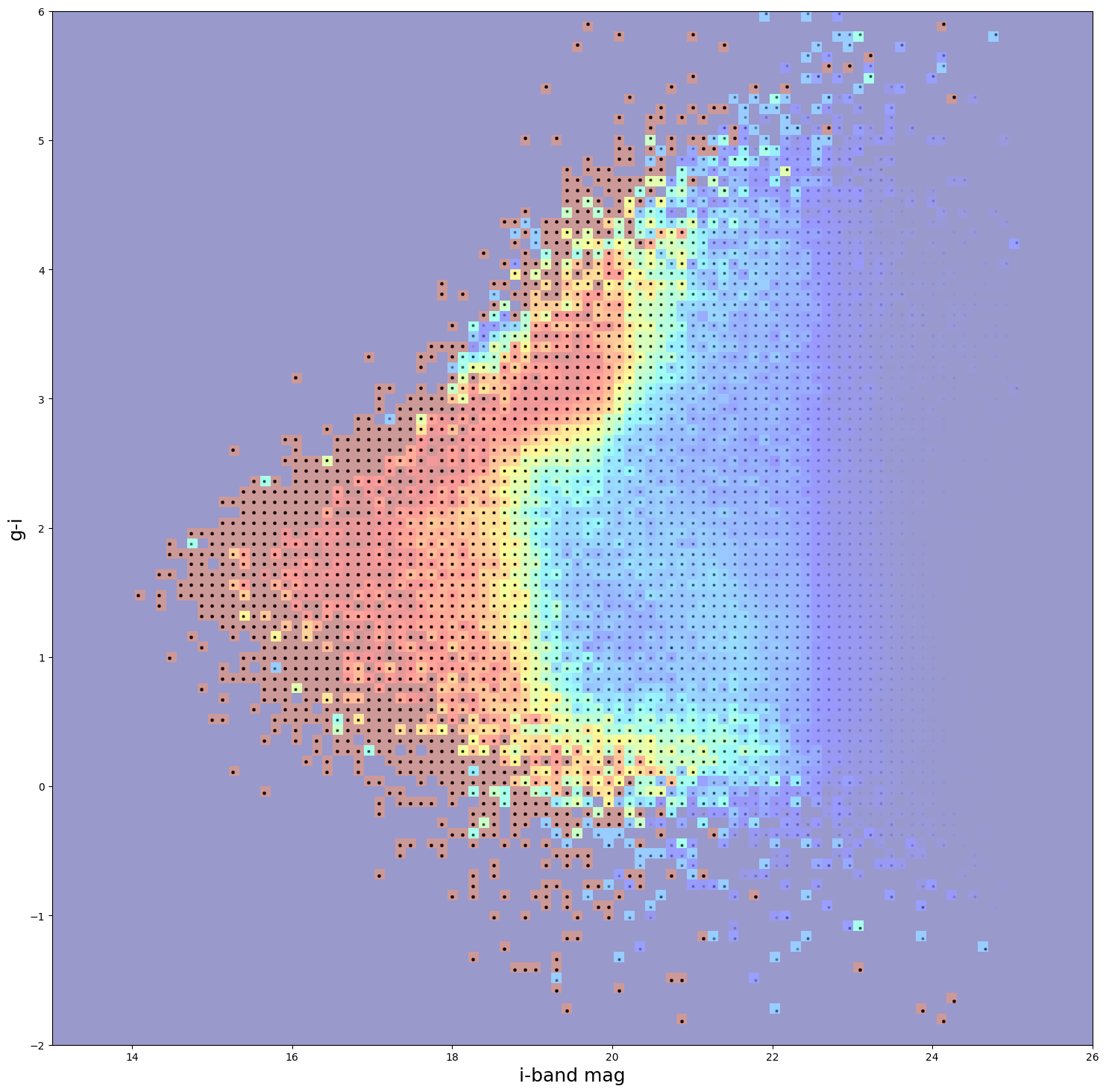

plot the success rate to visualize the spectroscopic success rate for
HSC.
Note: If you’re interested in running this in pipeline mode, see
03_GridSelection_for_HSC.ipynb
in the pipeline_examples/creation_examples/ folder.
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import rail.interactive as ri
import tables_io
from rail.utils.path_utils import find_rail_file
Install FSPS with the following commands:
pip uninstall fsps
git clone --recursive https://github.com/dfm/python-fsps.git
cd python-fsps
python -m pip install .
export SPS_HOME=$(pwd)/src/fsps/libfsps
LEPHAREDIR is being set to the default cache directory:
/home/runner/.cache/lephare/data
More than 1Gb may be written there.
LEPHAREWORK is being set to the default cache directory:
/home/runner/.cache/lephare/work
Default work cache is already linked.
This is linked to the run directory:
/home/runner/.cache/lephare/runs/20260601T134643
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.
If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.
Traceback (most recent call last): File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 196, in _run_module_as_main
return _run_code(code, main_globals, None,
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 86, in _run_code
exec(code, run_globals)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel_launcher.py", line 18, in <module>
app.launch_new_instance()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/traitlets/config/application.py", line 1082, in launch_instance
app.start()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelapp.py", line 758, in start
self.io_loop.start()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/tornado/platform/asyncio.py", line 211, in start
self.asyncio_loop.run_forever()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 603, in run_forever
self._run_once()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 1909, in _run_once
handle._run()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/events.py", line 80, in _run
self._context.run(self._callback, *self._args)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/utils.py", line 71, in preserve_context
return await f(*args, **kwargs)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 621, in shell_main
await self.dispatch_shell(msg, subshell_id=subshell_id)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 478, in dispatch_shell
await result
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 372, in execute_request
await super().execute_request(stream, ident, parent)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 834, in execute_request
reply_content = await reply_content
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 464, in do_execute
res = shell.run_cell(
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/zmqshell.py", line 663, in run_cell
return super().run_cell(*args, **kwargs)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3077, in run_cell
result = self._run_cell(
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3132, in _run_cell
result = runner(coro)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/async_helpers.py", line 128, in _pseudo_sync_runner
coro.send(None)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3336, in run_cell_async
has_raised = await self.run_ast_nodes(code_ast.body, cell_name,
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3519, in run_ast_nodes
if await self.run_code(code, result, async_=asy):
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3579, in run_code
exec(code_obj, self.user_global_ns, self.user_ns)
File "/tmp/ipykernel_5591/285264119.py", line 4, in <module>
import rail.interactive as ri
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/__init__.py", line 3, in <module>
from . import calib, creation, estimation, evaluation, tools
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/calib/__init__.py", line 3, in <module>
from rail.utils.interactive.initialize_utils import _initialize_interactive_module
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/initialize_utils.py", line 17, in <module>
from rail.utils.interactive.base_utils import (
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/base_utils.py", line 10, in <module>
rail.stages.import_and_attach_all(silent=True)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/stages/__init__.py", line 74, in import_and_attach_all
RailEnv.import_all_packages(silent=silent)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/core/introspection.py", line 541, in import_all_packages
_imported_module = importlib.import_module(pkg)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/importlib/__init__.py", line 126, in import_module
return _bootstrap._gcd_import(name[level:], package, level)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/som/__init__.py", line 1, in <module>
from rail.creation.degraders.specz_som import *
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/creation/degraders/specz_som.py", line 15, in <module>
from somoclu import Somoclu
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/__init__.py", line 11, in <module>
from .train import Somoclu
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/train.py", line 25, in <module>
from .somoclu_wrap import train as wrap_train
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/somoclu_wrap.py", line 11, in <module>
import _somoclu_wrap
---------------------------------------------------------------------------
ImportError Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/numpy/core/_multiarray_umath.py:44, in __getattr__(attr_name)
39 # Also print the message (with traceback). This is because old versions
40 # of NumPy unfortunately set up the import to replace (and hide) the
41 # error. The traceback shouldn't be needed, but e.g. pytest plugins
42 # seem to swallow it and we should be failing anyway...
43 sys.stderr.write(msg + tb_msg)
---> 44 raise ImportError(msg)
46 ret = getattr(_multiarray_umath, attr_name, None)
47 if ret is None:
ImportError:
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.
If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.
Warning: the binary library cannot be imported. You cannot train maps, but you can load and analyze ones that you have already saved.
The problem occurs because either compilation failed when you installed Somoclu or a path is missing from the dependencies when you are trying to import it. Please refer to the documentation to see your options.
Let’s make a grid of fake data matching the grid used by HSC. The 2D
grid of spec-z success in this case is parameterized in terms of g-z
color vs i-band magnitude, with g-z between [-2, 6] and
i-band magnitude spanning [13, 26]. Let’s generate 100 identical
objects in each of the 100x100=10,000 grid cells, for a total of
1,000,000 mock galaxies. The only quantities that we need are g,
i, z magnitudes and a redshift that we can just set to a
random number between 1 and 2.5. The only thing that we really need is
consistent g-z and i-mag values, so we can just set g to 20.0 in all
circumstances.
gridgz, gridi = np.meshgrid(
np.linspace(-1.98, 5.98, 100), np.linspace(13.0325, 25.9675, 100)
)
i = gridi.flatten()
gz = gridgz.flatten()
g = np.full_like(i, 20.0, dtype=np.double)
z = g - gz
redshift = np.round(np.random.uniform(size=len(i)) * 2.5, 2)
mockdict = {}
for label, item in zip(["i", "gz", "g", "z", "redshift"], [i, gz, g, z, redshift]):
mockdict[f"{label}"] = np.repeat(item, 100).flatten()
df = pd.DataFrame(mockdict)
df.head()
| i | gz | g | z | redshift | |
|---|---|---|---|---|---|
| 0 | 13.0325 | -1.98 | 20.0 | 21.98 | 0.59 |
| 1 | 13.0325 | -1.98 | 20.0 | 21.98 | 0.59 |
| 2 | 13.0325 | -1.98 | 20.0 | 21.98 | 0.59 |
| 3 | 13.0325 | -1.98 | 20.0 | 21.98 | 0.59 |
| 4 | 13.0325 | -1.98 | 20.0 | 21.98 | 0.59 |
Now, let’s import the GridSelection degrader and set up the config dict
parameters. We will set a redshift cut of 5.1 so as to not cut any of
our mock galaxies, if you would want a redshift cut, you would simply
change this parameter as desired. There is an optional
color_redshift_cut that scales the number of galaxies kept, we will
turn this off. There is also a percentile_cut that computes
percentiles in redshift of each cell and removes the highest redshift
galaxies, as those are usually the most likely to not be recovered by a
spectroscopic survey. For simplicity, we will set percentile_cut to 100.
to not remove any galaxies with this cut.
The ratio file for HSC is located in the RAIL/examples/creation/data
directory, as we are in RAIL/examples/creation folder with this demo
the paths for the ratio_file and settings_file are set
accordingly.
We will set a random seed for reproducibility, and set the output file to write our incomplete catalog to “test_hsc.pq”.
configdict = dict(
redshift_cut=5.1,
ratio_file=find_rail_file(
"examples_data/creation_data/data/hsc_ratios_and_specz.hdf5"
),
settings_file=find_rail_file(
"examples_data/creation_data/data/HSC_grid_settings.pkl"
),
percentile_cut=100.0,
color_redshift_cut=False,
random_seed=66,
)
Let’s run the code and see how long it takes:
%%time
trim_data = ri.creation.degraders.grid_selection.grid_selection(sample=df, **configdict)
Inserting handle into data store. input: None, GridSelection
Inserting handle into data store. output: inprogress_output.pq, GridSelection
CPU times: user 2.58 s, sys: 102 ms, total: 2.68 s
Wall time: 2.68 s
This took 10.1s on my home computer, not too bad for 4 million mock galaxies.
trim_data["output"].info()
<class 'pandas.core.frame.DataFrame'>
Index: 181866 entries, 84300 to 927791
Data columns (total 9 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 i 181866 non-null float64
1 gz 181866 non-null float64
2 g 181866 non-null float64
3 z 181866 non-null float64
4 redshift 181866 non-null float64
5 x_vals 181866 non-null float64
6 y_vals 181866 non-null float64
7 ratios 181866 non-null float64
8 max_specz 181866 non-null float64
dtypes: float64(9)
memory usage: 13.9 MB
And we see that we’ve kept 625,677 out of the 4,000,000 galaxies in the initial sample, so about 15% of the initial sample. To visualize our cuts, let’s read in the success ratios file and plot our sample overlaid with an alpha of 0.01, that way the strength of the black dot will give a visual indication of how many galaxies in each cell we’ve kept.
# compare to sum of ratios * 100
ratio_file = find_rail_file(
"examples_data/creation_data/data/hsc_ratios_and_specz.hdf5"
)
allrats = tables_io.read(ratio_file)["ratios"]
trim_data["output"]["color"] = trim_data["output"]["g"] - trim_data["output"]["z"]
/tmp/ipykernel_5591/3945432532.py:1: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead
See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
trim_data["output"]["color"] = trim_data["output"]["g"] - trim_data["output"]["z"]
bgr, bi = np.meshgrid(np.linspace(-2, 6, 101), np.linspace(13, 26, 101))
bratios = tables_io.read(
find_rail_file("examples_data/creation_data/data/hsc_ratios_and_specz.hdf5")
)["ratios"]
plt.figure(figsize=(18, 18))
plt.pcolormesh(bi, bgr, bratios.T, cmap="jet", vmin=0, vmax=1, alpha=0.4)
plt.scatter(
trim_data["output"]["i"], trim_data["output"]["color"], s=3, c="k", alpha=0.015
)
plt.xlabel("i-band mag", fontsize=18)
plt.ylabel("g-i", fontsize=18)
Text(0, 0.5, 'g-i')
The colormap shows the HSC ratios and the strenth of the black dots shows how many galaxies were actually kept. We see perfect agreement between our predicted ratios and the actual number of galaxies kept, the degrader is functioning properly, and we see a nice visual representation of the resulting spectroscopic sample incompleteness.
