BPZ Lite Demo

Authors: Sam Schmidt

Last Successfully Run: Feb 9, 2026

This notebook will go through a simple example of running rail_bpz estimate and inform stages with a small set of test data that ships with the RAIL package.

Note: If you’re interested in running this in pipeline mode, see 02_BPZ_lite.ipynb in the pipeline_examples/estimation_examples/ folder.

import pickle

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import rail.interactive as ri
import tables_io
from desc_bpz.prior_from_dict import prior_function
from rail.evaluation.metrics.pointestimates import (
    PointBias,
    PointOutlierRate,
    PointSigmaIQR,
    PointStatsEz,
)
from rail.utils.path_utils import find_rail_file

Install FSPS with the following commands:
pip uninstall fsps
git clone --recursive https://github.com/dfm/python-fsps.git
cd python-fsps
python -m pip install .
export SPS_HOME=$(pwd)/src/fsps/libfsps

LEPHAREDIR is being set to the default cache directory:
/home/runner/.cache/lephare/data
More than 1Gb may be written there.
LEPHAREWORK is being set to the default cache directory:
/home/runner/.cache/lephare/work
Default work cache is already linked.
This is linked to the run directory:
/home/runner/.cache/lephare/runs/20260504T123336

A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.

If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.

Traceback (most recent call last):  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 196, in _run_module_as_main
    return _run_code(code, main_globals, None,
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 86, in _run_code
    exec(code, run_globals)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel_launcher.py", line 18, in <module>
    app.launch_new_instance()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/traitlets/config/application.py", line 1075, in launch_instance
    app.start()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelapp.py", line 758, in start
    self.io_loop.start()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/tornado/platform/asyncio.py", line 211, in start
    self.asyncio_loop.run_forever()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 603, in run_forever
    self._run_once()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 1909, in _run_once
    handle._run()
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/events.py", line 80, in _run
    self._context.run(self._callback, *self._args)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/utils.py", line 71, in preserve_context
    return await f(*args, **kwargs)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 621, in shell_main
    await self.dispatch_shell(msg, subshell_id=subshell_id)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 478, in dispatch_shell
    await result
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 372, in execute_request
    await super().execute_request(stream, ident, parent)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 834, in execute_request
    reply_content = await reply_content
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 464, in do_execute
    res = shell.run_cell(
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/zmqshell.py", line 663, in run_cell
    return super().run_cell(*args, **kwargs)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3077, in run_cell
    result = self._run_cell(
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3132, in _run_cell
    result = runner(coro)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/async_helpers.py", line 128, in _pseudo_sync_runner
    coro.send(None)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3336, in run_cell_async
    has_raised = await self.run_ast_nodes(code_ast.body, cell_name,
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3519, in run_ast_nodes
    if await self.run_code(code, result, async_=asy):
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3579, in run_code
    exec(code_obj, self.user_global_ns, self.user_ns)
  File "/tmp/ipykernel_4959/3472743491.py", line 6, in <module>
    import rail.interactive as ri
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/__init__.py", line 3, in <module>
    from . import calib, creation, estimation, evaluation, tools
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/calib/__init__.py", line 3, in <module>
    from rail.utils.interactive.initialize_utils import _initialize_interactive_module
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/initialize_utils.py", line 17, in <module>
    from rail.utils.interactive.base_utils import (
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/base_utils.py", line 10, in <module>
    rail.stages.import_and_attach_all(silent=True)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/stages/__init__.py", line 74, in import_and_attach_all
    RailEnv.import_all_packages(silent=silent)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/core/introspection.py", line 541, in import_all_packages
    _imported_module = importlib.import_module(pkg)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/importlib/__init__.py", line 126, in import_module
    return _bootstrap._gcd_import(name[level:], package, level)
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/som/__init__.py", line 1, in <module>
    from rail.creation.degraders.specz_som import *
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/creation/degraders/specz_som.py", line 15, in <module>
    from somoclu import Somoclu
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/__init__.py", line 11, in <module>
    from .train import Somoclu
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/train.py", line 25, in <module>
    from .somoclu_wrap import train as wrap_train
  File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/somoclu_wrap.py", line 11, in <module>
    import _somoclu_wrap

---------------------------------------------------------------------------

ImportError                               Traceback (most recent call last)

File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/numpy/core/_multiarray_umath.py:44, in __getattr__(attr_name)
     39     # Also print the message (with traceback).  This is because old versions
     40     # of NumPy unfortunately set up the import to replace (and hide) the
     41     # error.  The traceback shouldn't be needed, but e.g. pytest plugins
     42     # seem to swallow it and we should be failing anyway...
     43     sys.stderr.write(msg + tb_msg)
---> 44     raise ImportError(msg)
     46 ret = getattr(_multiarray_umath, attr_name, None)
     47 if ret is None:


ImportError:
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.

If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.

Warning: the binary library cannot be imported. You cannot train maps, but you can load and analyze ones that you have already saved.
The problem occurs because either compilation failed when you installed Somoclu or a path is missing from the dependencies when you are trying to import it. Please refer to the documentation to see your options.

First, let’s grab the training and test data files that we will use in this example, they are included with RAIL, so we can access their location via the RAILDIR path. Both file contain data drawn from the cosmoDC2_v1.1.4 truth extragalactic catalog generated by DESC with model 10-year-depth magnitude uncertainties. The training data contains roughly 10,000 galaxies, while the test data contains roughly 20,000. Both sets are representative down to a limiting apparent magnitude.

trainFile = find_rail_file("examples_data/testdata/test_dc2_training_9816.hdf5")
testFile = find_rail_file("examples_data/testdata/test_dc2_validation_9816.hdf5")
training_data = tables_io.read(trainFile)
test_data = tables_io.read(testFile)

running BPZliteEstimator with a pre-existing model

BPZ is a template-fitting code that works by calculating the chi^2 value for observed photometry and errors compared with a grid of theoretical photometric fluxes generated from a set of template SEDs at each of a grid of redshift values. These chi^2 values are converted to likelihoods. If desired, a Bayesian prior can be applied that parameterizes the expected distribution of galaxies in terms of both probability of a “broad” SED type as a function of apparent magnitude, and the probability of a galaxy being at a certain redshift given broad SED type and apparent magnitude. The product of this prior and the likelihoods is then summed over the SED types to return a marginalized posterior PDF, or p(z) for each galaxy. If the config option no_prior is set to True, then no prior is applied, and BPZliteEstimator will return a likelihood for each galaxy rather than a posterior.

bpz-1.99.3, the code written by Dan Coe and Narcisso Benitez and available at https://www.stsci.edu/~dcoe/BPZ/, uses a default set of eight SED templates: four templates from Coleman, Wu, & Weedman (CWW, one Elliptical, two Spirals Sbc and Scd, and one Irregular), two starburst (WB) templates, and two very blue star forming templates generated using Bruzual & Charlot models with very young ages of 25Myr and 5Myr. The original BPZ paper, Benitez(2000) computed a “default” prior fit to data from the Hubble Deep Field North (HDFN). A pickle file with these parameters and the default SEDs are included with RAIL, named CWW_HDFN_prior.pkl. You can run BPZliteEstimator with these default templates and priors without doing any training, the equivalent of “running BPZ with the defaults” had you downloaded bpz-1.99.3 and run it. Note, however, that the cosmoDC2_v1.1.4 dataset has a population of galaxy SEDs that are fairly different from the “default” CWWSB templates, and the prior distributions do not exactly match. So, you will get results that do not look particularly good. We will demonstrate that use case here, though, as it is the most simple way to run the code out of the box (and illustrates the dangers of grabbing code and running it out of the box):

We need to set up a RAIL stage for the default run of BPZ, including specifying the location of the model pickle file, which is located included in the rail_base package and can be found relative to RAILDIR at rail/examples_data/estimation_data/data/CWW_HDFN_prior.pkl.

rail_bpz attempts to set “sensible” defaults for an expected run on Rubin data, including for the magnitude and magnitude error column names. While the defaults match the names in our small example datasets, we will set the configuration parameters explicitly so that users can see how this is done. The names of the magnitudes are read in as a list by the configuration parameter bands, while the magnitude errors the parameter err_bands.

BPZ works by creating synthetic expected magnitudes by convolving the SEDs with filter curves, so rail_bpz needs to know which filter files to use. The names of the filters are specified by the filter_list configuration parameter, and should consist of a list of strings containing the names of the files, minus the “.sed” suffix. Also note that these files must be located in the SED directory where BPZ expects to find all filters. This is defined, relative to RAILDIR as: RAILDIR + '/rail/examples_data/estimation_data/data/FILTER'

Also note that the bands, err_bands, and filter_list lists are required to be of the same length, and must be in the same order, usually ascending in wavelength, i.e. all three would be ordered u,g,r,i,z,y for Rubin data.

Let’s make lists containing the expected bands, errors, and filter names. Our file contains magnitudes with names of the form “mag_{band}lsst” and magnitude errors named like ”mag_err{band}lsst”. This example data is from the DESC DC2 simulations, and our default filter bandpass curves haves names of the form ”DC2LSST{band}.sed”.

bands = ["u", "g", "r", "i", "z", "y"]
lsst_bands = []
lsst_errs = []
lsst_filts = []
for band in bands:
    lsst_bands.append(f"mag_{band}_lsst")
    lsst_errs.append(f"mag_err_{band}_lsst")
    lsst_filts.append(f"DC2LSST_{band}")
print(lsst_bands)
print(lsst_filts)

['mag_u_lsst', 'mag_g_lsst', 'mag_r_lsst', 'mag_i_lsst', 'mag_z_lsst', 'mag_y_lsst']
['DC2LSST_u', 'DC2LSST_g', 'DC2LSST_r', 'DC2LSST_i', 'DC2LSST_z', 'DC2LSST_y']

Now, let’s set up a dictionary of configuration parameters and set up to run the estimator.

Let’s run the estimate stage, if this is the first run of BPZliteEstimator or BPZliteInformer, you may see a bunch of output lines as DESC_BPZ creates the synthetic photometry “AB” files for the SEDs and filters.

hdfnfile = find_rail_file("examples_data/estimation_data/data/CWW_HDFN_prior.pkl")
default_dict = dict(
    hdf5_groupname="photometry",
    bands=lsst_bands,
    err_bands=lsst_errs,
    filter_list=lsst_filts,
    prior_band="mag_i_lsst",
    no_prior=False,
)

default_result = ri.estimation.algos.bpz_lite.bpz_lite_estimator(
    input_data=test_data, model=hdfnfile, **default_dict
)

Inserting handle into data store.  input: None, BPZliteEstimator
Inserting handle into data store.  model: /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/CWW_HDFN_prior.pkl, BPZliteEstimator
  Generating new AB file El_B2004a.DC2LSST_u.AB....
El_B2004a DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/El_B2004a.DC2LSST_u.AB
  Generating new AB file El_B2004a.DC2LSST_g.AB....
El_B2004a DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/El_B2004a.DC2LSST_g.AB
  Generating new AB file El_B2004a.DC2LSST_r.AB....
El_B2004a DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/El_B2004a.DC2LSST_r.AB
  Generating new AB file El_B2004a.DC2LSST_i.AB....
El_B2004a DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/El_B2004a.DC2LSST_i.AB
  Generating new AB file El_B2004a.DC2LSST_z.AB....
El_B2004a DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/El_B2004a.DC2LSST_z.AB
  Generating new AB file El_B2004a.DC2LSST_y.AB....
El_B2004a DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/El_B2004a.DC2LSST_y.AB
  Generating new AB file Sbc_B2004a.DC2LSST_u.AB....
Sbc_B2004a DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sbc_B2004a.DC2LSST_u.AB
  Generating new AB file Sbc_B2004a.DC2LSST_g.AB....
Sbc_B2004a DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sbc_B2004a.DC2LSST_g.AB
  Generating new AB file Sbc_B2004a.DC2LSST_r.AB....
Sbc_B2004a DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sbc_B2004a.DC2LSST_r.AB
  Generating new AB file Sbc_B2004a.DC2LSST_i.AB....
Sbc_B2004a DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sbc_B2004a.DC2LSST_i.AB
  Generating new AB file Sbc_B2004a.DC2LSST_z.AB....
Sbc_B2004a DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sbc_B2004a.DC2LSST_z.AB
  Generating new AB file Sbc_B2004a.DC2LSST_y.AB....
Sbc_B2004a DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sbc_B2004a.DC2LSST_y.AB
  Generating new AB file Scd_B2004a.DC2LSST_u.AB....
Scd_B2004a DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Scd_B2004a.DC2LSST_u.AB
  Generating new AB file Scd_B2004a.DC2LSST_g.AB....
Scd_B2004a DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Scd_B2004a.DC2LSST_g.AB
  Generating new AB file Scd_B2004a.DC2LSST_r.AB....
Scd_B2004a DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Scd_B2004a.DC2LSST_r.AB
  Generating new AB file Scd_B2004a.DC2LSST_i.AB....
Scd_B2004a DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Scd_B2004a.DC2LSST_i.AB
  Generating new AB file Scd_B2004a.DC2LSST_z.AB....
Scd_B2004a DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Scd_B2004a.DC2LSST_z.AB
  Generating new AB file Scd_B2004a.DC2LSST_y.AB....
Scd_B2004a DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Scd_B2004a.DC2LSST_y.AB
  Generating new AB file Im_B2004a.DC2LSST_u.AB....
Im_B2004a DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Im_B2004a.DC2LSST_u.AB
  Generating new AB file Im_B2004a.DC2LSST_g.AB....
Im_B2004a DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Im_B2004a.DC2LSST_g.AB
  Generating new AB file Im_B2004a.DC2LSST_r.AB....
Im_B2004a DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Im_B2004a.DC2LSST_r.AB
  Generating new AB file Im_B2004a.DC2LSST_i.AB....
Im_B2004a DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Im_B2004a.DC2LSST_i.AB
  Generating new AB file Im_B2004a.DC2LSST_z.AB....
Im_B2004a DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Im_B2004a.DC2LSST_z.AB
  Generating new AB file Im_B2004a.DC2LSST_y.AB....
Im_B2004a DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Im_B2004a.DC2LSST_y.AB
  Generating new AB file SB3_B2004a.DC2LSST_u.AB....
SB3_B2004a DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_B2004a.DC2LSST_u.AB
  Generating new AB file SB3_B2004a.DC2LSST_g.AB....
SB3_B2004a DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_B2004a.DC2LSST_g.AB
  Generating new AB file SB3_B2004a.DC2LSST_r.AB....
SB3_B2004a DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_B2004a.DC2LSST_r.AB
  Generating new AB file SB3_B2004a.DC2LSST_i.AB....
SB3_B2004a DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_B2004a.DC2LSST_i.AB
  Generating new AB file SB3_B2004a.DC2LSST_z.AB....
SB3_B2004a DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_B2004a.DC2LSST_z.AB
  Generating new AB file SB3_B2004a.DC2LSST_y.AB....
SB3_B2004a DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_B2004a.DC2LSST_y.AB
  Generating new AB file SB2_B2004a.DC2LSST_u.AB....
SB2_B2004a DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_B2004a.DC2LSST_u.AB
  Generating new AB file SB2_B2004a.DC2LSST_g.AB....
SB2_B2004a DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_B2004a.DC2LSST_g.AB
  Generating new AB file SB2_B2004a.DC2LSST_r.AB....
SB2_B2004a DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_B2004a.DC2LSST_r.AB
  Generating new AB file SB2_B2004a.DC2LSST_i.AB....
SB2_B2004a DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_B2004a.DC2LSST_i.AB
  Generating new AB file SB2_B2004a.DC2LSST_z.AB....
SB2_B2004a DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_B2004a.DC2LSST_z.AB
  Generating new AB file SB2_B2004a.DC2LSST_y.AB....
SB2_B2004a DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_B2004a.DC2LSST_y.AB
  Generating new AB file ssp_25Myr_z008.DC2LSST_u.AB....
ssp_25Myr_z008 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_25Myr_z008.DC2LSST_u.AB
  Generating new AB file ssp_25Myr_z008.DC2LSST_g.AB....
ssp_25Myr_z008 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_25Myr_z008.DC2LSST_g.AB
  Generating new AB file ssp_25Myr_z008.DC2LSST_r.AB....
ssp_25Myr_z008 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_25Myr_z008.DC2LSST_r.AB
  Generating new AB file ssp_25Myr_z008.DC2LSST_i.AB....
ssp_25Myr_z008 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_25Myr_z008.DC2LSST_i.AB
  Generating new AB file ssp_25Myr_z008.DC2LSST_z.AB....
ssp_25Myr_z008 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_25Myr_z008.DC2LSST_z.AB
  Generating new AB file ssp_25Myr_z008.DC2LSST_y.AB....
ssp_25Myr_z008 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_25Myr_z008.DC2LSST_y.AB
  Generating new AB file ssp_5Myr_z008.DC2LSST_u.AB....
ssp_5Myr_z008 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_5Myr_z008.DC2LSST_u.AB
  Generating new AB file ssp_5Myr_z008.DC2LSST_g.AB....
ssp_5Myr_z008 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_5Myr_z008.DC2LSST_g.AB
  Generating new AB file ssp_5Myr_z008.DC2LSST_r.AB....
ssp_5Myr_z008 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_5Myr_z008.DC2LSST_r.AB
  Generating new AB file ssp_5Myr_z008.DC2LSST_i.AB....
ssp_5Myr_z008 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_5Myr_z008.DC2LSST_i.AB
  Generating new AB file ssp_5Myr_z008.DC2LSST_z.AB....
ssp_5Myr_z008 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_5Myr_z008.DC2LSST_z.AB
  Generating new AB file ssp_5Myr_z008.DC2LSST_y.AB....
ssp_5Myr_z008 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/ssp_5Myr_z008.DC2LSST_y.AB
Process 0 running estimator on chunk 0 - 20,449

/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/estimation/algos/bpz_lite.py:568: RuntimeWarning: overflow encountered in cast
  flux_err[unobserved] = 1e108

Inserting handle into data store.  output: inprogress_output.hdf5, BPZliteEstimator

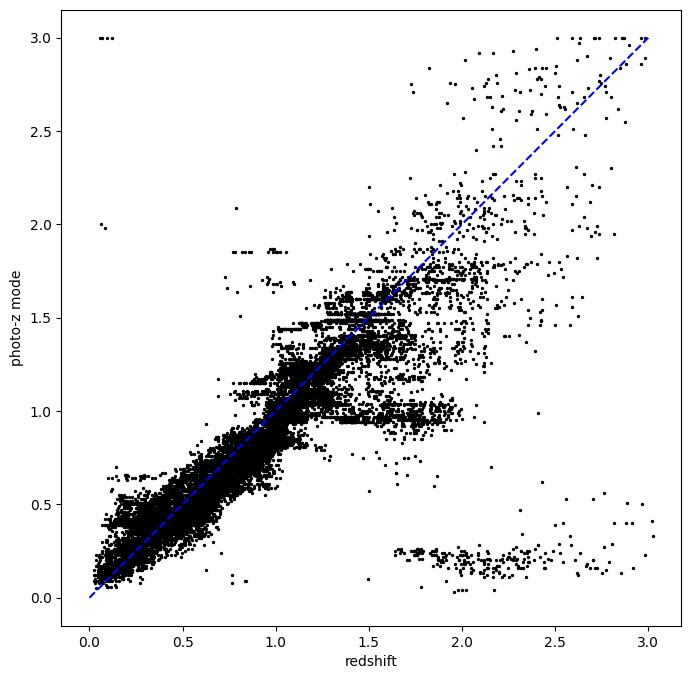

Plot the mode of these “default run” PDFs against the true redshifts, we have the true redshifts stored in the test_data in the DataStore, and the modes are stored as ancillary data in the results that we just produced:

sz = test_data["photometry"]["redshift"]

plt.figure(figsize=(8, 8))
plt.scatter(
    sz,
    default_result["output"].ancil["zmode"].flatten(),
    s=2,
    c="k",
    label="default prior mode",
)
plt.plot([0, 3], [0, 3], "b--")
plt.xlabel("redshift")
plt.ylabel("photo-z mode")

Text(0, 0.5, 'photo-z mode')

Results do not look bad, there are some catastrophic outliers, and there appears to be some bias in the redshift estimates, but as the SED templates have slightly systematically different colors than our test data, that is just what we expect to see.

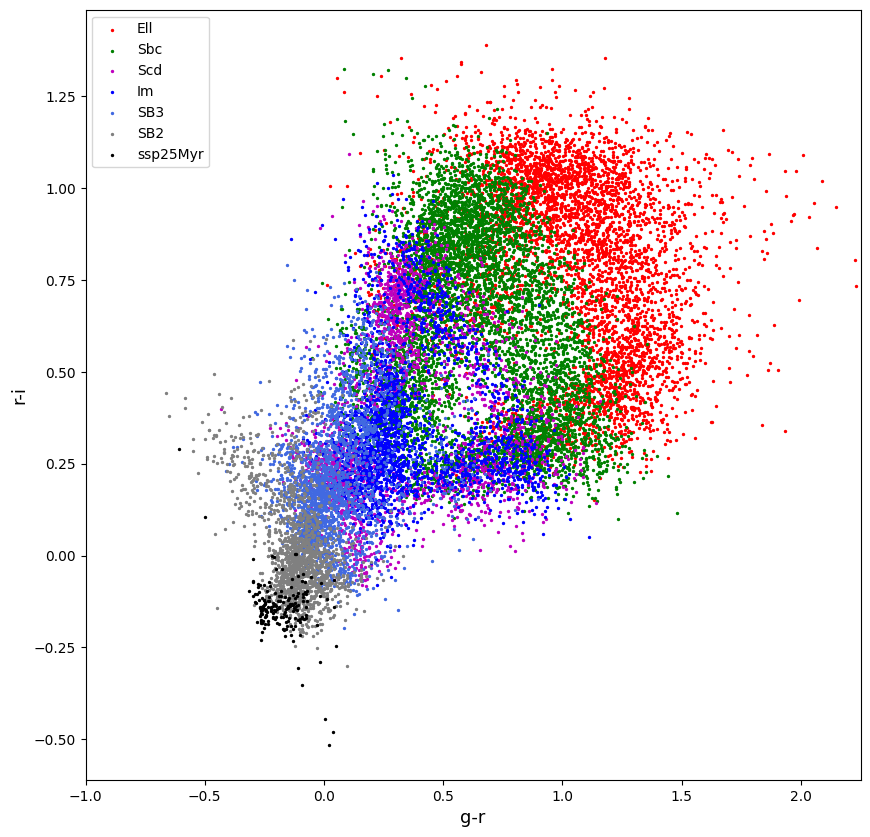

BPZliteEstimator also produces a tb , a “best-fit type”; that is, the SED template with the highest posterior probability contribution at the value of the zmode. We can plot up a color color diagram of our test data and we should see a pattern in color space reflecting the different populations in different areas of color space. tb is stored as an 1-indexed integer corresponding the the number of the SED in our template set.

colordict = {}
bands = ["u", "g", "r", "i", "z", "y"]
for i in range(5):
    colordict[f"{bands[i]}{bands[i+1]}"] = (
        test_data["photometry"][f"mag_{bands[i]}_lsst"]
        - test_data["photometry"][f"mag_{bands[i+1]}_lsst"]
    )
colordict["tb"] = default_result["output"].ancil["tb"].flatten()
colordict["todds"] = default_result["output"].ancil["todds"].flatten()
colordict["sz"] = sz
colordf = pd.DataFrame(colordict)
sed_col = ["r", "g", "m", "b", "royalblue", "gray", "k"]
sed_label = ["Ell", "Sbc", "Scd", "Im", "SB3", "SB2", "ssp25Myr", "ssp5Myr"]

plt.figure(figsize=(10, 10))
for i, col, lab in zip(range(8), sed_col, sed_label):
    tbmask = np.isclose(
        colordf["tb"], i + 1
    )  # note the 1-offset here because of how DESC_BPZ labels the SED types
    plt.scatter(colordf["gr"][tbmask], colordf["ri"][tbmask], color=col, s=2, label=lab)
plt.xlim(-1, 2.25)
plt.xlabel("g-r", fontsize=13)
plt.ylabel("r-i", fontsize=13)
plt.legend(loc="upper left", fontsize=10)

<matplotlib.legend.Legend at 0x7f78e120b130>

As expected, we see Ellptical galaxies with redder colors, and the bluest galaxies being star-forming galaxies with power-law-like SED shapes, with the other types spaced out in between.

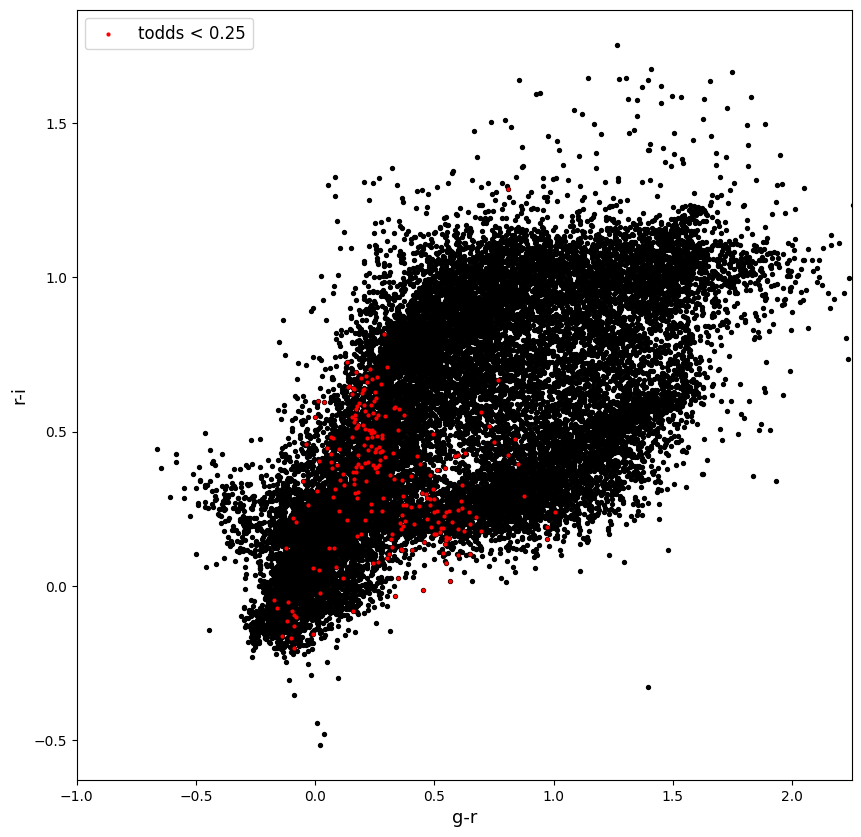

BPZliteEstimator also computes a quantity called todds, which is the fraction of posterior probability in the best-fit SED relative to the overall probability of all templates. If the value is high, then a single SED is providing more of the probability. If the value is low, then multiple SEDs are contributing, which means that tb, the best-fit-SED-type, is less meaningful. The values of todds whould be lower where SEDs have degenerate broad-band colors, let’s highlight the values of low todds and see where they lie in color space.

plt.figure(figsize=(10, 10))
lowtoddsmask = colordf["todds"] < 0.25
plt.scatter(colordf["gr"], colordf["ri"], color="k", s=8)
plt.scatter(
    colordf["gr"][lowtoddsmask],
    colordf["ri"][lowtoddsmask],
    color="r",
    s=4,
    label="todds < 0.25",
)
plt.xlim(-1, 2.25)
plt.xlabel("g-r", fontsize=13)
plt.ylabel("r-i", fontsize=13)
plt.legend(loc="upper left", fontsize=12)

<matplotlib.legend.Legend at 0x7f78e10ed990>

If you compare the areas of color space with low todds you can see that it corresponds to portions of color space where multiple best-fit SED types lie very close in color, e.g. areas where Sbc, Scd, and Im galaxies all have similar g-r and r-i colors.

Running with the Polletta et al 2007 and BC03 SED template set

We have also included a second SED template set, the one used to compute the COSMOS 30-band photo-z’s (See Ilbert et al 2007, Dahlen et al 2013 for more information) within rail. This set consists of 31 total SEDs, the Elliptical and Spiral galaxy SEDs are empirical SEDs from Polletta et al 2007, with additional blue templates generated from Bruzual and Charlot (Bruzual & Charlot 2003) models. These SEDs can be accessed via a path relative to RAILDIR as done below. In order to tell rail_bpz to use these SEDs, we need to set the spectra_file configuration parameter, which will point to an ascii file containing a list of the SED names in the same directory that contains the SEDs. That list file can be found relative to RAILDIR at: rail/examples_data/estimation_data/data/SED/COSMOS_seds.list. We have also created a version of the HDFN prior used above corresponding to these templates, which we can specify with the model configuration parameter. The prior can be found relative to RAILDIR at rail/examples_data/estimation_data/data/COSMOS31_HDFN_prior.pkl.

Let’s set up a run with this template set:

Let’s run the estimate stage, it should take almost four times as long, as we are now using 31 templates rather than 8, and the code should scale linearly in runtime with the number or SEDs.

cosmospriorfile = find_rail_file(
    "examples_data/estimation_data/data/COSMOS31_HDFN_prior.pkl"
)
sedfile = find_rail_file("examples_data/estimation_data/data/SED/COSMOS_seds.list")
cosmos_dict = dict(
    hdf5_groupname="photometry",
    spectra_file=sedfile,
    bands=lsst_bands,
    err_bands=lsst_errs,
    filter_list=lsst_filts,
    prior_band="mag_i_lsst",
    no_prior=False,
)
newsed_result = ri.estimation.algos.bpz_lite.bpz_lite_estimator(
    input_data=test_data, model=cosmospriorfile, **cosmos_dict
)

Inserting handle into data store.  input: None, BPZliteEstimator
Inserting handle into data store.  model: /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/COSMOS31_HDFN_prior.pkl, BPZliteEstimator
  Generating new AB file Ell1_A_0.DC2LSST_u.AB....
Ell1_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/desc_bpz/useful_py3.py:436: RuntimeWarning: invalid value encountered in divide
  d=(yg[1:]-yg[0:-1])/(xg[1:]-xg[0:-1])

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell1_A_0.DC2LSST_u.AB
  Generating new AB file Ell1_A_0.DC2LSST_g.AB....
Ell1_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell1_A_0.DC2LSST_g.AB
  Generating new AB file Ell1_A_0.DC2LSST_r.AB....
Ell1_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell1_A_0.DC2LSST_r.AB
  Generating new AB file Ell1_A_0.DC2LSST_i.AB....
Ell1_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell1_A_0.DC2LSST_i.AB
  Generating new AB file Ell1_A_0.DC2LSST_z.AB....
Ell1_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell1_A_0.DC2LSST_z.AB
  Generating new AB file Ell1_A_0.DC2LSST_y.AB....
Ell1_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell1_A_0.DC2LSST_y.AB
  Generating new AB file Ell2_A_0.DC2LSST_u.AB....
Ell2_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell2_A_0.DC2LSST_u.AB
  Generating new AB file Ell2_A_0.DC2LSST_g.AB....
Ell2_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell2_A_0.DC2LSST_g.AB
  Generating new AB file Ell2_A_0.DC2LSST_r.AB....
Ell2_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell2_A_0.DC2LSST_r.AB
  Generating new AB file Ell2_A_0.DC2LSST_i.AB....
Ell2_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell2_A_0.DC2LSST_i.AB
  Generating new AB file Ell2_A_0.DC2LSST_z.AB....
Ell2_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell2_A_0.DC2LSST_z.AB
  Generating new AB file Ell2_A_0.DC2LSST_y.AB....
Ell2_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell2_A_0.DC2LSST_y.AB
  Generating new AB file Ell3_A_0.DC2LSST_u.AB....
Ell3_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell3_A_0.DC2LSST_u.AB
  Generating new AB file Ell3_A_0.DC2LSST_g.AB....
Ell3_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell3_A_0.DC2LSST_g.AB
  Generating new AB file Ell3_A_0.DC2LSST_r.AB....
Ell3_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell3_A_0.DC2LSST_r.AB
  Generating new AB file Ell3_A_0.DC2LSST_i.AB....
Ell3_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell3_A_0.DC2LSST_i.AB
  Generating new AB file Ell3_A_0.DC2LSST_z.AB....
Ell3_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell3_A_0.DC2LSST_z.AB
  Generating new AB file Ell3_A_0.DC2LSST_y.AB....
Ell3_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell3_A_0.DC2LSST_y.AB
  Generating new AB file Ell4_A_0.DC2LSST_u.AB....
Ell4_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell4_A_0.DC2LSST_u.AB
  Generating new AB file Ell4_A_0.DC2LSST_g.AB....
Ell4_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell4_A_0.DC2LSST_g.AB
  Generating new AB file Ell4_A_0.DC2LSST_r.AB....
Ell4_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell4_A_0.DC2LSST_r.AB
  Generating new AB file Ell4_A_0.DC2LSST_i.AB....
Ell4_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell4_A_0.DC2LSST_i.AB
  Generating new AB file Ell4_A_0.DC2LSST_z.AB....
Ell4_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell4_A_0.DC2LSST_z.AB
  Generating new AB file Ell4_A_0.DC2LSST_y.AB....
Ell4_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell4_A_0.DC2LSST_y.AB
  Generating new AB file Ell5_A_0.DC2LSST_u.AB....
Ell5_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell5_A_0.DC2LSST_u.AB
  Generating new AB file Ell5_A_0.DC2LSST_g.AB....
Ell5_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell5_A_0.DC2LSST_g.AB
  Generating new AB file Ell5_A_0.DC2LSST_r.AB....
Ell5_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell5_A_0.DC2LSST_r.AB
  Generating new AB file Ell5_A_0.DC2LSST_i.AB....
Ell5_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell5_A_0.DC2LSST_i.AB
  Generating new AB file Ell5_A_0.DC2LSST_z.AB....
Ell5_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell5_A_0.DC2LSST_z.AB
  Generating new AB file Ell5_A_0.DC2LSST_y.AB....
Ell5_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell5_A_0.DC2LSST_y.AB
  Generating new AB file Ell6_A_0.DC2LSST_u.AB....
Ell6_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell6_A_0.DC2LSST_u.AB
  Generating new AB file Ell6_A_0.DC2LSST_g.AB....
Ell6_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell6_A_0.DC2LSST_g.AB
  Generating new AB file Ell6_A_0.DC2LSST_r.AB....
Ell6_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell6_A_0.DC2LSST_r.AB
  Generating new AB file Ell6_A_0.DC2LSST_i.AB....
Ell6_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell6_A_0.DC2LSST_i.AB
  Generating new AB file Ell6_A_0.DC2LSST_z.AB....
Ell6_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell6_A_0.DC2LSST_z.AB
  Generating new AB file Ell6_A_0.DC2LSST_y.AB....
Ell6_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell6_A_0.DC2LSST_y.AB
  Generating new AB file Ell7_A_0.DC2LSST_u.AB....
Ell7_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell7_A_0.DC2LSST_u.AB
  Generating new AB file Ell7_A_0.DC2LSST_g.AB....
Ell7_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell7_A_0.DC2LSST_g.AB
  Generating new AB file Ell7_A_0.DC2LSST_r.AB....
Ell7_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell7_A_0.DC2LSST_r.AB
  Generating new AB file Ell7_A_0.DC2LSST_i.AB....
Ell7_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell7_A_0.DC2LSST_i.AB
  Generating new AB file Ell7_A_0.DC2LSST_z.AB....
Ell7_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell7_A_0.DC2LSST_z.AB
  Generating new AB file Ell7_A_0.DC2LSST_y.AB....
Ell7_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Ell7_A_0.DC2LSST_y.AB
  Generating new AB file S0_A_0.DC2LSST_u.AB....
S0_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/S0_A_0.DC2LSST_u.AB
  Generating new AB file S0_A_0.DC2LSST_g.AB....
S0_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/S0_A_0.DC2LSST_g.AB
  Generating new AB file S0_A_0.DC2LSST_r.AB....
S0_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/S0_A_0.DC2LSST_r.AB
  Generating new AB file S0_A_0.DC2LSST_i.AB....
S0_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/S0_A_0.DC2LSST_i.AB
  Generating new AB file S0_A_0.DC2LSST_z.AB....
S0_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/S0_A_0.DC2LSST_z.AB
  Generating new AB file S0_A_0.DC2LSST_y.AB....
S0_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/S0_A_0.DC2LSST_y.AB
  Generating new AB file Sa_A_0.DC2LSST_u.AB....
Sa_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_0.DC2LSST_u.AB
  Generating new AB file Sa_A_0.DC2LSST_g.AB....
Sa_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_0.DC2LSST_g.AB
  Generating new AB file Sa_A_0.DC2LSST_r.AB....
Sa_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_0.DC2LSST_r.AB
  Generating new AB file Sa_A_0.DC2LSST_i.AB....
Sa_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_0.DC2LSST_i.AB
  Generating new AB file Sa_A_0.DC2LSST_z.AB....
Sa_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_0.DC2LSST_z.AB
  Generating new AB file Sa_A_0.DC2LSST_y.AB....
Sa_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_0.DC2LSST_y.AB
  Generating new AB file Sa_A_1.DC2LSST_u.AB....
Sa_A_1 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_1.DC2LSST_u.AB
  Generating new AB file Sa_A_1.DC2LSST_g.AB....
Sa_A_1 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_1.DC2LSST_g.AB
  Generating new AB file Sa_A_1.DC2LSST_r.AB....
Sa_A_1 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_1.DC2LSST_r.AB
  Generating new AB file Sa_A_1.DC2LSST_i.AB....
Sa_A_1 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_1.DC2LSST_i.AB
  Generating new AB file Sa_A_1.DC2LSST_z.AB....
Sa_A_1 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_1.DC2LSST_z.AB
  Generating new AB file Sa_A_1.DC2LSST_y.AB....
Sa_A_1 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sa_A_1.DC2LSST_y.AB
  Generating new AB file Sb_A_0.DC2LSST_u.AB....
Sb_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_0.DC2LSST_u.AB
  Generating new AB file Sb_A_0.DC2LSST_g.AB....
Sb_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_0.DC2LSST_g.AB
  Generating new AB file Sb_A_0.DC2LSST_r.AB....
Sb_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_0.DC2LSST_r.AB
  Generating new AB file Sb_A_0.DC2LSST_i.AB....
Sb_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_0.DC2LSST_i.AB
  Generating new AB file Sb_A_0.DC2LSST_z.AB....
Sb_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_0.DC2LSST_z.AB
  Generating new AB file Sb_A_0.DC2LSST_y.AB....
Sb_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_0.DC2LSST_y.AB
  Generating new AB file Sb_A_1.DC2LSST_u.AB....
Sb_A_1 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_1.DC2LSST_u.AB
  Generating new AB file Sb_A_1.DC2LSST_g.AB....
Sb_A_1 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_1.DC2LSST_g.AB
  Generating new AB file Sb_A_1.DC2LSST_r.AB....
Sb_A_1 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_1.DC2LSST_r.AB
  Generating new AB file Sb_A_1.DC2LSST_i.AB....
Sb_A_1 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_1.DC2LSST_i.AB
  Generating new AB file Sb_A_1.DC2LSST_z.AB....
Sb_A_1 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_1.DC2LSST_z.AB
  Generating new AB file Sb_A_1.DC2LSST_y.AB....
Sb_A_1 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sb_A_1.DC2LSST_y.AB
  Generating new AB file Sc_A_0.DC2LSST_u.AB....
Sc_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_0.DC2LSST_u.AB
  Generating new AB file Sc_A_0.DC2LSST_g.AB....
Sc_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_0.DC2LSST_g.AB
  Generating new AB file Sc_A_0.DC2LSST_r.AB....
Sc_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_0.DC2LSST_r.AB
  Generating new AB file Sc_A_0.DC2LSST_i.AB....
Sc_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_0.DC2LSST_i.AB
  Generating new AB file Sc_A_0.DC2LSST_z.AB....
Sc_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_0.DC2LSST_z.AB
  Generating new AB file Sc_A_0.DC2LSST_y.AB....
Sc_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_0.DC2LSST_y.AB
  Generating new AB file Sc_A_1.DC2LSST_u.AB....
Sc_A_1 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_1.DC2LSST_u.AB
  Generating new AB file Sc_A_1.DC2LSST_g.AB....
Sc_A_1 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_1.DC2LSST_g.AB
  Generating new AB file Sc_A_1.DC2LSST_r.AB....
Sc_A_1 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_1.DC2LSST_r.AB
  Generating new AB file Sc_A_1.DC2LSST_i.AB....
Sc_A_1 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_1.DC2LSST_i.AB
  Generating new AB file Sc_A_1.DC2LSST_z.AB....
Sc_A_1 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_1.DC2LSST_z.AB
  Generating new AB file Sc_A_1.DC2LSST_y.AB....
Sc_A_1 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_1.DC2LSST_y.AB
  Generating new AB file Sc_A_2.DC2LSST_u.AB....
Sc_A_2 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_2.DC2LSST_u.AB
  Generating new AB file Sc_A_2.DC2LSST_g.AB....
Sc_A_2 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_2.DC2LSST_g.AB
  Generating new AB file Sc_A_2.DC2LSST_r.AB....
Sc_A_2 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_2.DC2LSST_r.AB
  Generating new AB file Sc_A_2.DC2LSST_i.AB....
Sc_A_2 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_2.DC2LSST_i.AB
  Generating new AB file Sc_A_2.DC2LSST_z.AB....
Sc_A_2 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_2.DC2LSST_z.AB
  Generating new AB file Sc_A_2.DC2LSST_y.AB....
Sc_A_2 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sc_A_2.DC2LSST_y.AB
  Generating new AB file Sd_A_0.DC2LSST_u.AB....
Sd_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_0.DC2LSST_u.AB
  Generating new AB file Sd_A_0.DC2LSST_g.AB....
Sd_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_0.DC2LSST_g.AB
  Generating new AB file Sd_A_0.DC2LSST_r.AB....
Sd_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_0.DC2LSST_r.AB
  Generating new AB file Sd_A_0.DC2LSST_i.AB....
Sd_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_0.DC2LSST_i.AB
  Generating new AB file Sd_A_0.DC2LSST_z.AB....
Sd_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_0.DC2LSST_z.AB
  Generating new AB file Sd_A_0.DC2LSST_y.AB....
Sd_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_0.DC2LSST_y.AB
  Generating new AB file Sd_A_1.DC2LSST_u.AB....
Sd_A_1 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_1.DC2LSST_u.AB
  Generating new AB file Sd_A_1.DC2LSST_g.AB....
Sd_A_1 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_1.DC2LSST_g.AB
  Generating new AB file Sd_A_1.DC2LSST_r.AB....
Sd_A_1 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_1.DC2LSST_r.AB
  Generating new AB file Sd_A_1.DC2LSST_i.AB....
Sd_A_1 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_1.DC2LSST_i.AB
  Generating new AB file Sd_A_1.DC2LSST_z.AB....
Sd_A_1 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_1.DC2LSST_z.AB
  Generating new AB file Sd_A_1.DC2LSST_y.AB....
Sd_A_1 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_1.DC2LSST_y.AB
  Generating new AB file Sd_A_2.DC2LSST_u.AB....
Sd_A_2 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_2.DC2LSST_u.AB
  Generating new AB file Sd_A_2.DC2LSST_g.AB....
Sd_A_2 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_2.DC2LSST_g.AB
  Generating new AB file Sd_A_2.DC2LSST_r.AB....
Sd_A_2 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_2.DC2LSST_r.AB
  Generating new AB file Sd_A_2.DC2LSST_i.AB....
Sd_A_2 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_2.DC2LSST_i.AB
  Generating new AB file Sd_A_2.DC2LSST_z.AB....
Sd_A_2 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_2.DC2LSST_z.AB
  Generating new AB file Sd_A_2.DC2LSST_y.AB....
Sd_A_2 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sd_A_2.DC2LSST_y.AB
  Generating new AB file Sdm_A_0.DC2LSST_u.AB....
Sdm_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sdm_A_0.DC2LSST_u.AB
  Generating new AB file Sdm_A_0.DC2LSST_g.AB....
Sdm_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sdm_A_0.DC2LSST_g.AB
  Generating new AB file Sdm_A_0.DC2LSST_r.AB....
Sdm_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sdm_A_0.DC2LSST_r.AB
  Generating new AB file Sdm_A_0.DC2LSST_i.AB....
Sdm_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sdm_A_0.DC2LSST_i.AB
  Generating new AB file Sdm_A_0.DC2LSST_z.AB....
Sdm_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sdm_A_0.DC2LSST_z.AB
  Generating new AB file Sdm_A_0.DC2LSST_y.AB....
Sdm_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/Sdm_A_0.DC2LSST_y.AB
  Generating new AB file SB0_A_0.DC2LSST_u.AB....
SB0_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB0_A_0.DC2LSST_u.AB
  Generating new AB file SB0_A_0.DC2LSST_g.AB....
SB0_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB0_A_0.DC2LSST_g.AB
  Generating new AB file SB0_A_0.DC2LSST_r.AB....
SB0_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB0_A_0.DC2LSST_r.AB
  Generating new AB file SB0_A_0.DC2LSST_i.AB....
SB0_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB0_A_0.DC2LSST_i.AB
  Generating new AB file SB0_A_0.DC2LSST_z.AB....
SB0_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB0_A_0.DC2LSST_z.AB
  Generating new AB file SB0_A_0.DC2LSST_y.AB....
SB0_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB0_A_0.DC2LSST_y.AB
  Generating new AB file SB1_A_0.DC2LSST_u.AB....
SB1_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB1_A_0.DC2LSST_u.AB
  Generating new AB file SB1_A_0.DC2LSST_g.AB....
SB1_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB1_A_0.DC2LSST_g.AB
  Generating new AB file SB1_A_0.DC2LSST_r.AB....
SB1_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB1_A_0.DC2LSST_r.AB
  Generating new AB file SB1_A_0.DC2LSST_i.AB....
SB1_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB1_A_0.DC2LSST_i.AB
  Generating new AB file SB1_A_0.DC2LSST_z.AB....
SB1_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB1_A_0.DC2LSST_z.AB
  Generating new AB file SB1_A_0.DC2LSST_y.AB....
SB1_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB1_A_0.DC2LSST_y.AB
  Generating new AB file SB2_A_0.DC2LSST_u.AB....
SB2_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_A_0.DC2LSST_u.AB
  Generating new AB file SB2_A_0.DC2LSST_g.AB....
SB2_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_A_0.DC2LSST_g.AB
  Generating new AB file SB2_A_0.DC2LSST_r.AB....
SB2_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_A_0.DC2LSST_r.AB
  Generating new AB file SB2_A_0.DC2LSST_i.AB....
SB2_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_A_0.DC2LSST_i.AB
  Generating new AB file SB2_A_0.DC2LSST_z.AB....
SB2_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_A_0.DC2LSST_z.AB
  Generating new AB file SB2_A_0.DC2LSST_y.AB....
SB2_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB2_A_0.DC2LSST_y.AB
  Generating new AB file SB3_A_0.DC2LSST_u.AB....
SB3_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_A_0.DC2LSST_u.AB
  Generating new AB file SB3_A_0.DC2LSST_g.AB....
SB3_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_A_0.DC2LSST_g.AB
  Generating new AB file SB3_A_0.DC2LSST_r.AB....
SB3_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_A_0.DC2LSST_r.AB
  Generating new AB file SB3_A_0.DC2LSST_i.AB....
SB3_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_A_0.DC2LSST_i.AB
  Generating new AB file SB3_A_0.DC2LSST_z.AB....
SB3_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_A_0.DC2LSST_z.AB
  Generating new AB file SB3_A_0.DC2LSST_y.AB....
SB3_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB3_A_0.DC2LSST_y.AB
  Generating new AB file SB4_A_0.DC2LSST_u.AB....
SB4_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB4_A_0.DC2LSST_u.AB
  Generating new AB file SB4_A_0.DC2LSST_g.AB....
SB4_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB4_A_0.DC2LSST_g.AB
  Generating new AB file SB4_A_0.DC2LSST_r.AB....
SB4_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB4_A_0.DC2LSST_r.AB
  Generating new AB file SB4_A_0.DC2LSST_i.AB....
SB4_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB4_A_0.DC2LSST_i.AB
  Generating new AB file SB4_A_0.DC2LSST_z.AB....
SB4_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB4_A_0.DC2LSST_z.AB
  Generating new AB file SB4_A_0.DC2LSST_y.AB....
SB4_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB4_A_0.DC2LSST_y.AB
  Generating new AB file SB5_A_0.DC2LSST_u.AB....
SB5_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB5_A_0.DC2LSST_u.AB
  Generating new AB file SB5_A_0.DC2LSST_g.AB....
SB5_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB5_A_0.DC2LSST_g.AB
  Generating new AB file SB5_A_0.DC2LSST_r.AB....
SB5_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB5_A_0.DC2LSST_r.AB
  Generating new AB file SB5_A_0.DC2LSST_i.AB....
SB5_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB5_A_0.DC2LSST_i.AB
  Generating new AB file SB5_A_0.DC2LSST_z.AB....
SB5_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB5_A_0.DC2LSST_z.AB
  Generating new AB file SB5_A_0.DC2LSST_y.AB....
SB5_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB5_A_0.DC2LSST_y.AB
  Generating new AB file SB6_A_0.DC2LSST_u.AB....
SB6_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB6_A_0.DC2LSST_u.AB
  Generating new AB file SB6_A_0.DC2LSST_g.AB....
SB6_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB6_A_0.DC2LSST_g.AB
  Generating new AB file SB6_A_0.DC2LSST_r.AB....
SB6_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB6_A_0.DC2LSST_r.AB
  Generating new AB file SB6_A_0.DC2LSST_i.AB....
SB6_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB6_A_0.DC2LSST_i.AB
  Generating new AB file SB6_A_0.DC2LSST_z.AB....
SB6_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB6_A_0.DC2LSST_z.AB
  Generating new AB file SB6_A_0.DC2LSST_y.AB....
SB6_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB6_A_0.DC2LSST_y.AB
  Generating new AB file SB7_A_0.DC2LSST_u.AB....
SB7_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB7_A_0.DC2LSST_u.AB
  Generating new AB file SB7_A_0.DC2LSST_g.AB....
SB7_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB7_A_0.DC2LSST_g.AB
  Generating new AB file SB7_A_0.DC2LSST_r.AB....
SB7_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB7_A_0.DC2LSST_r.AB
  Generating new AB file SB7_A_0.DC2LSST_i.AB....
SB7_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB7_A_0.DC2LSST_i.AB
  Generating new AB file SB7_A_0.DC2LSST_z.AB....
SB7_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB7_A_0.DC2LSST_z.AB
  Generating new AB file SB7_A_0.DC2LSST_y.AB....
SB7_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB7_A_0.DC2LSST_y.AB
  Generating new AB file SB8_A_0.DC2LSST_u.AB....
SB8_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB8_A_0.DC2LSST_u.AB
  Generating new AB file SB8_A_0.DC2LSST_g.AB....
SB8_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB8_A_0.DC2LSST_g.AB
  Generating new AB file SB8_A_0.DC2LSST_r.AB....
SB8_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB8_A_0.DC2LSST_r.AB
  Generating new AB file SB8_A_0.DC2LSST_i.AB....
SB8_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB8_A_0.DC2LSST_i.AB
  Generating new AB file SB8_A_0.DC2LSST_z.AB....
SB8_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB8_A_0.DC2LSST_z.AB
  Generating new AB file SB8_A_0.DC2LSST_y.AB....
SB8_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB8_A_0.DC2LSST_y.AB
  Generating new AB file SB9_A_0.DC2LSST_u.AB....
SB9_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB9_A_0.DC2LSST_u.AB
  Generating new AB file SB9_A_0.DC2LSST_g.AB....
SB9_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB9_A_0.DC2LSST_g.AB
  Generating new AB file SB9_A_0.DC2LSST_r.AB....
SB9_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB9_A_0.DC2LSST_r.AB
  Generating new AB file SB9_A_0.DC2LSST_i.AB....
SB9_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB9_A_0.DC2LSST_i.AB
  Generating new AB file SB9_A_0.DC2LSST_z.AB....
SB9_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB9_A_0.DC2LSST_z.AB
  Generating new AB file SB9_A_0.DC2LSST_y.AB....
SB9_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB9_A_0.DC2LSST_y.AB
  Generating new AB file SB10_A_0.DC2LSST_u.AB....
SB10_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB10_A_0.DC2LSST_u.AB
  Generating new AB file SB10_A_0.DC2LSST_g.AB....
SB10_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB10_A_0.DC2LSST_g.AB
  Generating new AB file SB10_A_0.DC2LSST_r.AB....
SB10_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB10_A_0.DC2LSST_r.AB
  Generating new AB file SB10_A_0.DC2LSST_i.AB....
SB10_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB10_A_0.DC2LSST_i.AB
  Generating new AB file SB10_A_0.DC2LSST_z.AB....
SB10_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB10_A_0.DC2LSST_z.AB
  Generating new AB file SB10_A_0.DC2LSST_y.AB....
SB10_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB10_A_0.DC2LSST_y.AB
  Generating new AB file SB11_A_0.DC2LSST_u.AB....
SB11_A_0 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB11_A_0.DC2LSST_u.AB
  Generating new AB file SB11_A_0.DC2LSST_g.AB....
SB11_A_0 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB11_A_0.DC2LSST_g.AB
  Generating new AB file SB11_A_0.DC2LSST_r.AB....
SB11_A_0 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB11_A_0.DC2LSST_r.AB
  Generating new AB file SB11_A_0.DC2LSST_i.AB....
SB11_A_0 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB11_A_0.DC2LSST_i.AB
  Generating new AB file SB11_A_0.DC2LSST_z.AB....
SB11_A_0 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB11_A_0.DC2LSST_z.AB
  Generating new AB file SB11_A_0.DC2LSST_y.AB....
SB11_A_0 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0

Writing AB file  /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/SB11_A_0.DC2LSST_y.AB
Process 0 running estimator on chunk 0 - 20,449

Inserting handle into data store.  output: inprogress_output.hdf5, BPZliteEstimator

A run on a single processor on a Mac took 15.7 seconds for me, relative to 5.9 seconds for the CWWSB template set (not counting time used generating the AB files), so not far off of the rough factor of four predicted.

Let’s plot the point estimate vs true redshift for a quick comparison to the CWWSB plot above:

plt.figure(figsize=(8, 8))
plt.scatter(
    sz,
    newsed_result["output"].ancil["zmode"].flatten(),
    s=2,
    c="k",
    label="default prior mode",
)
plt.plot([0, 3], [0, 3], "b--")
plt.xlabel("redshift")
plt.ylabel("Polletta/BC03 templates photo-z mode")

Text(0, 0.5, 'Polletta/BC03 templates photo-z mode')

We see some differences in scatter, bias, and outliers, as we would expect for different SEDs, as we are comparing our photometry to a different set of synthetic magnitudes. We will compare more quantitative stats later in the notebook.

BPZliteInformer: training a custom prior

If you want to go beyond the default prior, there is an BPZliteInformer stage that allows you to use a training dataset to fit a custom parameterized prior that better matches the magnitude and type distributions of the training set. As a major caveat, this inform stage does not always converge to sensible results, and should ouly be run on a representative set of training data. As such, we do not anticipate that this will be run in full very often, and the default behavior of this method will be to simply return the default Hubble Deep Field North (HDFN) prior normalized to the type mix specified via the nt_array configuration parameter.

The BPZliteInformer configuration parameter output_hdfn controls the behavior of the inform stage. By default it is set to True, which, as stated above, will not perform a fit, but instead just returns the HDFN prior parameters. If output_hdfn is set to False, and a broad type file is supplied, then a full fit to new prior parameters is performed, as described below:

bpz-1.99.3 and our local fork, DESC_BPZ both parameterize the Bayesian prior using the form described in Benitez (2000), where the individual SED types are grouped into “broad types”, e.g. 1 Elliptical makes up one type, the two spirals (Sbc and Scd) make up a second, and the five remaining “blue” templates (Im, SB3, SB2, ssp25Myr, and ssp5Myr) make up a third type. This grouping is somewhat ad-hoc, but does have physical motivation, in that we have observed that Ellipticals, spirals, and irregular/starburst galaxies do show distinctly evolving observed fractions as a function of apparent/absolute magnitude and redshift. Things get more complicated with more complex SED sets that contain variations in dust content, star formation histories, emission lines, etc… Due to such complications, the current implementation of BPZliteInformer leaves the assignment of a “broad-SED-type” to the user, and these broad types are a necessary input to BPZliteInformer via the type_file config option. In the future, determination of broad SED type will be added as a pre-processing step to the rail_bpz package.

The easiest way to obtain these broad SED types is to run DESC_BPZ with the parameter ONLY_TYPE set to yes. When the ONLY_TYPE option is turned on in DESC_BPZ, the code returns a best-fit SED type evaluated only at the spectroscopic redshift for the object (determined as the best chi^2 amongst the N templates). The user then needs to map these N integers down to a set of “broad-type” integers corresponding to however they wish to define the mapping from N SED types to M broad types. As an example, I have done this using the CWWSB templates and the 1 Ell, 2 Sp, and 5 Im/SB broad type mapping for our test_dc2_training_9816.hdf5 dataset. The file with these broad types, named test_dc2_training_9816_broadtypes.hdf5 is available to download from NERSC, and for convenience, can be downloaded via the built-in RAIL command line tool with: !rail get-data --bpz-demo-data in the cell below.

The file test_dc2_training_9816_broadtypes.hdf5 consists of an array of integers named types with values 0 (Elliptical), 1 (Spiral), and 2 (Irregular/Starburst) corresponding to the best-fit broad SED for each of the 10,225 galaxies in our training sample.

Now, let’s set up our inform stage to calculate a new prior. We will name the new prior test_9816_demo_prior.pkl, setting this as the model config parameter will tell BPZliteInformer to save our trained model by that name in the current directory.

When we run inform it will display values for the parameters as the minimizer runs, including final values for the parameters. You do not need to pay attention to these values, though if you are curious you can plot them up and compare to the distributions of the HDFN prior.

First, as mentioned in the above cell, we must download the file containing the broad types for each galaxy in our training set. You can do this by executing the rail get-data --bpz-demo-data command:

!rail get-data --bpz-demo-data

/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/pty.py:89: RuntimeWarning: os.fork() was called. os.fork() is incompatible with multithreaded code, and JAX is multithreaded, so this will likely lead to a deadlock.
  pid, fd = os.forkpty()

  Downloading BPZ demo data...
  (Note: you can run get-data without the bpz-demo-data flag to download standard data.)
    % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                   Dload  Upload   Total   Spent    Left  Speed

0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0

100 450k 100 450k 0 0 556k 0 –:–:– –:–:– –:–:– 556k

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

0 0 0 0 0 0 0 0 –:–:– –:–:– –:–:– 0 0 0 0 0 0 0 0 0 –:–:– –:–:– –:–:– 0

100 83848 100 83848 0 0 230k 0 –:–:– –:–:– –:–:– 230k

% Total % Received % Xferd Average Speed Time Time Time Current

Dload Upload Total Spent Left Speed

0 0 0 0 0 0 0 0 –:–:– –:–:– –:–:– 0

100 83848 100 83848 0 0 157k 0 –:–:– –:–:– –:–:– 157k

train_dict = dict(
    type_file=find_rail_file(
        "examples_data/estimation_data/data/test_dc2_training_9816_broadtypes.hdf5",
    ),
    nt_array=[1, 2, 5],
    output_hdfn=False,
)
newmodel = ri.estimation.algos.bpz_lite.bpz_lite_informer(
    training_data=training_data, **train_dict
)["model"]

Inserting handle into data store.  input: None, BPZliteInformer

using 10213 galaxies in calculation

best values for fo and kt:
[0.47289716 0.51295654]
[ 0.44992085 -0.01323466]
minimizing for type 0
best fit z0, alpha, km for type 0: [0.28011776 1.86228103 0.09894587]
minimizing for type 1
best fit z0, alpha, km for type 1: [0.39341294 2.04677095 0.07633585]
minimizing for type 2
best fit z0, alpha, km for type 2: [0.557186   1.92439164 0.11126791]
Inserting handle into data store.  model: inprogress_model.pkl, BPZliteInformer

We can visualize the prior using the prior_function function from DESC_BPZ to generate prior values for our broad types. We can compare our new prior to that of the default HDFN prior that we ran initially. The model files simply store a set of parameters in a dictionary that prior_function uses to produce the prior values.

NOTE: if you want to learn the meaning of these parameters, you can read the original BPZ paper, Benitez (2000) here: https://ui.adsabs.harvard.edu/abs/2000ApJ…536..571B/abstract

newmodel

{'fo_arr': array([0.47289716, 0.51295654]),
 'kt_arr': array([ 0.44992085, -0.01323466]),
 'zo_arr': array([0.28011776, 0.39341294, 0.557186  ]),
 'km_arr': array([0.09894587, 0.07633585, 0.11126791]),
 'a_arr': array([1.86228103, 2.04677095, 1.92439164]),
 'mo': 20.0,
 'nt_array': [1, 2, 5]}

with open(hdfnfile, "rb") as f:
    hdfnmodel = pickle.load(f)
hdfnmodel

{'fo_arr': array([0.35, 0.5 ]),
 'kt_arr': array([0.45 , 0.147]),
 'zo_arr': array([0.431 , 0.39  , 0.0626]),
 'km_arr': array([0.0913, 0.0636, 0.123 ]),
 'a_arr': array([2.465, 1.806, 0.906]),
 'mo': 20.0,
 'nt_array': [1, 2, 5]}

prior_with_dict takes four arguments: a redshift grid, a magnitude (it is an apparent magnitude-dependent prior), the modeldict, and the number of templates in our SED set as arguments. Let’s generate priors for mag=23, and then for mag=25:

zgrid = np.linspace(0, 3, 301)
defprior20 = prior_function(zgrid, 20.0, hdfnmodel, 8)
defprior23 = prior_function(zgrid, 23.0, hdfnmodel, 8)
defprior25 = prior_function(zgrid, 25.0, hdfnmodel, 8)

newprior23 = prior_function(zgrid, 23.0, newmodel, 8)
newprior25 = prior_function(zgrid, 25.0, newmodel, 8)
newprior20 = prior_function(zgrid, 20.0, newmodel, 8)

We will plot the prior for the elliptical, one spiral, and one irregular to compare. Note the BPZ divides up the probability in each broad type equally amongst the N templates in that broad type, so we will multiply by that number to get the total prior probability for the entire broad type, in our case 1 Elliptical SED, 2 Spiral SEDs, and 5 Irr/SB SEDs:

seddict = {"El": 0, "Sp": 1, "Irr/SB": 7}
multiplier = [1.0, 2.0, 5.0]
sedcol = ["r", "m", "b"]
fig, (axs, axs2, axs3) = plt.subplots(3, 1, figsize=(10, 12))
for sed, col, multi in zip(seddict, sedcol, multiplier):
    axs.plot(
        zgrid,
        defprior20[:, seddict[sed]] * multi,
        color=col,
        lw=2,
        ls="--",
        label=f"hdfn prior {sed}",
    )
    axs.plot(
        zgrid,
        newprior20[:, seddict[sed]] * multi,
        color=col,
        ls="-",
        label=f"new prior {sed}",
    )
    axs.set_title("priors for mag=20.0")
    axs2.plot(
        zgrid,
        defprior23[:, seddict[sed]] * multi,
        color=col,
        lw=2,
        ls="--",
        label=f"hdfn prior {sed}",
    )
    axs2.plot(
        zgrid,
        newprior23[:, seddict[sed]] * multi,
        color=col,
        ls="-",
        label=f"new prior {sed}",
    )
    axs2.set_title("priors for mag=23.0")
    axs3.plot(
        zgrid,
        defprior25[:, seddict[sed]] * multi,
        color=col,
        lw=2,
        ls="--",
        label=f"hdfn prior {sed}",
    )
    axs3.plot(
        zgrid,
        newprior25[:, seddict[sed]] * multi,
        color=col,
        ls="-",
        label=f"new prior {sed}",
    )
    axs3.set_xlabel("redshift")
    axs3.set_title("priors for mag=25.0")
    axs3.set_ylabel("prior_probability")
    axs.set_ylabel("prior probability")
axs.legend(loc="upper right", fontsize=10)

<matplotlib.legend.Legend at 0x7f78b780f3d0>

For the ellipticals and spirals at magnitudes 23 and 25, we see that the mean redshift and shape of the prior are similar, but the amplitudes are dramatically different: the HDFN prior is telling us that you are more likely to be an irregular/starburst galaxy than an elliptical or spiral at our two example magnitudes, whereas our custom prior has a higher probability for spirals at fainter magnitudes. We also see that the custom prior is predicting a slightly different redshift distribution and higher mean redshift than the HDFN prior for irregular/starburst galaxies. At magnitude 20 we see almost no probability of being an irregular galaxy in our custom prior. In both priors, the probability of being an irregular/starburst increases dramatically as we go fainter in apparent magnitude, consistent with our expectations of galaxy evolution.

The final posterior PDF is a product of the marginalized likelihood as a function of redshift and type, and thus the effect of the prior depends heavily on the “peakiness” of the likelihood: with a high chi^2 in flux/color space leading to very high likelihoods, the prior should not have a dramatic effect on the posterior. For lower chi^2 values and galaxies with low S/N where the likelihoods are broad in redshift, the prior can have more dramatic results, often pushing the PDF to higher or lower redshifts. The exception can be if the prior for a particular redshift or type goest to zero. For example, our custom prior assigns almost zero prior probability of a galaxy being an irregular at 20th magnitude. So, no matter how high the likelihood the prior is for one of the irregular templates, the prior will quash this and any probability from the elliptical or spiral templates is likely to dominate in the final marginalized posterior. In general, the redshift distributions as a function of apparent magnitude become very broad at fainter magnitudes, and so this “strong prior” case only occurs at very bright apparent magnitudes. Given the power law shape of apparent magnitude number counts, this means that this only affects a small number of galaxies.

Now, let’s re-run BPZliteEstimator using this new prior and see if our results are any different:

rerun_dict = dict(
    hdf5_groupname="photometry",
    prior_band="mag_i_lsst",
    no_prior=False,
)

rerun_res = ri.estimation.algos.bpz_lite.bpz_lite_estimator(
    input_data=test_data, model=newmodel, **rerun_dict
)

Inserting handle into data store.  input: None, BPZliteEstimator
Inserting handle into data store.  model: {'fo_arr': array([0.47289716, 0.51295654]), 'kt_arr': array([ 0.44992085, -0.01323466]), 'zo_arr': array([0.28011776, 0.39341294, 0.557186  ]), 'km_arr': array([0.09894587, 0.07633585, 0.11126791]), 'a_arr': array([1.86228103, 2.04677095, 1.92439164]), 'mo': 20.0, 'nt_array': [1, 2, 5]}, BPZliteEstimator
Process 0 running estimator on chunk 0 - 20,449

Inserting handle into data store.  output: inprogress_output.hdf5, BPZliteEstimator

And let’s plot the modes fore this new run as well as our run with the default prior:

plt.figure(figsize=(8, 8))
plt.scatter(
    sz,
    rerun_res["output"].ancil["zmode"].flatten(),
    s=8,
    c="k",
    label="custom prior zmode",
)
plt.scatter(
    sz,
    default_result["output"].ancil["zmode"].flatten(),
    s=2,
    c="r",
    label="default prior mode",
)
plt.plot([0, 3], [0, 3], "b--")
plt.xlabel("redshift")
plt.ylabel("photo-z mode")
plt.legend(loc="upper center", fontsize=10)

<matplotlib.legend.Legend at 0x7f78b77c4430>

We generally consistent performance, but with small shifts (particularly at higher redshift), and some noticeable changes in the outliers. This is about what we would expect, as our priors are fairly broad, and the redshif/type distributions for our cosmoDC2 data is not massively different than that described by the HDFN prior (except at very bright magnitudes, which may just be due to very small numbers of those bright galaxies in our training set, and which only affects a very small portion of our test sample, e.g. only 318 of our test_sample galaxies have mag_i_lsst < 21.0). Overall, the Bayesian prior should only have a dramatic effect on low S/N galaxies with fairly broad PDFs. For high S/N galaxies like those in our “gold” sample tested here, the chi^2 and likelihood values should dominate, and the prior should mostly cause minor changes. The exception can be on bimodal PDFs, where the prior may increase one peak and decrease the other, moving the mode from a catastrophic outlier to a reasonable estimate, or vice-versa. Let’s find the indeces for objects with very large differences between our two estimates and plot one:

delta_mode = (
    rerun_res["output"].ancil["zmode"].flatten()
    - default_result["output"].ancil["zmode"].flatten()
)
largedelta = np.abs(delta_mode) > 2.5
print(f"{np.sum(largedelta)} gals have large shift in mode with indices:\n\n")
for i, delt in enumerate(largedelta):
    if delt:
        print(i)

5 gals have large shift in mode with indices:


44
65
108
240
20400

whichone = 109
fig, axs = plt.subplots(1, 1, figsize=(10, 6))
default_result["output"].plot_native(key=whichone, axes=axs, label="CWWHDFN prior")
rerun_res["output"].plot_native(key=whichone, axes=axs, label="custom prior")
axs.set_xlabel("redshift")
axs.set_ylabel("PDF")
axs.legend(loc="upper center", fontsize=10)

<matplotlib.legend.Legend at 0x7f78b7988310>

Yes, the difference in prior has modulated the amplitude in the two peaks slightly, shifting the mode from low redshift peak for CWWHDFN to the high redshift peak for the custom prior. While the mode has changed dramatically, both PDFs still have significant probability at both potential redshift solutions.

Point estimate metrics

Let’s see if our point estimate metrics have improved at all given the tuned prior. These metrics take in arrays of the point estimates (we’ll use the mode) and the true redshifts.

hdfn_sigma_eval = PointSigmaIQR(default_result["output"].ancil["zmode"].flatten(), sz)
newsed_sigma_eval = PointSigmaIQR(newsed_result["output"].ancil["zmode"].flatten(), sz)
rerun_sigma_eval = PointSigmaIQR(rerun_res["output"].ancil["zmode"].flatten(), sz)

hdfn_sigma = hdfn_sigma_eval.evaluate()
newsed_sigma = newsed_sigma_eval.evaluate()
rerun_sigma = rerun_sigma_eval.evaluate()

print(
    f"hdfn sigma: {hdfn_sigma:.4f} \nnewsed sigma: {newsed_sigma:.4f}\ncustom prior sigma: {rerun_sigma:.4f}"
)

hdfn sigma: 0.0566
newsed sigma: 0.0434
custom prior sigma: 0.0554

hdfn_bias_eval = PointBias(default_result["output"].ancil["zmode"].flatten(), sz)
newsed_bias_eval = PointBias(newsed_result["output"].ancil["zmode"].flatten(), sz)
rerun_bias_eval = PointBias(rerun_res["output"].ancil["zmode"].flatten(), sz)

hdfn_bias = hdfn_bias_eval.evaluate()
newsed_bias = newsed_bias_eval.evaluate()
rerun_bias = rerun_bias_eval.evaluate()
print(
    f"hdfn bias: {hdfn_bias:.4f}\nnewsed bias: {newsed_bias:.4f}\ncustom prior bias: {rerun_bias:.4f}"
)

hdfn bias: -0.0295
newsed bias: -0.0294
custom prior bias: -0.0295

We see very minor reductions, and overall similar behavior, between the HDFN and custom prior, but a much smaller scatter in the larger COSMOS SED templates set. These SEDs are slightly newer than the CWWSB, and we are comparing against 31 rather than 8, which allows for better matches to photometry in some cases, so this is not unexpected, and in some sense we are trading extra compute-time for a reduction in scatter by increasing the number of SED templates. Comparing the HDFN prior to the custom prior, we note that the prior should not affect high S/N observations very much, and as we are in a fairly high S/N regime it is appropriate that we do not see much difference. From our plot it looks like the outlier fraction may be the metric most affected by the prior, let’s check this:

hdfn_outlier_eval = PointOutlierRate(
    default_result["output"].ancil["zmode"].flatten(), sz
)
newsed_outlier_eval = PointOutlierRate(
    newsed_result["output"].ancil["zmode"].flatten(), sz
)
rerun_outlier_eval = PointOutlierRate(rerun_res["output"].ancil["zmode"].flatten(), sz)

hdfn_outlier = hdfn_outlier_eval.evaluate()
newsed_outlier = newsed_outlier_eval.evaluate()
rerun_outlier = rerun_outlier_eval.evaluate()
print(
    f"hdfn outlier rate: {hdfn_outlier:.4f}\nnewsed outlier rate: {newsed_outlier:.4f}\ncustom prior outlier rate: {rerun_outlier:.4f}"
)

hdfn outlier rate: 0.0724
newsed outlier rate: 0.0647
custom prior outlier rate: 0.0668

Not a dramatic effect, but a definite reduction in the number of outliers between the HDFN and custom prior, and a slight increase in outliers for the COSMOS SEDs. This outlier rate is defined in terms of PointSigmaIQR, and thus varies depending on said sigma, and is thus harder to directly compare. For a direct comparison, let’s compute the fraction of galaxies that have a delta(zmode - specz) larger than 0.15*(1+z), i.e. those with abs(zmode - specz) / (1 + specz) > 0.15:

hdfn_ez_eval = PointStatsEz(default_result["output"].ancil["zmode"].flatten(), sz)
newsed_ez_eval = PointStatsEz(newsed_result["output"].ancil["zmode"].flatten(), sz)
rerun_ez_eval = PointStatsEz(rerun_res["output"].ancil["zmode"].flatten(), sz)
hdfn_ez = hdfn_ez_eval.evaluate()
newsed_ez = newsed_ez_eval.evaluate()
rerun_ez = rerun_ez_eval.evaluate()
hdfn_outlier_frac = (np.sum((np.abs(hdfn_ez) > 0.15))) / len(sz)
newsed_outlier_frac = (np.sum((np.abs(newsed_ez) > 0.15))) / len(sz)
rerun_outlier_frac = (np.sum((np.abs(rerun_ez) > 0.15))) / len(sz)
print(
    f"HDFN catastrophic outlier frac is: {hdfn_outlier_frac:.4f}\nnew sed outlier frac: {newsed_outlier_frac:.4f}\ncustom prior catastrophic oulier frac is: {rerun_outlier_frac:.4f}"
)

HDFN catastrophic outlier frac is: 0.0861
new sed outlier frac: 0.0519
custom prior catastrophic oulier frac is: 0.0793

We see that the COSMOS SED has a smaller fraction of absolute outliers now that we have removed the dependence on the reduced sigma, so overall it just performs better, but at the expense of a longer runtime. The template set used is also part of the implicit prior of the code, and can have a much larger effect on the results: our chi^2 values, and thus likelihoods for each galaxy at each redshift, are measured relative to the fluxes predicted for the templates. The combination of the templates and prior, and optimization of both will influence resultant photo-z performance. However, optimization of SED template sets is beyond the scope of this simple demo notebook.

In terms of the prior and comparing the HDFN prior, our custom prior has some effect on results, but it does not dominate. That is a good thing, as again, we do not want our prior to dominate photo-z calculations for high signal-to-noise data.
