GPz Estimation Example
Author: Sam Schmidt
Last Run Successfully: Feb 9, 2026
Note: If you’re interested in running this in pipeline mode, see
06_GPz.ipynb
in the pipeline_examples/estimation_examples/ folder.
A quick demo of running GPz on the typical test data. You should have installed rail_gpz_v1 (we highly recommend that you do this from within a custom conda environment so that all dependencies for package versions are met), either by cloning and installing from github, or with:
pip install pz-rail-gpz-v1
As RAIL is a namespace package, installing rail_gpz_v1 will make
GPzInformer and GPzEstimator available, and they can be imported
via:
from rail.estimation.algos.gpz import GPzInformer, GPzEstimator
Let’s start with all of our necessary imports:
import matplotlib.pyplot as plt
import rail.interactive as ri
import tables_io
# find_rail_file is a convenience function that finds a file in the RAIL ecosystem We have several example data files that are copied with RAIL that we can use for our example run, let's grab those files, one for training/validation, and the other for testing:
from rail.utils.path_utils import find_rail_file
Install FSPS with the following commands:
pip uninstall fsps
git clone --recursive https://github.com/dfm/python-fsps.git
cd python-fsps
python -m pip install .
export SPS_HOME=$(pwd)/src/fsps/libfsps
LEPHAREDIR is being set to the default cache directory:
/home/runner/.cache/lephare/data
More than 1Gb may be written there.
LEPHAREWORK is being set to the default cache directory:
/home/runner/.cache/lephare/work
Default work cache is already linked.
This is linked to the run directory:
/home/runner/.cache/lephare/runs/20260504T123336
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.
If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.
Traceback (most recent call last): File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 196, in _run_module_as_main
return _run_code(code, main_globals, None,
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 86, in _run_code
exec(code, run_globals)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel_launcher.py", line 18, in <module>
app.launch_new_instance()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/traitlets/config/application.py", line 1075, in launch_instance
app.start()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelapp.py", line 758, in start
self.io_loop.start()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/tornado/platform/asyncio.py", line 211, in start
self.asyncio_loop.run_forever()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 603, in run_forever
self._run_once()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 1909, in _run_once
handle._run()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/events.py", line 80, in _run
self._context.run(self._callback, *self._args)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/utils.py", line 71, in preserve_context
return await f(*args, **kwargs)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 621, in shell_main
await self.dispatch_shell(msg, subshell_id=subshell_id)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 478, in dispatch_shell
await result
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 372, in execute_request
await super().execute_request(stream, ident, parent)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 834, in execute_request
reply_content = await reply_content
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 464, in do_execute
res = shell.run_cell(
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/zmqshell.py", line 663, in run_cell
return super().run_cell(*args, **kwargs)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3077, in run_cell
result = self._run_cell(
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3132, in _run_cell
result = runner(coro)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/async_helpers.py", line 128, in _pseudo_sync_runner
coro.send(None)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3336, in run_cell_async
has_raised = await self.run_ast_nodes(code_ast.body, cell_name,
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3519, in run_ast_nodes
if await self.run_code(code, result, async_=asy):
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3579, in run_code
exec(code_obj, self.user_global_ns, self.user_ns)
File "/tmp/ipykernel_8398/232514726.py", line 2, in <module>
import rail.interactive as ri
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/__init__.py", line 3, in <module>
from . import calib, creation, estimation, evaluation, tools
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/calib/__init__.py", line 3, in <module>
from rail.utils.interactive.initialize_utils import _initialize_interactive_module
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/initialize_utils.py", line 17, in <module>
from rail.utils.interactive.base_utils import (
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/base_utils.py", line 10, in <module>
rail.stages.import_and_attach_all(silent=True)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/stages/__init__.py", line 74, in import_and_attach_all
RailEnv.import_all_packages(silent=silent)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/core/introspection.py", line 541, in import_all_packages
_imported_module = importlib.import_module(pkg)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/importlib/__init__.py", line 126, in import_module
return _bootstrap._gcd_import(name[level:], package, level)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/som/__init__.py", line 1, in <module>
from rail.creation.degraders.specz_som import *
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/creation/degraders/specz_som.py", line 15, in <module>
from somoclu import Somoclu
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/__init__.py", line 11, in <module>
from .train import Somoclu
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/train.py", line 25, in <module>
from .somoclu_wrap import train as wrap_train
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/somoclu_wrap.py", line 11, in <module>
import _somoclu_wrap
---------------------------------------------------------------------------
ImportError Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/numpy/core/_multiarray_umath.py:44, in __getattr__(attr_name)
39 # Also print the message (with traceback). This is because old versions
40 # of NumPy unfortunately set up the import to replace (and hide) the
41 # error. The traceback shouldn't be needed, but e.g. pytest plugins
42 # seem to swallow it and we should be failing anyway...
43 sys.stderr.write(msg + tb_msg)
---> 44 raise ImportError(msg)
46 ret = getattr(_multiarray_umath, attr_name, None)
47 if ret is None:
ImportError:
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.
If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.
Warning: the binary library cannot be imported. You cannot train maps, but you can load and analyze ones that you have already saved.
The problem occurs because either compilation failed when you installed Somoclu or a path is missing from the dependencies when you are trying to import it. Please refer to the documentation to see your options.
trainFile = find_rail_file("examples_data/testdata/test_dc2_training_9816.hdf5")
testFile = find_rail_file("examples_data/testdata/test_dc2_validation_9816.hdf5")
training_data = tables_io.read(trainFile)
test_data = tables_io.read(testFile)
Now, we need to set up the stage that will run GPz. We begin by defining a dictionary with the config options for the algorithm. There are sensible defaults set, we will override several of these as an example of how to do this. Config parameters not set in the dictionary will automatically be set to their default values.
gpz_train_dict = dict(
n_basis=60,
trainfrac=0.8,
csl_method="normal",
max_iter=150,
hdf5_groupname="photometry",
)
We are now ready to run the stage to create the model. We will use the
training data from test_dc2_training_9816.hdf5, which contains
10,225 galaxies drawn from healpix 9816 from the cosmoDC2_v1.1.4
dataset, to train the model. Note that we read this data in called
train_data in the DataStore. Note that we set trainfrac to 0.8,
so 80% of the data will be used in the “main” training, but 20% will be
reserved by GPzInformer to determine a SIGMA parameter. We set
max_iter to 150, so we will see 150 steps where the stage tries to
maximize the likelihood. We run the stage as follows:
model = ri.estimation.algos.gpz.gpz_informer(
training_data=training_data, **gpz_train_dict
)["model"]
Inserting handle into data store. input: None, GPzInformer
ngal: 10225
training model...
Iter logML/n Train RMSE Train RMSE/n Valid RMSE Valid MLL Time
1 -3.3244299e-01 3.1633148e-01 -3.2214087e-01 3.3344968e-01 [-3.5601254e-01] 4.5086217e-01
2 -2.5851411e-01 3.0510344e-01 -2.3293516e-01 3.2165277e-01 [-2.8628639e-01] 2.2875237e-01
3 -2.1290591e-01 2.8427459e-01 -1.6856869e-01 3.0194439e-01 [-2.4466883e-01] 3.1807899e-01
4 -1.8921109e-01 2.6159315e-01 -1.4865398e-01 2.7931613e-01 -2.5689534e-01 1.6922545e-01
5 -9.4041011e-02 2.5443114e-01 -5.6978336e-02 2.6882378e-01 [-1.2641340e-01] 2.1776676e-01
6 -6.2379901e-02 2.4900499e-01 -2.9374428e-02 2.6436835e-01 [-8.4814668e-02] 1.9831944e-01
7 -4.1984334e-02 2.4579486e-01 -1.6312130e-02 2.5969275e-01 [-7.0999595e-02] 1.9452810e-01
8 -3.0675281e-02 2.4402470e-01 -8.7103812e-03 2.5736090e-01 [-6.3343608e-02] 1.8882847e-01
9 -1.4854586e-02 2.4105407e-01 3.9773003e-03 2.5454191e-01 [-5.1360933e-02] 1.9515824e-01
10 -3.5890328e-03 2.3879312e-01 1.2834816e-02 2.5330358e-01 -5.4543603e-02 1.9454694e-01
11 3.7661081e-03 2.3772396e-01 1.9151300e-02 2.5323280e-01 [-4.6946082e-02] 2.0162487e-01
12 6.1181452e-03 2.3724106e-01 2.1290830e-02 2.5282609e-01 [-4.4851071e-02] 1.9753337e-01
13 1.1024039e-02 2.3639568e-01 2.5959387e-02 2.5219297e-01 [-4.3732700e-02] 1.7006469e-01
14 5.1820292e-02 2.2905001e-01 6.9206765e-02 2.4747104e-01 [-1.6278542e-03] 3.1256342e-01
15 8.3794463e-02 2.2216396e-01 1.0448860e-01 2.3838256e-01 [ 5.5373918e-02] 3.1392884e-01
16 1.3917246e-01 2.1620410e-01 1.6197957e-01 2.3404479e-01 [ 1.1106555e-01] 2.1021962e-01
17 2.4738915e-01 2.1341759e-01 2.7633458e-01 2.3127873e-01 [ 2.0615264e-01] 2.0967412e-01
18 2.8270112e-01 2.1300132e-01 3.1501296e-01 2.2781854e-01 [ 2.3916032e-01] 2.1430707e-01
19 3.3329383e-01 2.0768706e-01 3.6720863e-01 2.2097547e-01 [ 2.9672047e-01] 2.1779799e-01
20 4.0487410e-01 2.0418037e-01 4.3882978e-01 2.1781190e-01 [ 3.7341454e-01] 2.0393872e-01
21 4.9604819e-01 2.0516252e-01 5.3166703e-01 2.1738590e-01 [ 4.7955838e-01] 2.0221686e-01
22 5.9067429e-01 1.9886132e-01 6.2951706e-01 2.1226596e-01 [ 5.8790490e-01] 2.0376062e-01
23 6.4614809e-01 1.9193535e-01 6.8818896e-01 2.0632687e-01 [ 6.5367962e-01] 2.0669699e-01
24 6.9031595e-01 1.8943092e-01 7.3219605e-01 2.0319697e-01 [ 7.1206913e-01] 2.1152687e-01
25 7.2816704e-01 1.8753855e-01 7.6935275e-01 2.0355005e-01 [ 7.4189952e-01] 1.8976259e-01
26 7.6917110e-01 1.9005624e-01 8.0951710e-01 2.0822844e-01 [ 7.6579756e-01] 1.9554353e-01
27 7.8512324e-01 1.9408235e-01 8.2489230e-01 2.0924704e-01 [ 7.8366850e-01] 1.9049120e-01
28 8.1801201e-01 1.8792102e-01 8.5876232e-01 2.0229939e-01 [ 8.2456301e-01] 2.0554543e-01
29 8.4260897e-01 1.8517753e-01 8.8460853e-01 1.9904912e-01 [ 8.4743752e-01] 1.9225073e-01
30 8.7079961e-01 1.8451889e-01 9.1420751e-01 1.9770010e-01 [ 8.7251591e-01] 1.9648147e-01
31 8.8881463e-01 1.8557757e-01 9.3206517e-01 1.9830576e-01 [ 8.9452586e-01] 2.0390582e-01
32 9.0254270e-01 1.8363586e-01 9.4602647e-01 1.9674007e-01 [ 9.0943535e-01] 1.7523074e-01
33 9.1827857e-01 1.8288074e-01 9.6188447e-01 1.9687288e-01 [ 9.2189596e-01] 1.9260001e-01
34 9.3825826e-01 1.8235973e-01 9.8294027e-01 1.9751930e-01 [ 9.4048665e-01] 1.9962931e-01
35 9.5062276e-01 1.8254562e-01 9.9672003e-01 1.9801857e-01 [ 9.5164624e-01] 1.9786763e-01
36 9.6529744e-01 1.8143997e-01 1.0114129e+00 1.9717425e-01 [ 9.6633796e-01] 1.8009281e-01
37 9.7615001e-01 1.8070591e-01 1.0225106e+00 1.9624143e-01 [ 9.7439610e-01] 2.0710206e-01
38 9.9052030e-01 1.7964663e-01 1.0372249e+00 1.9495250e-01 [ 9.8232825e-01] 1.7930698e-01
39 1.0034178e+00 1.7854095e-01 1.0506452e+00 1.9187578e-01 [ 9.9405542e-01] 1.9985652e-01
40 1.0156989e+00 1.7637892e-01 1.0628792e+00 1.8945345e-01 [ 1.0030173e+00] 2.0426822e-01
41 1.0233040e+00 1.7551666e-01 1.0705838e+00 1.8839304e-01 [ 1.0120371e+00] 2.1245551e-01
42 1.0343550e+00 1.7420190e-01 1.0821290e+00 1.8667592e-01 [ 1.0177864e+00] 2.0065856e-01
43 1.0444305e+00 1.7369029e-01 1.0925113e+00 1.8593069e-01 [ 1.0292158e+00] 1.9919538e-01
44 1.0519683e+00 1.7286878e-01 1.1001890e+00 1.8467317e-01 [ 1.0359448e+00] 1.9981670e-01
45 1.0597628e+00 1.7256269e-01 1.1080207e+00 1.8430035e-01 [ 1.0400318e+00] 1.9892073e-01
46 1.0673388e+00 1.7260642e-01 1.1158926e+00 1.8387782e-01 [ 1.0448587e+00] 1.9952941e-01
47 1.0722860e+00 1.7337493e-01 1.1209652e+00 1.8513676e-01 [ 1.0481981e+00] 2.1314311e-01
48 1.0766162e+00 1.7280588e-01 1.1251922e+00 1.8438854e-01 [ 1.0532379e+00] 2.1724296e-01
49 1.0836758e+00 1.7225203e-01 1.1324932e+00 1.8334789e-01 [ 1.0616634e+00] 2.0283246e-01
50 1.0897462e+00 1.7220110e-01 1.1388617e+00 1.8322535e-01 [ 1.0694114e+00] 2.0218801e-01
51 1.0996358e+00 1.7107515e-01 1.1495930e+00 1.8137473e-01 [ 1.0816871e+00] 2.0265055e-01
52 1.1080574e+00 1.7073747e-01 1.1582972e+00 1.8102952e-01 [ 1.0860715e+00] 2.0272589e-01
53 1.1128071e+00 1.7015153e-01 1.1629834e+00 1.8039842e-01 [ 1.0897516e+00] 1.8822145e-01
54 1.1216506e+00 1.6793872e-01 1.1722749e+00 1.7819165e-01 [ 1.0970968e+00] 2.0072222e-01
55 1.1259355e+00 1.6780860e-01 1.1770569e+00 1.7742796e-01 [ 1.1024817e+00] 1.9464803e-01
56 1.1314023e+00 1.6660587e-01 1.1824550e+00 1.7627407e-01 [ 1.1064781e+00] 2.0873499e-01
57 1.1365706e+00 1.6526947e-01 1.1878576e+00 1.7486072e-01 [ 1.1130300e+00] 1.9343042e-01
58 1.1406436e+00 1.6443584e-01 1.1920296e+00 1.7379974e-01 [ 1.1173187e+00] 2.0593476e-01
59 1.1483179e+00 1.6274598e-01 1.1999711e+00 1.7143404e-01 [ 1.1280753e+00] 2.0335817e-01
60 1.1538356e+00 1.6197107e-01 1.2056477e+00 1.7055273e-01 [ 1.1318713e+00] 2.0365310e-01
61 1.1584256e+00 1.6151392e-01 1.2101610e+00 1.7010954e-01 [ 1.1341858e+00] 2.0108676e-01
62 1.1644358e+00 1.6062166e-01 1.2162635e+00 1.6892399e-01 [ 1.1403933e+00] 2.0620179e-01
63 1.1694613e+00 1.5973878e-01 1.2213704e+00 1.6810684e-01 [ 1.1445319e+00] 1.9651461e-01
64 1.1736640e+00 1.5898165e-01 1.2257730e+00 1.6715936e-01 [ 1.1513442e+00] 2.0761132e-01
65 1.1802554e+00 1.5816419e-01 1.2321678e+00 1.6652846e-01 [ 1.1576525e+00] 2.1429896e-01
66 1.1841754e+00 1.5780862e-01 1.2359904e+00 1.6629087e-01 [ 1.1606753e+00] 2.1084023e-01
67 1.1916256e+00 1.5668758e-01 1.2436039e+00 1.6499237e-01 [ 1.1672791e+00] 1.9659758e-01
68 1.1939163e+00 1.5573279e-01 1.2466255e+00 1.6443119e-01 1.1640452e+00 1.9680691e-01
69 1.2028209e+00 1.5497287e-01 1.2552300e+00 1.6294152e-01 [ 1.1769581e+00] 2.1867800e-01
70 1.2066595e+00 1.5452506e-01 1.2590980e+00 1.6236374e-01 [ 1.1803275e+00] 1.9454980e-01
71 1.2123328e+00 1.5358514e-01 1.2649583e+00 1.6146894e-01 [ 1.1858899e+00] 2.0215964e-01
72 1.2191695e+00 1.5258582e-01 1.2718846e+00 1.6070251e-01 [ 1.1940018e+00] 2.1320701e-01
73 1.2215070e+00 1.5150869e-01 1.2749204e+00 1.6098654e-01 1.1916500e+00 1.9156551e-01
74 1.2323104e+00 1.5086486e-01 1.2853604e+00 1.5958726e-01 [ 1.2043430e+00] 2.0195651e-01
75 1.2361573e+00 1.5054723e-01 1.2892020e+00 1.5889585e-01 [ 1.2086211e+00] 2.0812249e-01
76 1.2425904e+00 1.4983868e-01 1.2959170e+00 1.5769714e-01 [ 1.2131730e+00] 2.0893431e-01
77 1.2502607e+00 1.4911662e-01 1.3041803e+00 1.5656454e-01 [ 1.2142183e+00] 2.0294476e-01
78 1.2574631e+00 1.4851120e-01 1.3118340e+00 1.5561213e-01 [ 1.2150631e+00] 2.1345663e-01
79 1.2636247e+00 1.4835363e-01 1.3179012e+00 1.5595126e-01 [ 1.2191313e+00] 2.0772672e-01
80 1.2703026e+00 1.4804565e-01 1.3247079e+00 1.5624389e-01 [ 1.2227878e+00] 2.0363903e-01
81 1.2761993e+00 1.4750612e-01 1.3305773e+00 1.5619445e-01 [ 1.2270418e+00] 2.0342302e-01
82 1.2831923e+00 1.4649392e-01 1.3377120e+00 1.5569909e-01 [ 1.2288749e+00] 1.9854760e-01
83 1.2884292e+00 1.4586182e-01 1.3428656e+00 1.5514582e-01 [ 1.2324751e+00] 2.0392656e-01
84 1.2949941e+00 1.4498748e-01 1.3495043e+00 1.5422305e-01 [ 1.2358788e+00] 2.1520185e-01
85 1.2994062e+00 1.4479786e-01 1.3541751e+00 1.5400239e-01 [ 1.2383210e+00] 2.0394015e-01
86 1.3034784e+00 1.4461935e-01 1.3581744e+00 1.5409354e-01 [ 1.2409623e+00] 2.0307994e-01
87 1.3080140e+00 1.4464746e-01 1.3627455e+00 1.5417960e-01 [ 1.2430477e+00] 2.0307326e-01
88 1.3127941e+00 1.4464679e-01 1.3675326e+00 1.5405252e-01 [ 1.2466289e+00] 1.9784570e-01
89 1.3172243e+00 1.4500545e-01 1.3723859e+00 1.5454344e-01 1.2447868e+00 2.1191907e-01
90 1.3234112e+00 1.4488507e-01 1.3784294e+00 1.5374477e-01 [ 1.2507286e+00] 2.0536566e-01
91 1.3263269e+00 1.4460394e-01 1.3813242e+00 1.5328812e-01 [ 1.2538200e+00] 2.1018553e-01
92 1.3305352e+00 1.4406446e-01 1.3857129e+00 1.5275728e-01 [ 1.2560648e+00] 2.1338940e-01
93 1.3342971e+00 1.4372093e-01 1.3897259e+00 1.5242934e-01 [ 1.2604116e+00] 2.0790315e-01
94 1.3389164e+00 1.4335949e-01 1.3944387e+00 1.5244180e-01 [ 1.2626817e+00] 2.0830989e-01
95 1.3439420e+00 1.4316927e-01 1.3996529e+00 1.5277209e-01 [ 1.2635443e+00] 2.0665598e-01
96 1.3475376e+00 1.4307391e-01 1.4033084e+00 1.5305779e-01 [ 1.2640467e+00] 1.7946887e-01
97 1.3506647e+00 1.4316276e-01 1.4067262e+00 1.5367970e-01 [ 1.2641267e+00] 2.0551634e-01
98 1.3552008e+00 1.4308295e-01 1.4110453e+00 1.5348973e-01 [ 1.2683725e+00] 2.1160555e-01
99 1.3574469e+00 1.4289755e-01 1.4131772e+00 1.5313383e-01 [ 1.2728298e+00] 2.0533371e-01
100 1.3623954e+00 1.4228238e-01 1.4181642e+00 1.5229379e-01 [ 1.2797494e+00] 1.8489623e-01
101 1.3673510e+00 1.4125870e-01 1.4232356e+00 1.5135603e-01 [ 1.2872076e+00] 1.8669248e-01
102 1.3720447e+00 1.4044149e-01 1.4280458e+00 1.5031462e-01 [ 1.2909030e+00] 1.7188311e-01
103 1.3751773e+00 1.4005820e-01 1.4312195e+00 1.5014876e-01 [ 1.2918406e+00] 2.0858598e-01
104 1.3792860e+00 1.3940408e-01 1.4355362e+00 1.4980666e-01 [ 1.2922829e+00] 2.0834136e-01
105 1.3825439e+00 1.3871326e-01 1.4389517e+00 1.4947319e-01 1.2918264e+00 1.9739556e-01
106 1.3865273e+00 1.3816745e-01 1.4430129e+00 1.4911343e-01 [ 1.2952161e+00] 2.0632720e-01
107 1.3914024e+00 1.3770940e-01 1.4479739e+00 1.4901544e-01 [ 1.2986971e+00] 2.1349072e-01
108 1.3936453e+00 1.3744314e-01 1.4502633e+00 1.4879980e-01 [ 1.3025479e+00] 2.1504331e-01
109 1.3963141e+00 1.3727006e-01 1.4529081e+00 1.4877896e-01 [ 1.3040352e+00] 2.0003438e-01
110 1.4015950e+00 1.3695088e-01 1.4582474e+00 1.4898336e-01 1.3020891e+00 1.9170356e-01
111 1.4051561e+00 1.3645324e-01 1.4619376e+00 1.4861969e-01 1.3008224e+00 2.0668983e-01
112 1.4095488e+00 1.3578926e-01 1.4665845e+00 1.4848693e-01 1.2909500e+00 2.1279645e-01
113 1.4136506e+00 1.3543269e-01 1.4706715e+00 1.4769142e-01 1.2967799e+00 2.0515347e-01
114 1.4161709e+00 1.3530460e-01 1.4731568e+00 1.4739737e-01 1.3001897e+00 2.0977068e-01
115 1.4203121e+00 1.3473307e-01 1.4775182e+00 1.4679518e-01 1.3012082e+00 2.1584225e-01
116 1.4225265e+00 1.3436500e-01 1.4798860e+00 1.4642232e-01 1.2957433e+00 2.1051669e-01
117 1.4256383e+00 1.3424252e-01 1.4829533e+00 1.4644672e-01 1.2979117e+00 1.9369507e-01
118 1.4279463e+00 1.3412122e-01 1.4852789e+00 1.4645784e-01 1.2980393e+00 1.9943333e-01
119 1.4296905e+00 1.3402700e-01 1.4870438e+00 1.4637469e-01 1.2983885e+00 2.0292950e-01
120 1.4324633e+00 1.3377529e-01 1.4898870e+00 1.4583243e-01 1.3011444e+00 1.8068790e-01
121 1.4351927e+00 1.3352343e-01 1.4926538e+00 1.4535227e-01 [ 1.3041251e+00] 1.9849253e-01
122 1.4381189e+00 1.3328629e-01 1.4955808e+00 1.4478370e-01 [ 1.3074836e+00] 1.9919610e-01
123 1.4412985e+00 1.3290374e-01 1.4988195e+00 1.4422543e-01 [ 1.3101932e+00] 1.8700647e-01
124 1.4438567e+00 1.3273856e-01 1.5014557e+00 1.4405394e-01 1.3087364e+00 2.0393038e-01
125 1.4460391e+00 1.3259789e-01 1.5035756e+00 1.4411160e-01 [ 1.3105543e+00] 1.9834948e-01
126 1.4487357e+00 1.3240937e-01 1.5062512e+00 1.4432402e-01 [ 1.3110495e+00] 2.0599389e-01
127 1.4515361e+00 1.3230590e-01 1.5090618e+00 1.4441622e-01 [ 1.3133354e+00] 2.0098591e-01
128 1.4544931e+00 1.3241181e-01 1.5122325e+00 1.4499549e-01 1.3108491e+00 1.9993019e-01
129 1.4580227e+00 1.3227509e-01 1.5156744e+00 1.4459491e-01 [ 1.3168775e+00] 2.0301199e-01
130 1.4596733e+00 1.3220255e-01 1.5173258e+00 1.4431254e-01 [ 1.3182598e+00] 1.7296648e-01
131 1.4625563e+00 1.3201066e-01 1.5203222e+00 1.4394425e-01 1.3179823e+00 1.9963241e-01
132 1.4631065e+00 1.3189900e-01 1.5212260e+00 1.4372610e-01 1.3125054e+00 2.0673847e-01
133 1.4669796e+00 1.3172295e-01 1.5249590e+00 1.4373017e-01 1.3136369e+00 2.0396924e-01
134 1.4683284e+00 1.3162972e-01 1.5262851e+00 1.4378306e-01 1.3137364e+00 1.9906044e-01
135 1.4707897e+00 1.3145555e-01 1.5288142e+00 1.4380657e-01 1.3117279e+00 2.0272112e-01
136 1.4731730e+00 1.3110527e-01 1.5313472e+00 1.4346457e-01 1.3096032e+00 1.8380833e-01
137 1.4760920e+00 1.3097267e-01 1.5343407e+00 1.4340002e-01 1.3061875e+00 1.9741344e-01
138 1.4783250e+00 1.3081777e-01 1.5365809e+00 1.4315431e-01 1.3039213e+00 1.8927789e-01
139 1.4810667e+00 1.3047258e-01 1.5393696e+00 1.4270537e-01 1.3016410e+00 2.0180702e-01
140 1.4828751e+00 1.3021464e-01 1.5413148e+00 1.4246594e-01 1.2841010e+00 2.1573853e-01
141 1.4852377e+00 1.3011229e-01 1.5435744e+00 1.4245475e-01 1.2900964e+00 2.1027589e-01
142 1.4871263e+00 1.2998948e-01 1.5454668e+00 1.4248952e-01 1.2908816e+00 1.8704748e-01
143 1.4889817e+00 1.2990169e-01 1.5473748e+00 1.4255775e-01 1.2875678e+00 2.1115422e-01
144 1.4902714e+00 1.2989088e-01 1.5489175e+00 1.4257233e-01 1.2830154e+00 1.9955516e-01
145 1.4933198e+00 1.2981546e-01 1.5518923e+00 1.4261589e-01 1.2779877e+00 1.9759774e-01
146 1.4946042e+00 1.2981111e-01 1.5531550e+00 1.4255088e-01 1.2782460e+00 2.0360732e-01
147 1.4965395e+00 1.2977617e-01 1.5551615e+00 1.4244832e-01 1.2757887e+00 1.9873095e-01
148 1.4985995e+00 1.2960234e-01 1.5573703e+00 1.4213012e-01 1.2729585e+00 2.1247172e-01
149 1.5012418e+00 1.2961075e-01 1.5600864e+00 1.4215943e-01 1.2676856e+00 2.0473313e-01
150 1.5029741e+00 1.2959342e-01 1.5618006e+00 1.4216670e-01 1.2676207e+00 2.0645308e-01
Inserting handle into data store. model: inprogress_model.pkl, GPzInformer
This should have taken about 30 seconds on a typical desktop computer,
and you should now see a file called GPz_model.pkl in the directory.
This model file is used by the GPzEstimator stage to determine our
redshift PDFs for the test set of galaxies. Let’s set up that stage,
again defining a dictionary of variables for the config params:
gpz_test_dict = dict(hdf5_groupname="photometry", model=model)
Let’s run the stage and compute photo-z’s for our test set:
results = ri.estimation.algos.gpz.gpz_estimator(input_data=test_data, **gpz_test_dict)
Inserting handle into data store. input: None, GPzEstimator
Inserting handle into data store. model: <rail.estimation.algos._gpz_util.GP object at 0x7fd514d33a60>, GPzEstimator
Process 0 running estimator on chunk 0 - 20,449
Process 0 estimating GPz PZ PDF for rows 0 - 20,449
Inserting handle into data store. output: inprogress_output.hdf5, GPzEstimator
This should be very fast, under a second for our 20,449 galaxies in the
test set. Now, let’s plot a scatter plot of the point estimates, as well
as a few example PDFs. We can get access to the qp ensemble that was
written via the DataStore via results()
ens = results["output"]
expdfids = [2, 180, 13517, 18032]
fig, axs = plt.subplots(4, 1, figsize=(12, 10))
for i, xx in enumerate(expdfids):
axs[i].set_xlim(0, 3)
ens[xx].plot_native(axes=axs[i])
axs[3].set_xlabel("redshift", fontsize=15)
Text(0.5, 0, 'redshift')

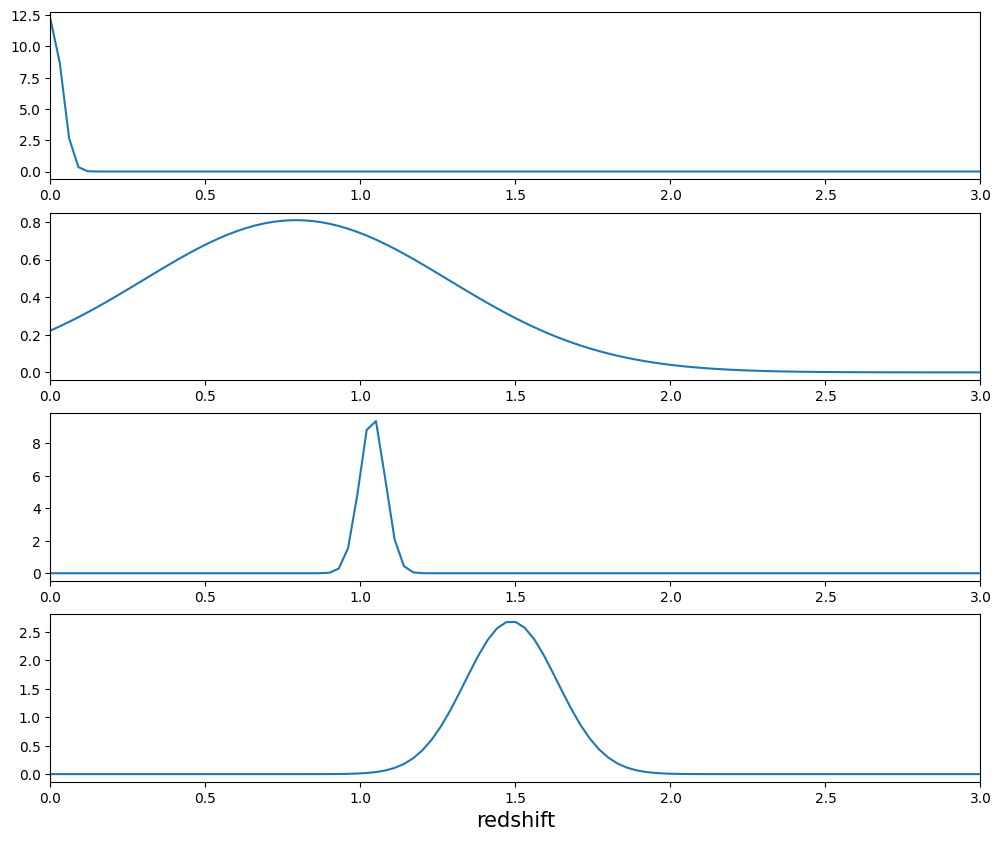

GPzEstimator parameterizes each PDF as a single Gaussian, here we see a few examples of Gaussians of different widths. Now let’s grab the mode of each PDF (stored as ancil data in the ensemble) and compare to the true redshifts from the test_data file:
truez = test_data["photometry"]["redshift"]
zmode = ens.ancil["zmode"].flatten()
plt.figure(figsize=(12, 12))
plt.scatter(truez, zmode, s=3)
plt.plot([0, 3], [0, 3], "k--")
plt.xlabel("redshift", fontsize=12)
plt.ylabel("z mode", fontsize=12)
Text(0, 0.5, 'z mode')
