Running RAIL with a different dataset
Authors: Sam Schmidt
Last run successfully: Feb 9, 2026
This is a notebook with a quick example of running a rail algoritm
with a different dataset and overriding configuration parameters.
Most of our other demo notebooks use small datasets included with the
RAIL demo package, all with the same input names. These datasets are
named consistently with many of the default parameter values used in
RAIL, e.g. hdf5_groupname="photometry" and ugrizy photometry named
in a pattern "mag_{band}_lsst", often specified in
SHARED_PARAMS.
This notebook will just show a quick run with an alternate dataset, showing the values that users will likely need to change in order to get things running.
Note: If you’re interested in running this in pipeline mode, see
16_Running_with_different_data.ipynb
in the pipeline_examples/estimation_examples/ folder.
import os
from pathlib import Path
import matplotlib.pyplot as plt
import tables_io
from rail import interactive as ri
DOWNLOADS_DIR = Path("../examples_data")
DOWNLOADS_DIR.mkdir(exist_ok=True)
Install FSPS with the following commands:
pip uninstall fsps
git clone --recursive https://github.com/dfm/python-fsps.git
cd python-fsps
python -m pip install .
export SPS_HOME=$(pwd)/src/fsps/libfsps
LEPHAREDIR is being set to the default cache directory:
/home/runner/.cache/lephare/data
More than 1Gb may be written there.
LEPHAREWORK is being set to the default cache directory:
/home/runner/.cache/lephare/work
Default work cache is already linked.
This is linked to the run directory:
/home/runner/.cache/lephare/runs/20260504T123336
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.
If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.
Traceback (most recent call last): File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 196, in _run_module_as_main
return _run_code(code, main_globals, None,
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/runpy.py", line 86, in _run_code
exec(code, run_globals)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel_launcher.py", line 18, in <module>
app.launch_new_instance()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/traitlets/config/application.py", line 1075, in launch_instance
app.start()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelapp.py", line 758, in start
self.io_loop.start()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/tornado/platform/asyncio.py", line 211, in start
self.asyncio_loop.run_forever()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 603, in run_forever
self._run_once()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/base_events.py", line 1909, in _run_once
handle._run()
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/asyncio/events.py", line 80, in _run
self._context.run(self._callback, *self._args)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/utils.py", line 71, in preserve_context
return await f(*args, **kwargs)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 621, in shell_main
await self.dispatch_shell(msg, subshell_id=subshell_id)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 478, in dispatch_shell
await result
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 372, in execute_request
await super().execute_request(stream, ident, parent)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/kernelbase.py", line 834, in execute_request
reply_content = await reply_content
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/ipkernel.py", line 464, in do_execute
res = shell.run_cell(
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/ipykernel/zmqshell.py", line 663, in run_cell
return super().run_cell(*args, **kwargs)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3077, in run_cell
result = self._run_cell(
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3132, in _run_cell
result = runner(coro)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/async_helpers.py", line 128, in _pseudo_sync_runner
coro.send(None)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3336, in run_cell_async
has_raised = await self.run_ast_nodes(code_ast.body, cell_name,
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3519, in run_ast_nodes
if await self.run_code(code, result, async_=asy):
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/IPython/core/interactiveshell.py", line 3579, in run_code
exec(code_obj, self.user_global_ns, self.user_ns)
File "/tmp/ipykernel_4826/3836591137.py", line 7, in <module>
from rail import interactive as ri
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/__init__.py", line 3, in <module>
from . import calib, creation, estimation, evaluation, tools
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/interactive/calib/__init__.py", line 3, in <module>
from rail.utils.interactive.initialize_utils import _initialize_interactive_module
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/initialize_utils.py", line 17, in <module>
from rail.utils.interactive.base_utils import (
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/utils/interactive/base_utils.py", line 10, in <module>
rail.stages.import_and_attach_all(silent=True)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/stages/__init__.py", line 74, in import_and_attach_all
RailEnv.import_all_packages(silent=silent)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/core/introspection.py", line 541, in import_all_packages
_imported_module = importlib.import_module(pkg)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/importlib/__init__.py", line 126, in import_module
return _bootstrap._gcd_import(name[level:], package, level)
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/som/__init__.py", line 1, in <module>
from rail.creation.degraders.specz_som import *
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/creation/degraders/specz_som.py", line 15, in <module>
from somoclu import Somoclu
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/__init__.py", line 11, in <module>
from .train import Somoclu
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/train.py", line 25, in <module>
from .somoclu_wrap import train as wrap_train
File "/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/somoclu/somoclu_wrap.py", line 11, in <module>
import _somoclu_wrap
---------------------------------------------------------------------------
ImportError Traceback (most recent call last)
File /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/numpy/core/_multiarray_umath.py:44, in __getattr__(attr_name)
39 # Also print the message (with traceback). This is because old versions
40 # of NumPy unfortunately set up the import to replace (and hide) the
41 # error. The traceback shouldn't be needed, but e.g. pytest plugins
42 # seem to swallow it and we should be failing anyway...
43 sys.stderr.write(msg + tb_msg)
---> 44 raise ImportError(msg)
46 ret = getattr(_multiarray_umath, attr_name, None)
47 if ret is None:
ImportError:
A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.
If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.
Warning: the binary library cannot be imported. You cannot train maps, but you can load and analyze ones that you have already saved.
The problem occurs because either compilation failed when you installed Somoclu or a path is missing from the dependencies when you are trying to import it. Please refer to the documentation to see your options.
First, we’ll start with grabbing some small datasets from NERSC, a tar file with some data drawn from the Roman-Rubin simulation:
training_file = DOWNLOADS_DIR / "romanrubin_demo_data.tar"
if not os.path.exists(training_file):
os.system(
f"curl -O https://portal.nersc.gov/cfs/lsst/PZ/romanrubin_demo_data.tar --create-dirs --output-dir {DOWNLOADS_DIR}"
)
os.system(f"tar -xvf {training_file} --directory {DOWNLOADS_DIR}")
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
romanrubin_train_data.hdf5
romanrubin_test_data.hdf5
34 4670k 34 1611k 0 0 1969k 0 0:00:02 --:--:-- 0:00:02 1967k
100 4670k 100 4670k 0 0 4687k 0 –:–:– –:–:– –:–:– 4684k
0
Let’s load one of the files and look at the contents:
trainFile = DOWNLOADS_DIR / "romanrubin_train_data.hdf5"
training_data = tables_io.read(trainFile)
training_data.keys()
odict_keys(['H', 'H_err', 'J', 'J_err', 'g', 'g_err', 'i', 'i_err', 'r', 'r_err', 'redshift', 'u', 'u_err', 'y', 'y_err', 'z', 'z_err'])
We can see that, unlike the demo data in other notebooks, there is no
top level hdf5_groupname of “photometry”, the data is directly in the
top level of the hdf5 file. As such, we will need to specify
hdf5_groupname="" to override the default value of "photometry"
in RAIL.
We also see that the magnitudes and errors are simply named with the
band name, e.g. "u" rather than "mag_u_lsst". Again, we will
need to specify the band and error names in order to override the
defaults in RAIL. Let’s do that below, using the KNearNeighInformer and
Estimator algorithms:
testFile = DOWNLOADS_DIR / "romanrubin_test_data.hdf5"
test_data = tables_io.read(testFile)
The dataset-specific parameters
We will need to specify several parameters to override the default
values in RAIL, we can create a dictionary of these and pass those into
the make_stage for our informer. Because we have Roman J and H, we
will also demonstrate running with 8 bands rather than the default six.
RAIL requires that we specify the names of the input columns as
bands, and the input errors on those as err_bands. Most
algorithms also require a ref_band. To handle non-detections, RAIL
uses a dictionary of mag_limits which must contain keys for all of
the columns in bands and a float for the value with which the
non-detect will be replaced. You may also need to specify a different
nondetect_val if the dataset has a different convention for
non-detections (in this dataset, our non-detetions have a value of
np.inf).
NOTE: RAIL uses SHARED_PARAMS, a central location for specifying
a subset of parameters that are common to a dataset, and setting them in
one place when running multiple algorithms. However, any configuration
parameters specified as SHARED_PARAMS can be overridden in the same
way as any other parameter, there is nothing special about them, and we
will do that here with bands, err_bands, etc…
Let’s set up our dictionary with these values:
bands = ["u", "g", "r", "i", "z", "y", "J", "H"]
errbands = []
maglims = {}
limvals = [27.8, 29.0, 29.1, 28.6, 28.0, 27.0, 26.4, 26.4]
for band, limval in zip(bands, limvals):
errbands.append(f"{band}_err")
maglims[band] = limval
print(bands)
print(errbands)
print(maglims)
['u', 'g', 'r', 'i', 'z', 'y', 'J', 'H']
['u_err', 'g_err', 'r_err', 'i_err', 'z_err', 'y_err', 'J_err', 'H_err']
{'u': 27.8, 'g': 29.0, 'r': 29.1, 'i': 28.6, 'z': 28.0, 'y': 27.0, 'J': 26.4, 'H': 26.4}
knn_dict = dict(
hdf5_groupname="", bands=bands, err_bands=errbands, mag_limits=maglims, ref_band="i"
)
We can now feed this into our inform stage:
pz_model = ri.estimation.algos.k_nearneigh.k_near_neigh_informer(
training_data=training_data, **knn_dict
)["model"]
Inserting handle into data store. input: None, KNearNeighInformer
split into 11250 training and 3750 validation samples
finding best fit sigma and NNeigh...
best fit values are sigma=0.017222222222222222 and numneigh=7
Inserting handle into data store. model: inprogress_model.pkl, KNearNeighInformer
We can use the same dictionary to specify overrides for the estimator stage:
results = ri.estimation.algos.k_nearneigh.k_near_neigh_estimator(
input_data=test_data, model=pz_model, **knn_dict
)
Inserting handle into data store. input: None, KNearNeighEstimator
Inserting handle into data store. model: {'kdtree': <sklearn.neighbors._kd_tree.KDTree object at 0x562e56708600>, 'bestsig': np.float64(0.017222222222222222), 'nneigh': 7, 'truezs': array([0.61988401, 1.74063779, 1.08068781, ..., 0.25938554, 0.92907312,
2.84295586], shape=(15000,)), 'only_colors': False}, KNearNeighEstimator
Process 0 running estimator on chunk 0 - 20,000
Process 0 estimating PZ PDF for rows 0 - 20,000
Inserting handle into data store. output: inprogress_output.hdf5, KNearNeighEstimator

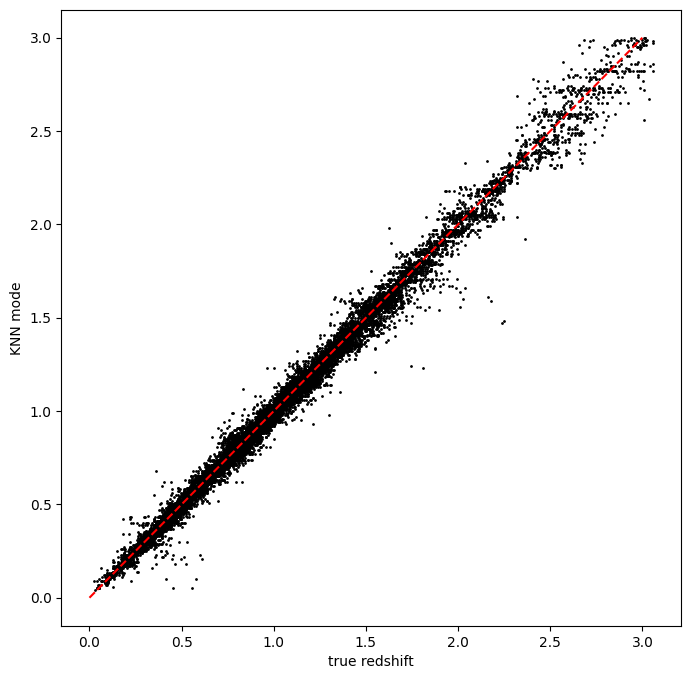

Let’s plot the mode vs the true redshift to make sure that things ran properly:
zmode = results["output"].ancil["zmode"].flatten()
Let’s plot the redshift mode against the true redshifts to see how they look:
plt.figure(figsize=(8, 8))
plt.scatter(test_data["redshift"], zmode, s=1, c="k", label="KNN mode")
plt.plot([0, 3], [0, 3], "r--")
plt.xlabel("true redshift")
plt.ylabel("KNN mode")
Text(0, 0.5, 'KNN mode')
Yes, things look very nice, and the inclusion of NIR photometry gives us very little scatter and very few outliers!
Clean up downloaded files
for file in [training_file, trainFile, testFile]:
file.unlink()
