Running BPZliteEstimator with a custom set of SEDs
Authors: Sam Schmidt
Last Successfully Run: Nov 14, 2023
This notebook will go through an example of running rail_bpz estimate and inform stages with a custom set of SEDs.
NOTE: the SEDs used in this example are SPECIFIC to DESC’s cosmoDC2_v1.1.4 data, they contain some non-physical features that would add systematics if run on any real data! DO NOT USE THESE TEMPLATES FOR ANY SCIENCE WITH REAL DATA!
A set of nine SED templates (the non-physical ones from the unfriendly
warning above) are included as a tarfile named
nonphysical_dc2_templates.tar, and are named like
DC2_DONOTUSE_El1.sed, DC2_DONOTUSE_Sp1.sed, and
DC2_DONOTUSE_Im1.sed. Here, El is for “elliptical”, Sp is
for “spiral”, and Im is for “irregular”. This dummy set contains two
ellipticals, three spirals, and four irregular SED templates. These
templates are not the optimal templates, they are a subset of a larger
set that roughly spans the color/type range expected for DC2. The
tarball also contains a file containing a list of all nine names that is
needed by DESC_BPZ, a file named baddc2templates.list (you may
be able to tell from the names that we really don’t want you to use
these SEDs anywhere outside of this demo). In order for rail_bpz to be
able to use these templates, we must move them to the directory where it
expects to find all of the SEDs. The default is to define this relative
to RAILDIR within RAIL, so let’s do that:
action needed before running the notebook:
To download the tarfile from NERSC, execute the cli get-data command
for bpz demo data:
!rail get-data --bpz-demo-data
Downloading BPZ demo data...
(Note: you can run get-data without the bpz-demo-data flag to download standard data.)
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
- 100 450k 100 450k 0 0 620k 0 –:–:– –:–:– –:–:– 620k
- % Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 –:–:– –:–:– –:–:– 0
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
- 100 83848 100 83848 0 0 201k 0 –:–:– –:–:– –:–:– 201k
- % Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 –:–:– –:–:– –:–:– 0
100 83848 100 83848 0 0 338k 0 –:–:– –:–:– –:–:– 339k
The files must be untarred and moved, as well:
from rail.utils.path_utils import RAILDIR
import os
custom_data_path = RAILDIR + '/rail/examples_data/estimation_data/data'
sedpath = RAILDIR + '/rail/examples_data/estimation_data/data/SED'
tarpath = RAILDIR + '/rail/examples_data/estimation_data/data/nonphysical_dc2_templates.tar'
os.environ['tempbpzsedpath'] = sedpath
os.environ['tempbpztarpath'] = tarpath
!tar -xvf $tempbpztarpath
!mv DC2_DONOTUSE*.sed $tempbpzsedpath
!mv baddc2templates.list $tempbpzsedpath
baddc2templates.list
DC2_DONOTUSE_El1.sed
DC2_DONOTUSE_El2.sed
DC2_DONOTUSE_Im1.sed
DC2_DONOTUSE_Im2.sed
DC2_DONOTUSE_Im3.sed
DC2_DONOTUSE_Im4.sed
DC2_DONOTUSE_Sp1.sed
DC2_DONOTUSE_Sp2.sed
DC2_DONOTUSE_Sp3.sed
!echo $tempbpzsedpath
/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/SED
This should have successfully copied the files to the proper SED
directory. Now, we can proceed in the same manner that we did in the
02_BPZ_lite.ipynb notebook:
import os
import qp
import tables_io
import pickle
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import desc_bpz
from rail.core.data import TableHandle
from rail.core.stage import RailStage
from rail.estimation.algos.bpz_lite import BPZliteInformer, BPZliteEstimator
First, let’s grab the training and test data files that we will use in this example, they are included with RAIL, so we can access their location via the RAILDIR path. Both file contain data drawn from the cosmoDC2_v1.1.4 truth extragalactic catalog generated by DESC with model 10-year-depth magnitude uncertainties. The training data contains roughly 10,000 galaxies, while the test data contains roughly 20,000. Both sets are representative down to a limiting apparent magnitude.
trainFile = os.path.join(RAILDIR, 'rail/examples_data/testdata/test_dc2_training_9816.hdf5')
testFile = os.path.join(RAILDIR, 'rail/examples_data/testdata/test_dc2_validation_9816.hdf5')
training_data = tables_io.read(trainFile)
test_data = tables_io.read(testFile)
BPZliteInformer: training a custom prior with our new SEDs
We will run the inform stage just as we did in the main demo notebook;
however, we will have to define a few extra configuration parameters in
order to tell BPZliteInformer to use our new SEDs. We specify the SED
set using the spectra_file configuration parameter, which points to
an ascii file that contains the names of the SEDs, which must be sorted
in the same order as the “broad type array” (usually done in ascending
rest-frame “blueness”, that is Elliptical red galaxies first, then
increasingly blue galaxies). In this case, the tar file that we copied
to the SED directory contained this file, named
baddc2templates.list. As before, we need a “best fit type” for each
of the galaxies in our training set. And, as before, this has been
computed separately (computing best type within rail_bpz will be added
in the future). The best fit broad types are available in a dictionary
stored in the file test_dc2_train_customtemp_broadttypes.hdf5, which
we will point to with the type_file config parameter. This file
should already exist in this directory. As stated above, we have two
Elliptical, three Spiral, and four Irregular/Starburst seds, so we’ll
set the nt_array configuration parameter to a list [2, 3, 4] to
specify those numbers of the three broad types.
train_dict = dict(hdf5_groupname="photometry", model="test_9816_customsed_demo_prior.pkl",
spectra_file="baddc2templates.list",
type_file=os.path.join(RAILDIR, "rail/examples_data/estimation_data/data/test_dc2_train_customtemp_broadttypes.hdf5"),
prior_band="mag_i_lsst",
nt_array=[2,3,4], output_hdfn=False)
run_bpz_train = BPZliteInformer.make_stage(name="bpz_custom_sed_prior", **train_dict)
%%time
run_bpz_train.inform(training_data)
Inserting handle into data store. input: None, bpz_custom_sed_prior
using 10213 galaxies in calculation
best values for fo and kt:
[0.5538811 0.41290803]
[0.42501231 0.0116699 ]
minimizing for type 0
best fit z0, alpha, km for type 0: [0.28089894 1.68880761 0.0655626 ]
minimizing for type 1
best fit z0, alpha, km for type 1: [0.34557593 1.73745454 0.06583076]
minimizing for type 2
best fit z0, alpha, km for type 2: [0.5679393 2.23510956 0.11549469]
Inserting handle into data store. model_bpz_custom_sed_prior: inprogress_test_9816_customsed_demo_prior.pkl, bpz_custom_sed_prior
CPU times: user 9.52 s, sys: 244 μs, total: 9.52 s
Wall time: 9.51 s
<rail.core.data.ModelHandle at 0x7f8e205eb8e0>
So, we’ve created a new prior named
test_9816_customsed_demo_prior.pkl which should have appeared in
this directory. We can visualize the prior using the prior_function
function from DESC_BPZ to generate prior values for our broad types. We
can compare our new prior to that of the default HDFN prior that we ran
initially. The model files simply store a set of parameters in a
dictionary that prior_function uses to produce the prior values.
NOTE: if you want to learn the meaning of these parameters, you can read the original BPZ paper, Benitez (2000) here: https://ui.adsabs.harvard.edu/abs/2000ApJ…536..571B/abstract
from desc_bpz.prior_from_dict import prior_function
hdfnfile = os.path.join(RAILDIR, "rail/examples_data/estimation_data/data/CWW_HDFN_prior.pkl")
with open(hdfnfile, "rb") as f:
hdfnmodel = pickle.load(f)
hdfnmodel
{'fo_arr': array([0.35, 0.5 ]),
'kt_arr': array([0.45 , 0.147]),
'zo_arr': array([0.431 , 0.39 , 0.0626]),
'km_arr': array([0.0913, 0.0636, 0.123 ]),
'a_arr': array([2.465, 1.806, 0.906]),
'mo': 20.0,
'nt_array': [1, 2, 5]}
with open("test_9816_customsed_demo_prior.pkl", "rb") as f:
newmodel = pickle.load(f)
newmodel
{'fo_arr': array([0.5538811 , 0.41290803]),
'kt_arr': array([0.42501231, 0.0116699 ]),
'zo_arr': array([0.28089894, 0.34557593, 0.5679393 ]),
'km_arr': array([0.0655626 , 0.06583076, 0.11549469]),
'a_arr': array([1.68880761, 1.73745454, 2.23510956]),
'mo': 20.0,
'nt_array': [2, 3, 4]}
prior_with_dict takes four arguments: a redshift grid, a magnitude
(it is an apparent magnitude-dependent prior), the modeldict, and the
number of templates in our SED set as arguments. Let’s generate priors
for mag=23, and then for mag=25:
zgrid=np.linspace(0,3,301)
defprior20 = prior_function(zgrid, 20., hdfnmodel, 8)
defprior23 = prior_function(zgrid, 23., hdfnmodel, 8)
defprior25 = prior_function(zgrid, 25., hdfnmodel, 8)
newprior23 = prior_function(zgrid, 23., newmodel, 8)
newprior25 = prior_function(zgrid, 25., newmodel, 8)
newprior20 = prior_function(zgrid, 20., newmodel, 8)

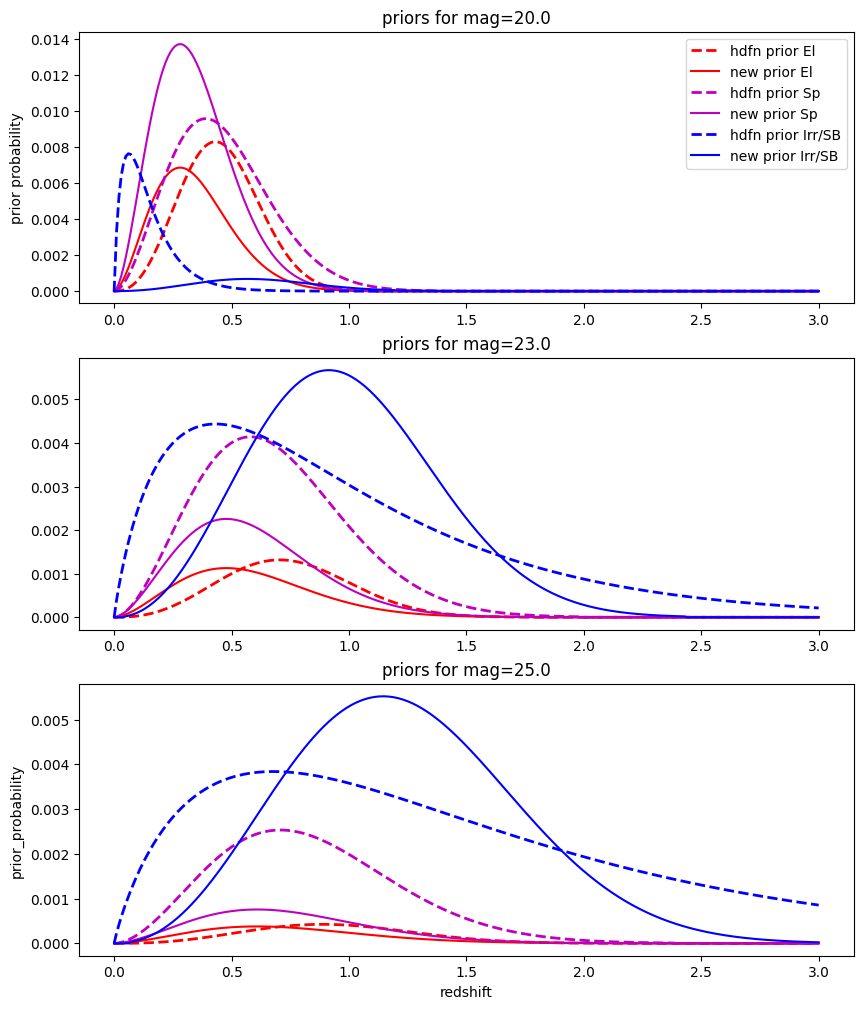

We will plot the prior for the elliptical, one spiral, and one irregular to compare. Note the BPZ divides up the probability in each broad type equally amongst the N templates in that broad type, so we will multiply by that number to get the total prior probability for the entire broad type, in our case 1 Elliptical SED, 2 Spiral SEDs, and 5 Irr/SB SEDs:
seddict = {'El': 0, 'Sp': 1, 'Irr/SB': 7}
multiplier = [1.0, 2.0, 5.0]
sedcol = ['r', 'm', 'b']
fig, (axs, axs2, axs3) = plt.subplots(3, 1, figsize=(10,12))
for sed, col, multi in zip(seddict, sedcol, multiplier):
axs.plot(zgrid, defprior20[:,seddict[sed]]*multi, color=col, lw=2,ls='--', label=f"hdfn prior {sed}")
axs.plot(zgrid, newprior20[:,seddict[sed]]*multi, color=col, ls='-', label=f"new prior {sed}")
axs.set_title("priors for mag=20.0")
axs2.plot(zgrid, defprior23[:,seddict[sed]]*multi, color=col, lw=2,ls='--', label=f"hdfn prior {sed}")
axs2.plot(zgrid, newprior23[:,seddict[sed]]*multi, color=col, ls='-', label=f"new prior {sed}")
axs2.set_title("priors for mag=23.0")
axs3.plot(zgrid, defprior25[:,seddict[sed]]*multi, color=col, lw=2,ls='--', label=f"hdfn prior {sed}")
axs3.plot(zgrid, newprior25[:,seddict[sed]]*multi, color=col, ls='-', label=f"new prior {sed}")
axs3.set_xlabel("redshift")
axs3.set_title("priors for mag=25.0")
axs3.set_ylabel("prior_probability")
axs.set_ylabel("prior probability")
axs.legend(loc="upper right", fontsize=10)
<matplotlib.legend.Legend at 0x7f8dc85df5b0>
We see slightly more dramatic differences than we had with the same “CWWSB” templates used in the main demo notebook, which is to be expected, given the different SED shapes and numbers of SEDs of each type: we’re defining a fairly different mapping into three “broad” types, and so a direct comparison is hard to do.
Now, let’s re-run BPZliteEstimator using this new prior and see if our results are any different:
custom_dict = dict(hdf5_groupname="photometry",
spectra_file="baddc2templates.list",
output="bpz_results_customprior.hdf5",
prior_band='mag_i_lsst',
data_path=custom_data_path,
no_prior=False)
custom_run = BPZliteEstimator.make_stage(name="rerun_bpz", **custom_dict,
model=run_bpz_train.get_handle('model'))
Let’s compute the estimate, and note that if this is the first time that you’ve run BPZ, you will see a bunch of lines print out as the code creates “AB” files (the model flux files used by BPZ and stored for later use) for the first time.
%%time
custom_run.estimate(test_data)
Inserting handle into data store. input: None, rerun_bpz
Inserting handle into data store. model_bpz_custom_sed_prior: <class 'rail.core.data.ModelHandle'> test_9816_customsed_demo_prior.pkl, (wd), rerun_bpz
Generating new AB file DC2_DONOTUSE_El1.DC2LSST_u.AB....
DC2_DONOTUSE_El1 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El1.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_El1.DC2LSST_g.AB....
DC2_DONOTUSE_El1 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El1.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_El1.DC2LSST_r.AB....
DC2_DONOTUSE_El1 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El1.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_El1.DC2LSST_i.AB....
DC2_DONOTUSE_El1 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El1.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_El1.DC2LSST_z.AB....
DC2_DONOTUSE_El1 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El1.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_El1.DC2LSST_y.AB....
DC2_DONOTUSE_El1 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El1.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_El2.DC2LSST_u.AB....
DC2_DONOTUSE_El2 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El2.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_El2.DC2LSST_g.AB....
DC2_DONOTUSE_El2 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El2.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_El2.DC2LSST_r.AB....
DC2_DONOTUSE_El2 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El2.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_El2.DC2LSST_i.AB....
DC2_DONOTUSE_El2 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El2.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_El2.DC2LSST_z.AB....
DC2_DONOTUSE_El2 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El2.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_El2.DC2LSST_y.AB....
DC2_DONOTUSE_El2 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_El2.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_Sp1.DC2LSST_u.AB....
DC2_DONOTUSE_Sp1 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp1.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_Sp1.DC2LSST_g.AB....
DC2_DONOTUSE_Sp1 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp1.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_Sp1.DC2LSST_r.AB....
DC2_DONOTUSE_Sp1 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp1.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_Sp1.DC2LSST_i.AB....
DC2_DONOTUSE_Sp1 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp1.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_Sp1.DC2LSST_z.AB....
DC2_DONOTUSE_Sp1 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp1.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_Sp1.DC2LSST_y.AB....
DC2_DONOTUSE_Sp1 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp1.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_Sp2.DC2LSST_u.AB....
DC2_DONOTUSE_Sp2 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp2.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_Sp2.DC2LSST_g.AB....
DC2_DONOTUSE_Sp2 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp2.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_Sp2.DC2LSST_r.AB....
DC2_DONOTUSE_Sp2 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp2.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_Sp2.DC2LSST_i.AB....
DC2_DONOTUSE_Sp2 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp2.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_Sp2.DC2LSST_z.AB....
DC2_DONOTUSE_Sp2 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp2.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_Sp2.DC2LSST_y.AB....
DC2_DONOTUSE_Sp2 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp2.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_Sp3.DC2LSST_u.AB....
DC2_DONOTUSE_Sp3 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp3.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_Sp3.DC2LSST_g.AB....
DC2_DONOTUSE_Sp3 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp3.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_Sp3.DC2LSST_r.AB....
DC2_DONOTUSE_Sp3 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp3.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_Sp3.DC2LSST_i.AB....
DC2_DONOTUSE_Sp3 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp3.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_Sp3.DC2LSST_z.AB....
DC2_DONOTUSE_Sp3 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp3.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_Sp3.DC2LSST_y.AB....
DC2_DONOTUSE_Sp3 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Sp3.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_Im1.DC2LSST_u.AB....
DC2_DONOTUSE_Im1 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im1.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_Im1.DC2LSST_g.AB....
DC2_DONOTUSE_Im1 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im1.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_Im1.DC2LSST_r.AB....
DC2_DONOTUSE_Im1 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im1.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_Im1.DC2LSST_i.AB....
DC2_DONOTUSE_Im1 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im1.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_Im1.DC2LSST_z.AB....
DC2_DONOTUSE_Im1 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im1.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_Im1.DC2LSST_y.AB....
DC2_DONOTUSE_Im1 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im1.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_Im2.DC2LSST_u.AB....
DC2_DONOTUSE_Im2 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im2.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_Im2.DC2LSST_g.AB....
DC2_DONOTUSE_Im2 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im2.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_Im2.DC2LSST_r.AB....
DC2_DONOTUSE_Im2 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im2.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_Im2.DC2LSST_i.AB....
DC2_DONOTUSE_Im2 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im2.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_Im2.DC2LSST_z.AB....
DC2_DONOTUSE_Im2 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im2.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_Im2.DC2LSST_y.AB....
DC2_DONOTUSE_Im2 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im2.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_Im3.DC2LSST_u.AB....
DC2_DONOTUSE_Im3 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im3.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_Im3.DC2LSST_g.AB....
DC2_DONOTUSE_Im3 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im3.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_Im3.DC2LSST_r.AB....
DC2_DONOTUSE_Im3 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im3.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_Im3.DC2LSST_i.AB....
DC2_DONOTUSE_Im3 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im3.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_Im3.DC2LSST_z.AB....
DC2_DONOTUSE_Im3 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im3.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_Im3.DC2LSST_y.AB....
DC2_DONOTUSE_Im3 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im3.DC2LSST_y.AB
Generating new AB file DC2_DONOTUSE_Im4.DC2LSST_u.AB....
DC2_DONOTUSE_Im4 DC2LSST_u
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im4.DC2LSST_u.AB
Generating new AB file DC2_DONOTUSE_Im4.DC2LSST_g.AB....
DC2_DONOTUSE_Im4 DC2LSST_g
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im4.DC2LSST_g.AB
Generating new AB file DC2_DONOTUSE_Im4.DC2LSST_r.AB....
DC2_DONOTUSE_Im4 DC2LSST_r
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im4.DC2LSST_r.AB
Generating new AB file DC2_DONOTUSE_Im4.DC2LSST_i.AB....
DC2_DONOTUSE_Im4 DC2LSST_i
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im4.DC2LSST_i.AB
Generating new AB file DC2_DONOTUSE_Im4.DC2LSST_z.AB....
DC2_DONOTUSE_Im4 DC2LSST_z
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im4.DC2LSST_z.AB
Generating new AB file DC2_DONOTUSE_Im4.DC2LSST_y.AB....
DC2_DONOTUSE_Im4 DC2LSST_y
x_res[0] 3000.0
x_res[-1] 11500.0
Writing AB file /opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/estimation_data/data/AB/DC2_DONOTUSE_Im4.DC2LSST_y.AB
Process 0 running estimator on chunk 0 - 20,449
/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/estimation/algos/bpz_lite.py:568: RuntimeWarning: overflow encountered in cast
flux_err[unobserved] = 1e108
Inserting handle into data store. output_rerun_bpz: inprogress_bpz_results_customprior.hdf5, rerun_bpz
CPU times: user 25.7 s, sys: 131 ms, total: 25.8 s
Wall time: 25.8 s
<rail.core.data.QPHandle at 0x7f8dc8127fa0>
custom_res = qp.read("bpz_results_customprior.hdf5")
sz = test_data['photometry']['redshift']

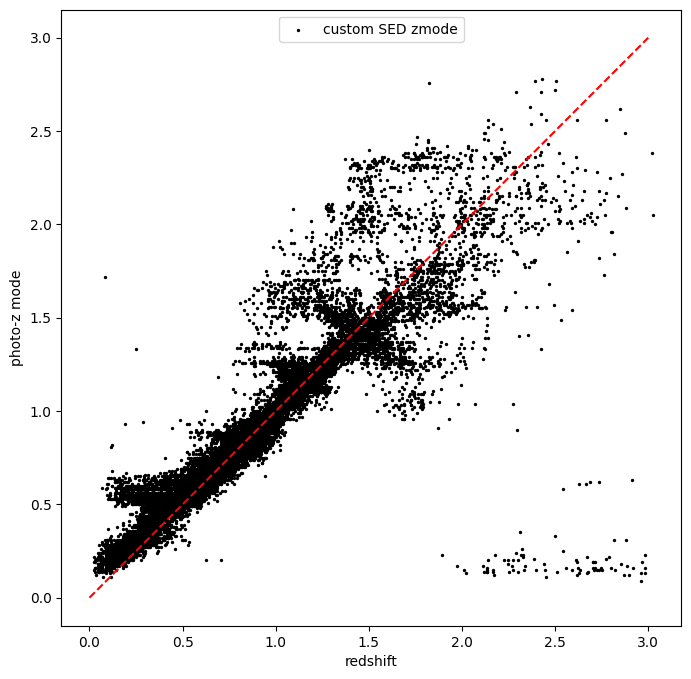

And let’s plot the modes fore this new run as well as our run with the default prior:
plt.figure(figsize=(8,8))
plt.scatter(sz, custom_res.ancil['zmode'].flatten(), s=2, c='k', label='custom SED zmode')
plt.plot([0,3], [0,3], 'r--')
plt.xlabel("redshift")
plt.ylabel("photo-z mode")
plt.legend(loc='upper center', fontsize=10)
<matplotlib.legend.Legend at 0x7f8dc80615a0>
Things look pretty dramatically different than they did with our CWW/SB templates, we see reduced scatter, less bias overall, and very different outlier population, with almost no galaxies now residing in the upper-left of the plot, fewer in the lower-right, but a new population just above the zmode=zspec line at higher redshifts.
As mentioned above, there are some quirks to the SEDs that make up the cosmoDC2 simulation that are slightly different from the galaxies in the local Universe, which are a better match to the CWW/SB templates (which themselves are mostly derived from empirical local galaxy SEDs). As our new “custom” SEDs better reflect the galaxies of cosmoDC2, it’s not surprising that we see improved photo-z performance. Let’s compute a few point-estimate metrics to compare to those calculated in the main demo notebook with the CWW/SB templates.
Point estimate metrics
Let’s see if our point estimate metrics have improved at all given the tuned prior. These metrics take in arrays of the point estimates (we’ll use the mode) and the true redshifts.
from rail.evaluation.metrics.pointestimates import PointSigmaIQR, PointBias, PointOutlierRate, PointSigmaMAD
custom_sigma_eval = PointSigmaIQR(custom_res.ancil['zmode'].flatten(), sz)
custom_sigma = custom_sigma_eval.evaluate()
print("custom SED sigma: %.4f" % (custom_sigma))
custom SED sigma: 0.0490
custom_bias_eval = PointBias(custom_res.ancil['zmode'].flatten(), sz)
custom_bias = custom_bias_eval.evaluate()
print("custom SED bias: %.4f" % (custom_bias))
custom SED bias: 0.0068
Indeed, we see an improvement in the sigma from 0.057-0.059 with the CWW/SB templates to 0.0438 with our new templates and custom prior, and a much smaller bias of 0.0082 compared to -0.026 in the CWW/SB case (run the other notebook to see these numbers)!
custom_outlier_eval = PointOutlierRate(custom_res.ancil['zmode'].flatten(), sz)
custom_outlier = custom_outlier_eval.evaluate()
print("custom SED outlier rate: %.4f" % (custom_outlier))
custom SED outlier rate: 0.0915
We see a higher outlier rate here; however, our ourlier rate is defined in terms of those galaxies outside of three sigma, as defined by PointSigmaIQR, and with a smaller sigma the number of outliers is not really as easy to directly compare. As in the main demo notebook, let’s compute the fraction of galaxies with (zmode - specz) / (1 + specz) > 0.15:
from rail.evaluation.metrics.pointestimates import PointStatsEz
custom_ez_eval = PointStatsEz(custom_res.ancil['zmode'].flatten(), sz)
custom_ez = custom_ez_eval.evaluate()
custom_outlier_frac = (np.sum((np.abs(custom_ez) > 0.15))) / len(sz)
print("fraction of catastrophic outliers: %.4f" % custom_outlier_frac)
fraction of catastrophic outliers: 0.0894
So, our catastrophic outlier fraction remains similar but slightly higher than in the CWW/SB template case, even if the distribution and character of those outliers is now dramatically different.

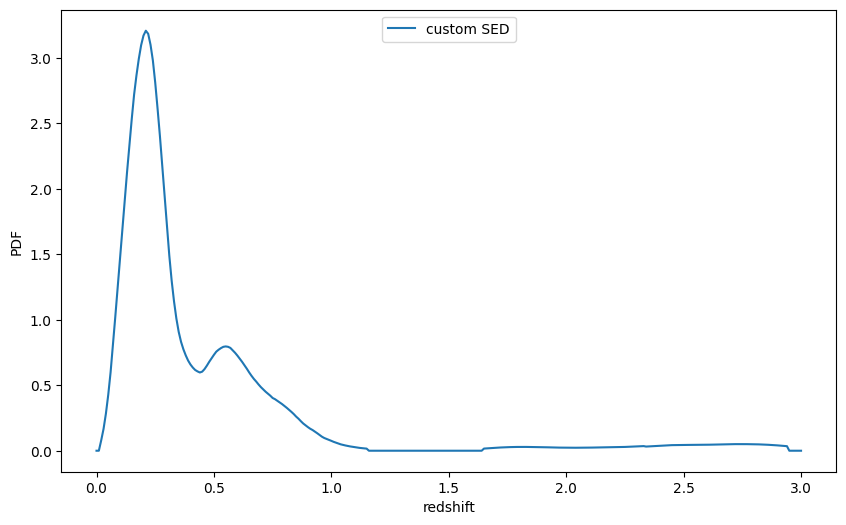

Finally, we’ll plot an example PDF. Given that we are now comparing to a completely different set of SEDs with different predicted fluxes, we can expect different chi^2 values, and thus a complately different likelihood or posterior shape:
whichone = 109
fig, axs = plt.subplots(1,1, figsize=(10,6))
custom_res.plot_native(key=whichone, axes=axs, label="custom SED")
axs.set_xlabel("redshift")
axs.set_ylabel("PDF")
axs.legend(loc="upper center", fontsize=10)
<matplotlib.legend.Legend at 0x7f8dc84e80d0>
Yes, in our one example PDF, number 109, we see almost no peak at high redshift, but rather a new peak at z~0.6, again demonstrating just how large of an impact the SED template set used has on photo-z results.
