GPz Estimation Example
Author: Sam Schmidt
Last Run Successfully: September 26, 2023
Note: If you’re planning to run this in a notebook, you may want to
use interactive mode instead. See
GPz.ipynb
in the interactive_examples/estimation_examples/ folder for a
version of this notebook in interactive mode.
A quick demo of running GPz on the typical test data. You should have installed rail_gpz_v1 (we highly recommend that you do this from within a custom conda environment so that all dependencies for package versions are met), either by cloning and installing from github, or with:
pip install pz-rail-gpz-v1
As RAIL is a namespace package, installing rail_gpz_v1 will make
GPzInformer and GPzEstimator available, and they can be imported
via:
from rail.estimation.algos.gpz import GPzInformer, GPzEstimator
Let’s start with all of our necessary imports:
import os
import matplotlib.pyplot as plt
import numpy as np
import rail
import tables_io
import qp
from rail.core.data import TableHandle
from rail.core.stage import RailStage
from rail.estimation.algos.gpz import GPzInformer, GPzEstimator
# find_rail_file is a convenience function that finds a file in the RAIL ecosystem We have several example data files that are copied with RAIL that we can use for our example run, let's grab those files, one for training/validation, and the other for testing:
from rail.utils.path_utils import find_rail_file
trainFile = find_rail_file('examples_data/testdata/test_dc2_training_9816.hdf5')
testFile = find_rail_file('examples_data/testdata/test_dc2_validation_9816.hdf5')
training_data = tables_io.read(trainFile)
test_data = tables_io.read(testFile)
Now, we need to set up the stage that will run GPz. We begin by defining a dictionary with the config options for the algorithm. There are sensible defaults set, we will override several of these as an example of how to do this. Config parameters not set in the dictionary will automatically be set to their default values.
gpz_train_dict = dict(n_basis=60, trainfrac=0.8, csl_method="normal", max_iter=150, hdf5_groupname="photometry")
Let’s set up the training stage. We need to provide a name for the stage for ceci, as well as a name for the model file that will be written by the stage. We also include the arguments in the dictionary we wrote above as additional arguments:
# set up the stage to run our GPZ_training
pz_train = GPzInformer.make_stage(name="GPz_Train", model="GPz_model.pkl", **gpz_train_dict)
We are now ready to run the stage to create the model. We will use the
training data from test_dc2_training_9816.hdf5, which contains
10,225 galaxies drawn from healpix 9816 from the cosmoDC2_v1.1.4
dataset, to train the model. Note that we read this data in called
train_data in the DataStore. Note that we set trainfrac to 0.8,
so 80% of the data will be used in the “main” training, but 20% will be
reserved by GPzInformer to determine a SIGMA parameter. We set
max_iter to 150, so we will see 150 steps where the stage tries to
maximize the likelihood. We run the stage as follows:
%%time
pz_train.inform(training_data)
Inserting handle into data store. input: None, GPz_Train
ngal: 10225
training model...
Iter logML/n Train RMSE Train RMSE/n Valid RMSE Valid MLL Time
1 -3.4256259e-01 3.2024033e-01 -3.3226429e-01 3.2224079e-01 [-3.3551109e-01] 4.5894194e-01
2 -2.7501828e-01 3.1098707e-01 -2.5211161e-01 3.1332679e-01 [-2.5881484e-01] 2.2753167e-01
3 -2.3325802e-01 2.9149596e-01 -1.9338456e-01 2.9297744e-01 [-2.0129497e-01] 2.7407479e-01
4 -1.8568702e-01 2.6759451e-01 -1.4137947e-01 2.6655482e-01 [-1.3730286e-01] 1.9289112e-01
5 -1.1155976e-01 2.5735376e-01 -8.1663871e-02 2.5794173e-01 [-8.5734487e-02] 2.0452476e-01
6 -7.1982629e-02 2.5200325e-01 -4.3624966e-02 2.5214102e-01 [-4.4699642e-02] 2.0529437e-01
7 -5.2536041e-02 2.4882620e-01 -2.8180741e-02 2.4921600e-01 [-3.0345852e-02] 2.0948195e-01
8 -3.3490681e-02 2.4521469e-01 -1.3120370e-02 2.4715955e-01 [-2.1926285e-02] 2.0939445e-01
9 -2.2518459e-02 2.4302066e-01 -4.0416039e-03 2.4573302e-01 [-1.5745622e-02] 2.0444298e-01
10 -1.3827341e-02 2.4155709e-01 2.5821770e-03 2.4399098e-01 [-7.3020758e-03] 1.9502711e-01
11 -7.1526247e-03 2.4043474e-01 8.1610371e-03 2.4364351e-01 [-5.0101633e-03] 2.0205951e-01
12 -4.7297107e-03 2.4001459e-01 1.0304042e-02 2.4379632e-01 [-4.4583067e-03] 2.0056629e-01
13 -8.5253150e-04 2.3934887e-01 1.3826856e-02 2.4295327e-01 [-9.6960236e-04] 2.1182108e-01
14 5.7526359e-03 2.3799544e-01 2.1220508e-02 2.4239065e-01 [ 4.4389898e-03] 1.8390560e-01
15 8.1929266e-02 2.2719334e-01 1.0090034e-01 2.2813045e-01 [ 9.3862841e-02] 4.3854165e-01
16 1.2858116e-01 2.2419590e-01 1.5062026e-01 2.2718208e-01 [ 1.3808658e-01] 2.0877600e-01
17 2.5022892e-01 2.2432918e-01 2.7917088e-01 2.2601804e-01 [ 2.6490198e-01] 2.0438480e-01
18 3.2655170e-01 2.1985878e-01 3.6003067e-01 2.2613596e-01 [ 3.2368323e-01] 2.0511794e-01
19 3.6980251e-01 2.1897647e-01 4.0299202e-01 2.2405004e-01 [ 3.7835595e-01] 2.0316601e-01
20 4.1289119e-01 2.1550190e-01 4.4664203e-01 2.1993483e-01 [ 4.1935835e-01] 2.1254563e-01
21 4.6358918e-01 2.1367463e-01 4.9890648e-01 2.1875826e-01 [ 4.7277439e-01] 2.0705819e-01
22 5.3068732e-01 2.1226158e-01 5.7063246e-01 2.1859489e-01 [ 5.5245091e-01] 2.0437670e-01
23 5.6159576e-01 2.1265779e-01 6.0311319e-01 2.1820880e-01 [ 5.9726273e-01] 1.9147587e-01
24 5.9189688e-01 2.0901338e-01 6.3174805e-01 2.1537450e-01 [ 6.2036550e-01] 2.1264887e-01
25 6.2811128e-01 2.1128078e-01 6.6751204e-01 2.1846756e-01 [ 6.6082948e-01] 2.1012759e-01
26 6.5929269e-01 2.1145999e-01 6.9680159e-01 2.1666870e-01 [ 6.8863454e-01] 2.1812201e-01
27 6.9652542e-01 2.1031095e-01 7.3603438e-01 2.1564936e-01 [ 7.3411399e-01] 2.0978808e-01
28 7.3015640e-01 2.1151440e-01 7.7078942e-01 2.1741075e-01 [ 7.7775171e-01] 2.0210028e-01
29 7.5576717e-01 2.1351646e-01 7.9605314e-01 2.1996490e-01 [ 8.0156104e-01] 1.8313527e-01
30 7.8010426e-01 2.1434025e-01 8.2243948e-01 2.2009717e-01 [ 8.2621812e-01] 2.0644164e-01
31 8.0007858e-01 2.1570199e-01 8.4270190e-01 2.2183815e-01 [ 8.4835697e-01] 2.1355414e-01
32 8.1928980e-01 2.1671349e-01 8.6264009e-01 2.2321530e-01 [ 8.6685220e-01] 1.9955301e-01
33 8.5654811e-01 2.1920601e-01 9.0128637e-01 2.2622373e-01 [ 9.0159257e-01] 1.9934916e-01
34 8.8027414e-01 2.2289559e-01 9.2782467e-01 2.2960862e-01 [ 9.1255268e-01] 2.0987153e-01
35 9.0333721e-01 2.2080926e-01 9.4987789e-01 2.2669385e-01 [ 9.2902606e-01] 2.1078634e-01
36 9.1734577e-01 2.1576949e-01 9.6422712e-01 2.2146127e-01 [ 9.4826935e-01] 1.8551922e-01
37 9.2829498e-01 2.1438525e-01 9.7456036e-01 2.1975472e-01 [ 9.6085464e-01] 1.8191886e-01
38 9.3875506e-01 2.1348124e-01 9.8546214e-01 2.1873291e-01 [ 9.6885610e-01] 2.0805550e-01
39 9.5299870e-01 2.1156963e-01 1.0011891e+00 2.1632717e-01 [ 9.7627072e-01] 2.1516085e-01
40 9.6519116e-01 2.0929590e-01 1.0142068e+00 2.1423366e-01 [ 9.8771609e-01] 1.8424749e-01
41 9.7723960e-01 2.0559948e-01 1.0265185e+00 2.1055665e-01 [ 9.9839170e-01] 2.0850492e-01
42 9.8657010e-01 2.0411385e-01 1.0357031e+00 2.0912044e-01 [ 1.0095496e+00] 2.1029830e-01
43 1.0004658e+00 2.0210750e-01 1.0503858e+00 2.0739664e-01 [ 1.0280596e+00] 2.0889115e-01
44 1.0078335e+00 2.0271082e-01 1.0575992e+00 2.0738803e-01 [ 1.0359088e+00] 2.0320439e-01
45 1.0164039e+00 2.0183431e-01 1.0663499e+00 2.0662811e-01 [ 1.0431946e+00] 2.0282626e-01
46 1.0281633e+00 2.0088598e-01 1.0785919e+00 2.0584261e-01 [ 1.0518817e+00] 2.0435476e-01
47 1.0405928e+00 2.0048935e-01 1.0913827e+00 2.0632490e-01 [ 1.0598080e+00] 2.0219636e-01
48 1.0482492e+00 1.9977657e-01 1.0999801e+00 2.0529292e-01 [ 1.0664845e+00] 2.0488167e-01
49 1.0570803e+00 2.0006062e-01 1.1084465e+00 2.0618914e-01 [ 1.0738599e+00] 2.0748425e-01
50 1.0619485e+00 1.9963778e-01 1.1133100e+00 2.0592476e-01 [ 1.0782313e+00] 2.1045423e-01
51 1.0735283e+00 1.9867430e-01 1.1252046e+00 2.0504382e-01 [ 1.0889503e+00] 2.0576143e-01
52 1.0865274e+00 1.9697550e-01 1.1378750e+00 2.0322313e-01 [ 1.1005193e+00] 2.1118689e-01
53 1.0983739e+00 1.9484752e-01 1.1504458e+00 2.0073340e-01 [ 1.1118778e+00] 2.1051693e-01
54 1.1083239e+00 1.9346908e-01 1.1604998e+00 1.9963248e-01 [ 1.1199955e+00] 2.0664716e-01
55 1.1224385e+00 1.9069482e-01 1.1749452e+00 1.9720627e-01 [ 1.1286412e+00] 2.0675826e-01
56 1.1327167e+00 1.8955338e-01 1.1861588e+00 1.9614158e-01 [ 1.1296563e+00] 2.0487547e-01
57 1.1431757e+00 1.8703231e-01 1.1963809e+00 1.9365771e-01 [ 1.1370984e+00] 2.0233011e-01
58 1.1523884e+00 1.8734478e-01 1.2058504e+00 1.9379960e-01 [ 1.1426546e+00] 2.5633407e-01
59 1.1638737e+00 1.8439204e-01 1.2176672e+00 1.9060072e-01 [ 1.1520820e+00] 2.0893288e-01
60 1.1789202e+00 1.8048086e-01 1.2327927e+00 1.8627603e-01 [ 1.1620812e+00] 1.9405508e-01
61 1.1918106e+00 1.7754595e-01 1.2463080e+00 1.8294364e-01 [ 1.1687155e+00] 1.8428016e-01
62 1.2019675e+00 1.7643226e-01 1.2563586e+00 1.8181588e-01 [ 1.1756316e+00] 2.0014453e-01
63 1.2141028e+00 1.7315063e-01 1.2686885e+00 1.7831557e-01 [ 1.1801437e+00] 1.8929839e-01
64 1.2242058e+00 1.6944909e-01 1.2788572e+00 1.7404432e-01 [ 1.1930561e+00] 1.8194389e-01
65 1.2345258e+00 1.6743769e-01 1.2891524e+00 1.7178077e-01 [ 1.2059624e+00] 2.1395850e-01
66 1.2485592e+00 1.6357868e-01 1.3040746e+00 1.6629180e-01 [ 1.2209857e+00] 2.1262765e-01
67 1.2570861e+00 1.6261571e-01 1.3124876e+00 1.6535545e-01 [ 1.2316547e+00] 1.8670511e-01
68 1.2645805e+00 1.6284144e-01 1.3195641e+00 1.6553932e-01 [ 1.2393480e+00] 1.9581485e-01
69 1.2715278e+00 1.6184496e-01 1.3266557e+00 1.6392783e-01 [ 1.2439804e+00] 2.0424414e-01
70 1.2791917e+00 1.6125357e-01 1.3346353e+00 1.6323911e-01 [ 1.2451501e+00] 2.0747900e-01
71 1.2901818e+00 1.5871579e-01 1.3456814e+00 1.6038712e-01 [ 1.2514862e+00] 2.0306945e-01
72 1.2997242e+00 1.5582974e-01 1.3556814e+00 1.5757351e-01 [ 1.2534647e+00] 2.0443225e-01
73 1.3083731e+00 1.5484013e-01 1.3641971e+00 1.5683704e-01 [ 1.2605803e+00] 1.9978857e-01
74 1.3157494e+00 1.5386279e-01 1.3714215e+00 1.5593941e-01 [ 1.2707711e+00] 2.0666933e-01
75 1.3218822e+00 1.5282648e-01 1.3778050e+00 1.5427557e-01 [ 1.2750304e+00] 2.0455480e-01
76 1.3289868e+00 1.5178599e-01 1.3849566e+00 1.5284649e-01 [ 1.2833522e+00] 2.1052432e-01
77 1.3354040e+00 1.5065862e-01 1.3914892e+00 1.5122112e-01 [ 1.2893866e+00] 2.1194935e-01
78 1.3416241e+00 1.4905593e-01 1.3978577e+00 1.4935009e-01 [ 1.2937911e+00] 2.0835233e-01
79 1.3500474e+00 1.4653463e-01 1.4065496e+00 1.4691810e-01 [ 1.2967448e+00] 2.0482492e-01
80 1.3561404e+00 1.4526513e-01 1.4127554e+00 1.4576057e-01 [ 1.2986197e+00] 2.0664382e-01
81 1.3634008e+00 1.4376833e-01 1.4202565e+00 1.4450579e-01 1.2975711e+00 2.0235968e-01
82 1.3704564e+00 1.4274631e-01 1.4274298e+00 1.4341100e-01 1.2949527e+00 2.0558047e-01
83 1.3763547e+00 1.4163777e-01 1.4332938e+00 1.4182088e-01 [ 1.2987368e+00] 2.0469952e-01
84 1.3809515e+00 1.4078292e-01 1.4379539e+00 1.4095174e-01 [ 1.2997315e+00] 2.4552727e-01
85 1.3866538e+00 1.3949302e-01 1.4437253e+00 1.3947121e-01 [ 1.3050581e+00] 2.0749712e-01
86 1.3926724e+00 1.3797060e-01 1.4498517e+00 1.3765469e-01 [ 1.3108667e+00] 2.2504020e-01
87 1.3986507e+00 1.3711892e-01 1.4557821e+00 1.3684837e-01 [ 1.3157685e+00] 2.2398663e-01
88 1.4034235e+00 1.3681317e-01 1.4606241e+00 1.3654503e-01 [ 1.3196553e+00] 2.0230365e-01
89 1.4084716e+00 1.3604155e-01 1.4660321e+00 1.3580919e-01 1.3156514e+00 1.8891478e-01
90 1.4135127e+00 1.3542863e-01 1.4712772e+00 1.3563858e-01 1.3128542e+00 2.1164536e-01
91 1.4179554e+00 1.3496025e-01 1.4756307e+00 1.3507336e-01 1.3158246e+00 2.1192861e-01
92 1.4219842e+00 1.3429844e-01 1.4797160e+00 1.3449872e-01 1.3129686e+00 1.9579458e-01
93 1.4269294e+00 1.3344413e-01 1.4847343e+00 1.3384701e-01 1.3141939e+00 1.8347621e-01
94 1.4312551e+00 1.3290877e-01 1.4890654e+00 1.3372499e-01 1.3061993e+00 2.0570183e-01
95 1.4348138e+00 1.3231936e-01 1.4926384e+00 1.3342205e-01 1.3060392e+00 2.0054650e-01
96 1.4376271e+00 1.3202035e-01 1.4954211e+00 1.3335711e-01 1.3057492e+00 2.0572710e-01
97 1.4415290e+00 1.3154769e-01 1.4994685e+00 1.3338487e-01 1.3011306e+00 2.0692992e-01
98 1.4449354e+00 1.3075328e-01 1.5032011e+00 1.3338562e-01 1.2908273e+00 2.0195436e-01
99 1.4490928e+00 1.3063308e-01 1.5071918e+00 1.3327304e-01 1.2977383e+00 2.0530295e-01
100 1.4525382e+00 1.3039423e-01 1.5106153e+00 1.3309472e-01 1.3010220e+00 2.0237637e-01
101 1.4566729e+00 1.2995222e-01 1.5148355e+00 1.3278485e-01 1.3002370e+00 1.8394232e-01
102 1.4605890e+00 1.2926814e-01 1.5191586e+00 1.3309271e-01 1.2862366e+00 2.0828319e-01
103 1.4658218e+00 1.2869147e-01 1.5243197e+00 1.3252525e-01 1.2842079e+00 1.9994164e-01
104 1.4687282e+00 1.2830613e-01 1.5272231e+00 1.3230565e-01 1.2826933e+00 2.0843029e-01
105 1.4719094e+00 1.2774863e-01 1.5305755e+00 1.3222168e-01 1.2775768e+00 2.0889449e-01
106 1.4745512e+00 1.2714640e-01 1.5334193e+00 1.3190780e-01 1.2749577e+00 2.0959592e-01
107 1.4772817e+00 1.2702419e-01 1.5360515e+00 1.3177959e-01 1.2834631e+00 2.0868659e-01
108 1.4803225e+00 1.2676563e-01 1.5391085e+00 1.3155505e-01 1.2900383e+00 2.0627308e-01
109 1.4827533e+00 1.2646108e-01 1.5415261e+00 1.3131018e-01 1.2956294e+00 2.0794916e-01
110 1.4865640e+00 1.2594316e-01 1.5453247e+00 1.3093864e-01 1.2951004e+00 2.0570040e-01
111 1.4893196e+00 1.2561747e-01 1.5481835e+00 1.3090156e-01 1.2955962e+00 2.0949006e-01
112 1.4921108e+00 1.2545929e-01 1.5509501e+00 1.3090433e-01 1.2947388e+00 1.9944382e-01
113 1.4951099e+00 1.2529969e-01 1.5540003e+00 1.3092111e-01 1.2883090e+00 2.0295453e-01
114 1.4977080e+00 1.2511650e-01 1.5566815e+00 1.3099166e-01 1.2821623e+00 1.9951415e-01
115 1.5006543e+00 1.2495345e-01 1.5596112e+00 1.3085582e-01 1.2827926e+00 2.0889115e-01
116 1.5039984e+00 1.2477342e-01 1.5629169e+00 1.3085940e-01 1.2714544e+00 2.1005106e-01
117 1.5063097e+00 1.2480064e-01 1.5651765e+00 1.3067864e-01 1.2792949e+00 2.1603227e-01
118 1.5078571e+00 1.2477755e-01 1.5666457e+00 1.3056829e-01 1.2800155e+00 1.9473696e-01
119 1.5099844e+00 1.2468909e-01 1.5688236e+00 1.3037401e-01 1.2707349e+00 2.1674204e-01
120 1.5116955e+00 1.2480210e-01 1.5706184e+00 1.3036480e-01 1.2694400e+00 2.0355201e-01
121 1.5131726e+00 1.2483300e-01 1.5721276e+00 1.3027335e-01 1.2684627e+00 1.8577075e-01
122 1.5159824e+00 1.2484890e-01 1.5750863e+00 1.3003303e-01 1.2677949e+00 2.1386814e-01
123 1.5175432e+00 1.2494339e-01 1.5767632e+00 1.2998206e-01 1.2589633e+00 2.0303893e-01
124 1.5195656e+00 1.2481313e-01 1.5787259e+00 1.2990884e-01 1.2615981e+00 2.0454741e-01
125 1.5215244e+00 1.2465569e-01 1.5807028e+00 1.2985459e-01 1.2602188e+00 2.1741867e-01
126 1.5228169e+00 1.2456125e-01 1.5820258e+00 1.2985046e-01 1.2577567e+00 2.0468903e-01
127 1.5251965e+00 1.2442480e-01 1.5845415e+00 1.2980309e-01 1.2497460e+00 1.9881773e-01
128 1.5268907e+00 1.2427779e-01 1.5863813e+00 1.2972820e-01 1.2424638e+00 2.0798993e-01
129 1.5284282e+00 1.2421983e-01 1.5878971e+00 1.2962413e-01 1.2427423e+00 2.0032382e-01
130 1.5300742e+00 1.2412057e-01 1.5896434e+00 1.2939247e-01 1.2404016e+00 2.1514082e-01
131 1.5311820e+00 1.2406485e-01 1.5908194e+00 1.2928201e-01 1.2406856e+00 2.0940614e-01
132 1.5329800e+00 1.2387638e-01 1.5926870e+00 1.2901768e-01 1.2369220e+00 1.8197656e-01
133 1.5345039e+00 1.2369895e-01 1.5943072e+00 1.2855506e-01 1.2386976e+00 2.0239186e-01
134 1.5364770e+00 1.2362228e-01 1.5961306e+00 1.2851788e-01 1.2347465e+00 2.0082974e-01
135 1.5377301e+00 1.2356100e-01 1.5972753e+00 1.2842747e-01 1.2342385e+00 1.9641066e-01
136 1.5392420e+00 1.2345751e-01 1.5987487e+00 1.2825627e-01 1.2337678e+00 1.7141867e-01
137 1.5413590e+00 1.2331227e-01 1.6008926e+00 1.2805731e-01 1.2220938e+00 1.9912958e-01
138 1.5433898e+00 1.2316809e-01 1.6030072e+00 1.2790742e-01 1.2228743e+00 2.0751834e-01
139 1.5449093e+00 1.2315290e-01 1.6045517e+00 1.2788956e-01 1.2242483e+00 1.9848228e-01
140 1.5467338e+00 1.2313509e-01 1.6065046e+00 1.2797240e-01 1.2185407e+00 2.3132300e-01
141 1.5479365e+00 1.2307316e-01 1.6078211e+00 1.2790797e-01 1.2144337e+00 1.9159412e-01
142 1.5493767e+00 1.2301346e-01 1.6091817e+00 1.2788766e-01 1.2119816e+00 2.0098138e-01
143 1.5508900e+00 1.2290320e-01 1.6106443e+00 1.2785821e-01 1.2059198e+00 2.0095897e-01
144 1.5517606e+00 1.2282260e-01 1.6115038e+00 1.2783407e-01 1.2033535e+00 2.0089626e-01
145 1.5522127e+00 1.2265085e-01 1.6122021e+00 1.2790150e-01 1.1970178e+00 2.0346475e-01
146 1.5544408e+00 1.2253566e-01 1.6143019e+00 1.2777377e-01 1.1913658e+00 1.9812083e-01
147 1.5548420e+00 1.2254801e-01 1.6147040e+00 1.2776616e-01 1.1925751e+00 2.3505116e-01
148 1.5564243e+00 1.2248582e-01 1.6164148e+00 1.2768702e-01 1.1870330e+00 1.9530630e-01
149 1.5582136e+00 1.2241988e-01 1.6184068e+00 1.2754677e-01 1.1743300e+00 1.9759870e-01
150 1.5600665e+00 1.2233288e-01 1.6203656e+00 1.2742176e-01 1.1664712e+00 2.1199632e-01
Inserting handle into data store. model_GPz_Train: inprogress_GPz_model.pkl, GPz_Train
CPU times: user 2min 4s, sys: 1.08 s, total: 2min 5s
Wall time: 31.5 s
<rail.core.data.ModelHandle at 0x7f95f8fe3cd0>
This should have taken about 30 seconds on a typical desktop computer,
and you should now see a file called GPz_model.pkl in the directory.
This model file is used by the GPzEstimator stage to determine our
redshift PDFs for the test set of galaxies. Let’s set up that stage,
again defining a dictionary of variables for the config params:
gpz_test_dict = dict(hdf5_groupname="photometry", model="GPz_model.pkl")
gpz_run = GPzEstimator.make_stage(name="gpz_run", **gpz_test_dict)
Let’s run the stage and compute photo-z’s for our test set:
%%time
results = gpz_run.estimate(test_data)
Inserting handle into data store. input: None, gpz_run
Inserting handle into data store. model: GPz_model.pkl, gpz_run
Process 0 running estimator on chunk 0 - 20,449
Process 0 estimating GPz PZ PDF for rows 0 - 20,449
Inserting handle into data store. output_gpz_run: inprogress_output_gpz_run.hdf5, gpz_run
CPU times: user 982 ms, sys: 41.9 ms, total: 1.02 s
Wall time: 380 ms

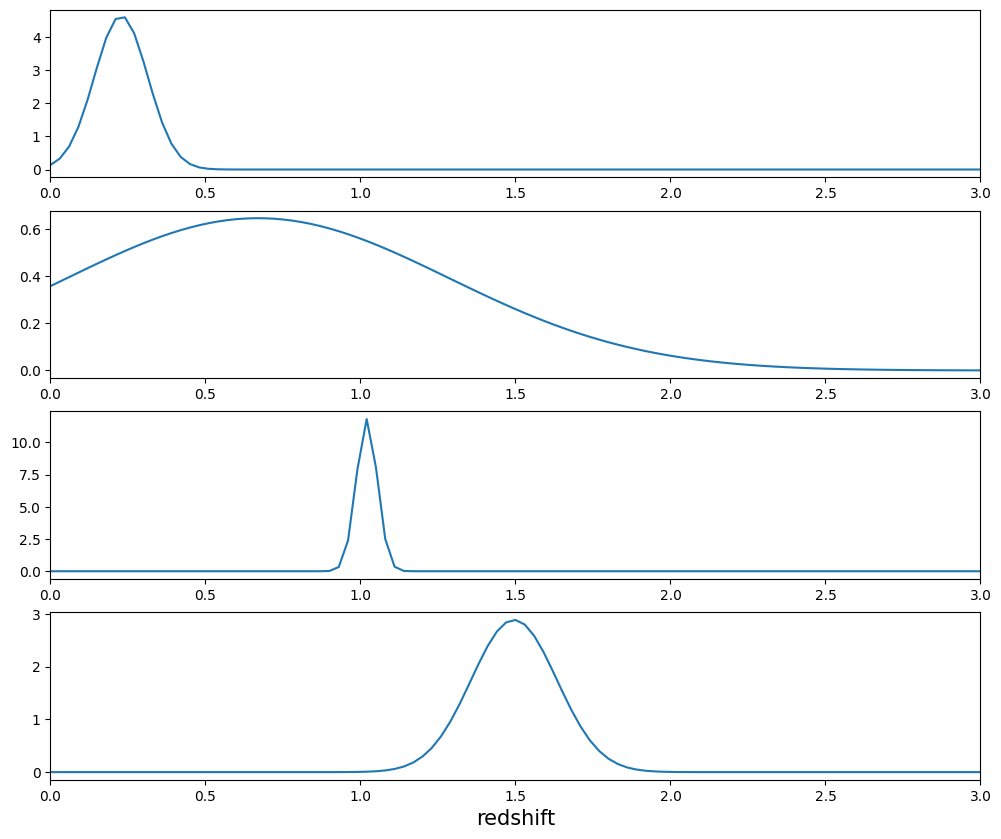

This should be very fast, under a second for our 20,449 galaxies in the
test set. Now, let’s plot a scatter plot of the point estimates, as well
as a few example PDFs. We can get access to the qp ensemble that was
written via the DataStore via results()
ens = results()
expdfids = [2, 180, 13517, 18032]
fig, axs = plt.subplots(4, 1, figsize=(12,10))
for i, xx in enumerate(expdfids):
axs[i].set_xlim(0,3)
ens[xx].plot_native(axes=axs[i])
axs[3].set_xlabel("redshift", fontsize=15)
Text(0.5, 0, 'redshift')

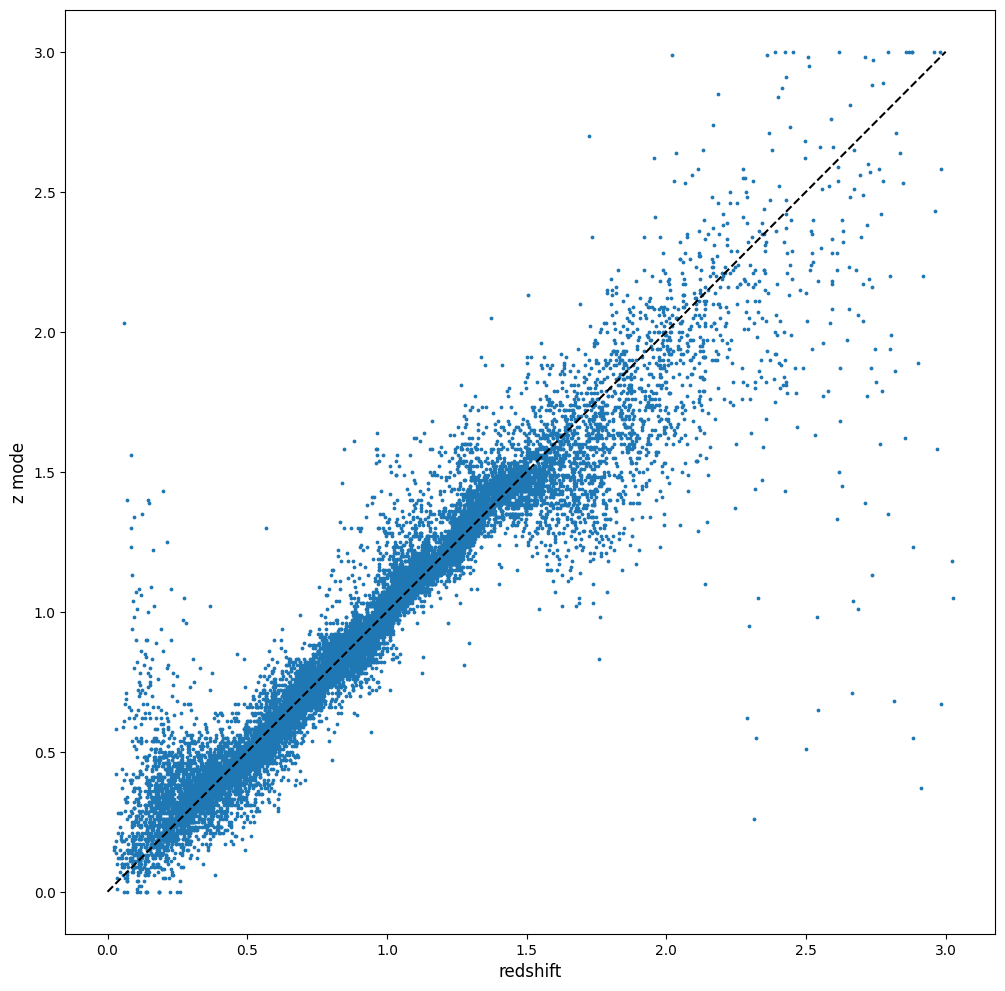

GPzEstimator parameterizes each PDF as a single Gaussian, here we see a few examples of Gaussians of different widths. Now let’s grab the mode of each PDF (stored as ancil data in the ensemble) and compare to the true redshifts from the test_data file:
truez = test_data['photometry']['redshift']
zmode = ens.ancil['zmode'].flatten()
plt.figure(figsize=(12,12))
plt.scatter(truez, zmode, s=3)
plt.plot([0,3],[0,3], 'k--')
plt.xlabel("redshift", fontsize=12)
plt.ylabel("z mode", fontsize=12)
Text(0, 0.5, 'z mode')
