NZDir as a Pipeline

Author: Sam Schmidt

Last successfully run: April 26, 2023

import os
import rail
import qp
import tables_io
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
%matplotlib inline
from rail.estimation.algos.nz_dir import NZDirInformer, NZDirSummarizer
from rail.core.data import TableHandle, QPHandle
from rail.core.stage import RailStage

For interactive pipeline creation to work, your data must be input as DataHandles, so that it will pass along the appropriate tags to the stages.

# Load up the example healpix 9816 data and read in as DataHandles
from rail.utils.path_utils import find_rail_file
trainFile = find_rail_file('examples_data/testdata/test_dc2_training_9816.hdf5')
testFile = find_rail_file('examples_data/testdata/test_dc2_validation_9816.hdf5')
training_data = TableHandle("training_data", path=trainFile)
test_data = TableHandle("test_data", path=testFile)

inf_nz = NZDirInformer.make_stage(n_neigh=8, hdf5_groupname="photometry", model="nzdir_model.pkl")
inf_nz.inform(training_data)
nzd = NZDirSummarizer.make_stage(leafsize=20, zmin=0.0, zmax=3.0, nzbins=31, model="NZDir_model.pkl", hdf5_groupname='photometry',
                       output='NZDir_samples.hdf5', single_NZ='NZDir_NZ.hdf5')

Inserting handle into data store.  training_data: None, NZDirInformer

Inserting handle into data store.  model: inprogress_nzdir_model.pkl, NZDirInformer

# I don't know why it is necessary to execute this estimate once before saving everything to a pipeline
nzd_res = nzd.estimate(test_data)

Inserting handle into data store.  test_data: None, NZDirSummarizer
Inserting handle into data store.  model: NZDir_model.pkl, NZDirSummarizer
Process 0 running estimator on chunk 0 - 10000
Inserting handle into data store.  single_NZ: inprogress_NZDir_NZ.hdf5, NZDirSummarizer
Inserting handle into data store.  output: inprogress_NZDir_samples.hdf5, NZDirSummarizer
Process 0 running estimator on chunk 10000 - 20000
Process 0 running estimator on chunk 20000 - 20449

Creating a pipeline with 2 process

import ceci
pipe = ceci.Pipeline.interactive()
stages = [inf_nz,nzd]
for stage in stages:
    pipe.add_stage(stage)
pipe.stage_execution_config['NZDirSummarizer'].nprocess=2

pipe.initialize(dict(training_data=trainFile, test_data=testFile) , dict(output_dir='.', log_dir='.', resume=False), None)

(({'NZDirInformer': <Job NZDirInformer>,
   'NZDirSummarizer': <Job NZDirSummarizer>},
  [<rail.estimation.algos.nz_dir.NZDirInformer at 0x7f4070191600>,
   <rail.estimation.algos.nz_dir.NZDirSummarizer at 0x7f4070192170>]),
 {'output_dir': '.', 'log_dir': '.', 'resume': False})

pipe.save('nzdir.yml')

Once the pipeline is saved, we execute it

pr = ceci.Pipeline.read('nzdir.yml')

pr.run()

Executing NZDirInformer
Command is:
OMP_NUM_THREADS=1   python3 -m ceci rail.estimation.algos.nz_dir.NZDirInformer   --input=/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/testdata/test_dc2_training_9816.hdf5   --config=nzdir_config.yml   --model=./nzdir_model.pkl
Output writing to ./NZDirInformer.out

Job NZDirInformer has completed successfully in 3.0 seconds

Executing NZDirSummarizer
Command is:
OMP_NUM_THREADS=1  mpirun -n 2 python3 -m ceci rail.estimation.algos.nz_dir.NZDirSummarizer   --model=./nzdir_model.pkl   --input=/opt/hostedtoolcache/Python/3.10.20/x64/lib/python3.10/site-packages/rail/examples_data/testdata/test_dc2_validation_9816.hdf5   --config=nzdir_config.yml   --output=./NZDir_samples.hdf5   --single_NZ=./NZDir_NZ.hdf5 --mpi
Output writing to ./NZDirSummarizer.out

Job NZDirSummarizer has failed with status 1

*********************************************
Error running pipeline stage NZDirSummarizer.
Failed after 6.0 seconds.

Standard output and error streams in ./NZDirSummarizer.out
*********************************************

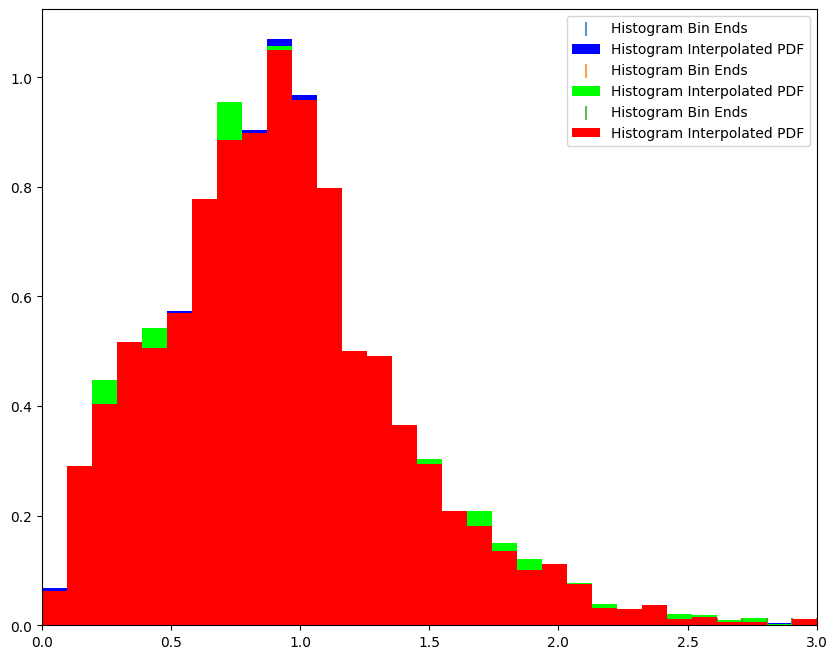

Reading the output

nzd_ens = qp.read('NZDir_samples.hdf5')
nzdir_nz = qp.read("NZDir_NZ.hdf5")

fig, axs = plt.subplots(figsize=(10,8))
nzdir_nz[0].plot_native(axes=axs, fc = [0, 0, 1, 0.01])
nzd_ens[1].plot_native(axes=axs, fc = [0, 1, 0, 0.01])
nzd_ens[4].plot_native(axes=axs, fc = [1, 0, 0, 0.01])
axs.set_xlim(0,3)
axs.legend()

<matplotlib.legend.Legend at 0x7f400fe90310>
